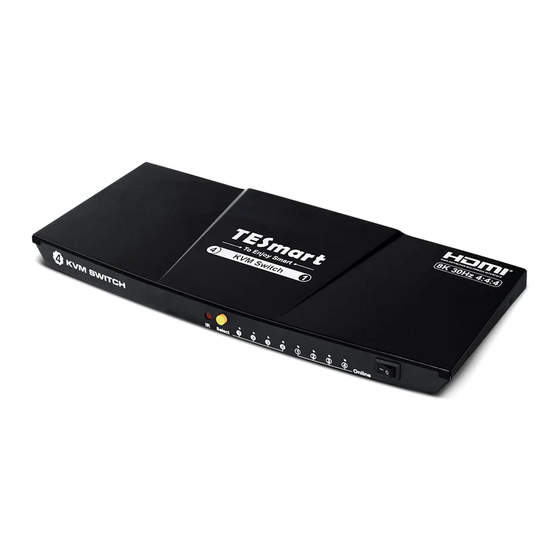

- Page 1 User HDMI 2 . 1 KVM Switch Manual HDMI HKS0401A1S HKS0401A1S English...
- Page 3 English...
- Page 4 If you have any questions, comments or suggestions, please contact us via the following email: support@tesmart.com. Copyright Notice The user manual, compiled by Tesla Elec Technology Co.,Ltd, shall not be duplicated or translated by any person or organizations without written permission.
-
Page 5: Table Of Contents
Contents 1. Safety Tips and Warnings ··································01 10. Operation Method···········································22 2. Battery Description···········································02 10.1 Front Panel Button Switching Method 3. Warranty Information········································03 10.2 IR Remote Control 4. Preface··························································04 10.3 Keyboard Hot Keys 5. Features·························································05 11. Change Hot Key Combination····························27 6. Packing List·····················································06 12. -
Page 6: Safety Tips And Warnings
1. Safety Tips and Warnings Tips: Please read the safety tips and warnings for HDMI KVM Switch comprehensively before use. Use this produce in accordance with its instructions, safety tips and warnings to prevent unnecessary damage to the product and potential dangers to users. Keep the product away from water. -
Page 7: Battery Description
2. Battery Description Tips: By default, the remote control is not equipped with batteries, due to the safety requirements of some express companies. Install AAA dry cells before use. Caution: Improper disposal of the lithium battery may cause an explosion. Do not throw the battery into fire. -
Page 8: Warranty Information
3. Warranty Information We warrant this product as free of defects in material and workmanship for a period of one (1) year from the date of shipment. If during the period of warranty this product proves defective under normal use, we will repair or replace this product, provided that this product has not been subjected to mechanical, electrical, or other abuse or modifications. -
Page 9: Preface
Tips: If you need to control more computers or conduct more complex and professional switching, you can also choose other products of our company. For more details, please visit our official website: www.tesmart.com. -
Page 10: Features
5. Features Using only 1 set of keyboard, mouse and 1 monitor to control 4 PCs Ÿ Support resolution up to 7680x4320@30Hz 4:4:4, also support 3840x2160@120Hz 4:4:4 Ÿ HDMI 2.1 compliant, support to transmit 7680x4320@60Hz 4:4:4 resolution using DSC technology Ÿ... -
Page 11: Packing List
6. Packing List 1 * 4x1 HDMI 2.1 KVM Switch Ÿ 4 * HDMI Cables Ÿ 4 * USB 3.0 Cables Ÿ 1 * IR Remote Control Ÿ 1 * DC 5V Power Adapter Ÿ 1 * User Manual Ÿ Tips: After receipt of the product, please check the packing list carefully to make sure that no components have been lost and no damage to the product has been caused during transportation. -
Page 12: Panel Description
7. Panel Description Name Function IR receiver Receive IR remote signal. Input selection button Select input sources. Input selection status The corresponding LEDs will be lit (blue) to indicate the current selected indicators computer device. USB connection status LEDs will be lit (blue) if the KVM's USB ports are connected to the computers' indicators USB ports. - Page 13 Function Name DC 5V 5V DC power supply. HDMI output Connect to HDMI display for video output. USB 3.0 port Connect to USB 3.0 device. Keyboard and mouse input For USB keyboard and mouse input. 4 PCs can be connected to the KVM at the same time. KVM input ports group Each group contains an HDMI port and a USB port.
-
Page 14: Connection Description
8. Connection Description 8.1 Connection Diagram PC 1 UHD TV PC 3 HDMI Cable USB Type-A HDMI to B Cable Cable Hard disk Printer drive Driver Keyboard Mouse L/R audio PC 4 PC 2 Tips: For your better experience, please use an HDMI 2.1 cable to connect to the display. -
Page 15: Connection Preparation
8.2 Connection Preparation Take into consideration all devices required to be connected and prepare a workbench large Ÿ enough before the connection. Lay out the cables properly to facilitate the layout of power supply as a lot of power sockets Ÿ... -
Page 16: Connection Steps
8.3 Connection Steps 1. Connect PC 1 with 1 HDMI cable and 1 USB 3.0 cable. Use HDMI cable to connect PC1 to the HDMI port on the KVM, use USB Type-A end to connect PC1 and Type-B end to connect the KVM. - Page 17 3. Connect external mouse and keyboard to KVM's keyboard and mouse input port. Tips: For the normal service of hotkeys, we recommend you use the full-key external keyboard with a separate [Scroll Lock] key (as shown above 4. Connect USB device to KVM's USB 3.0 port.
- Page 18 5. Connect KVM's HDMI output port to 1 HDMI display with 1 HDMI cable. 6. Connect external audio device to KVM's L/R out port.
- Page 19 7. Connect the power cable to KVM's DC 5V port and plug it into a power socket. 8. By now, the connection has been completed. Turn on the power supply and the KVM Switch will begin to work.
-
Page 20: Kvm Workbench
8.4 KVM Workbench A workbench with 4x1 HDMI 2.1 KVM Switch successfully connected is shown as below:... -
Page 21: Function Description
9. Function Description 9.1 OSD Description The powerful OSD function of our 4x1 HDMI 2.1 KVM Switch can help you set up KVM faster. It can also match your input sources with appropriate tags to facilitate your management. At the same time, it supports locking KVM to ensure the maximum protection of your information security when you leave your seat. - Page 22 B. Fast Switch Settings Page Input 1 <OFF> SETUP Input 2 <F9> SHORTCUT ONETOUCH Input 3 <NUM 0> LABEL Input 4 <+> LOCK INFO You can set the keys to achieve one-touch switching for each input source on this page. We have built 26 keyboard keys as options for each input source.
- Page 23 C. Input Label Settings Page Input1 Label <PC> SETUP Input2 Label <MAC> ONETOUCH Input3 Label <Laptop> SOURCE LABEL Input4 Label <Game> LOCK INFO On this page, you can add labels to each of your input sources. After adding, each time you switch, the resolution and preset icons of the current input source will appear in the upper left corner of the display.
- Page 24 D. Lock Function Settings Page Lock <ON> SETUP Timeout <Never> ONETOUCH New PIN _ _ _ _ LABEL LOCK LOCK INFO This page is related to the KVM lock function settings. 1. Lock: After enabling the lock function, you can use the hotkey [Scroll Lock] + [Scroll Lock] + [L] to lock the KVM.
- Page 25 any key on the keyboard to wake up the screen, and then enter the PIN to unlock the KVM. 3. New PIN: You can modify the PIN here. The default PIN is 1234. Tips: 1. If you forget your PIN, you can restore the factory default settings to unlock. Double press [Scroll Lock] , then press [r], [e], [t] keys on the keyboard in sequence within 2 seconds to restore the factory default settings.
-
Page 26: Auto Scan Mode Description
9.2 Auto Scan Mode Description Auto Scan can automatically switch the display at regular intervals between the input devices that are powered on and connected to the KVM. As a result, any input devices connected to each port can be monitored without user intervention. Auto scan mode is off by default. -
Page 27: Operation Method
10. Operation Method 10.1 Front Panel Button Switching Method The 4x1 HDMI 2.1 KVM Switch can switch to any input devices at any time with front panel keypad, IR remote control, keyboard hot keys and mouse wheel switch mode. You can choose your favorite switching method according to your personal needs and habits. -
Page 28: Ir Remote Control
10.2 IR Remote Control — Switch to input 1 — Switch to input 2 — Switch to input 3 — Switch to input 4 Tips: Unspecified buttons at above are non-functional. -
Page 29: Keyboard Hot Keys
10.4 Keyboard Hot Keys Use external keyboard hot keys to switch the input source and set up some other functions. à Tips: The keyboard hot keys can only work with external keyboard correctly connected to the keyboard and mouse input port of the KVM. For the use of hot keys, we recommend you use an external keyboard with a separate [Scroll Lock] key. - Page 30 Select port by port number: Scroll Scroll Scroll [Scroll Lock]→[Scroll Lock]→[1]~[4] Lock Lock Lock Turn on/off mouse wheel switching mode: Scroll Scroll Lock Lock [Scroll Lock] →[Scroll Lock] →[F6] Tips: The default setting of mouse wheel switching mode is off. Turn on mouse wheel switching mode by following the operation order above.
- Page 31 Turn on auto scan mode: Scroll Scroll Space Lock Lock [Scroll Lock] →[Scroll Lock] →[Space] Press [Esc] to exit auto scan mode. Tips: The auto scan mode is off by default. You can turn it on with the hotkey command presented above or by setting it on the OSD menu.
-
Page 32: Change Hot Key Combination
11. Change Hot Key Combinations There are two kinds of trigger hot keys in this product, the default is [Scroll Lock] key, and the alternative is the [Right-Ctrl] key. If [Scroll Lock] Key has been used for other functions, you can switch the hot key to [Right-Ctrl] by: Method 1: 10 seconds after powering on the KVM, press and keep holding the [Select] button on the à... -
Page 33: Pass Through Mode Description
12. Pass Through Mode Description 12.1 Introduction of Pass through mode Pass through mode is a built-in function of KVM, which is able to improve keyboard and mouse compatibility and enhance user experience. In the pass through mode, the keyboard and mouse are equivalent to directly connecting to the computer. At this time, you can use more keyboard and mouse functions and special functions that are not supported by traditional KVM. -
Page 34: Keyboard And Mouse Compatible Model List
12.2 Keyboard and mouse compatible model list Tips: The following list is from the most representative models of keyboard and mouse that have been tested in the laboratory, mainly from manufacturers with a high market share. Model Brand Model Brand Model Brand Brand... - Page 35 31.00.0436-V002...
- Page 36 To Enjoy Smart HKS0401A1S Tesla Elec Technology Co.,Ltd WEEE-Reg.-Nr. DE 66784279...
