- Page 1 User 4x2 HDMI + DP Dual Monitor KVM Switch Manual HDK0402A1U HDK0402A1U English...
- Page 3 English...
- Page 4 If you have any questions, comments or suggestions, please contact us via the following email: support@tesmart.com. Copyright Notice The user manual, compiled by Tesla Elec Technology Co.,Ltd, shall not be duplicated or translated by any person or organizations without written permission.
-
Page 5: Table Of Contents
Contents 1. Safety Tips and Warnings ··································01 10.2 IR Remote Control 2. Battery Description···········································02 10.3 Keyboard Hot Keys 3. Warranty Information········································03 11. Change Hot Key Combination···························21 4. Preface··························································04 12. Pass Through Mode Description························22 5. Features·························································05 12.1 Introduction of Pass Through Mode 6. -
Page 6: Safety Tips And Warnings
1. Safety Tips and Warnings Tips: Please read the safety tips and warnings for dual monitor KVM Switch comprehensively before use. Use this produce in accordance with its instructions, safety tips and warnings to prevent unnecessary damage to the product and potential dangers to users. Keep the product away from water. -
Page 7: Battery Description
2. Battery Description Tips: By default, the remote control is not equipped with batteries, due to the safety requirements of some express companies. Install AAA dry cells before use. Caution: Improper disposal of the lithium battery may cause an explosion. Do not throw the battery into fire. -
Page 8: Warranty Information
3. Warranty Information We warrant this product as free of defects in material and workmanship for a period of one (1) year from the date of shipment. If during the period of warranty this product proves defective under normal use, we will repair or replace this product, provided that this product has not been subjected to mechanical, electrical, or other abuse or modifications. -
Page 9: Preface
The keyboard and mouse pass through mode greatly improves the KM compatibility. Tips: If you need to control more computers or conduct more complex and professional switching, you can also choose other products of our company. For more details, please visit our official website: www.tesmart.com. -
Page 10: Features
5. Features Using 2 monitors, 1 set of keyboard and mouse to control 2 computers Ÿ Support resolution up to 3840x2160@60Hz 4:4:4 Ÿ Support 2 display modes Ÿ Support Unix/Windows/ Debian/ Ubuntu/Fedora/ MacOS X/ Raspbian/ Ubuntu for Raspberry Ÿ Pi and other Linux based systems With extra USB 2.0 port, it is possible to connect bar code scanner, USB hard device or other USB Ÿ... -
Page 11: Packing List

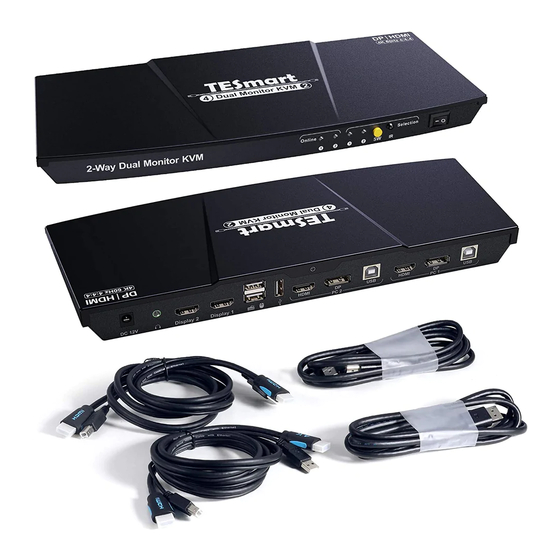

6. Packing List 1 * 4x2 HDMI + DP Dual Monitor KVM Switch Ÿ 2 * KVM Cables Ÿ 2 * DP Cables Ÿ 1 * IR Remote Control Ÿ 1 * DC 12V Power Adapter Ÿ 1 * User Manual Ÿ... -
Page 12: Panel Description
7. Panel Description 7.1 Panel Description Name Function Name Function Input USB connection LEDs will be lit (blue) if the The corresponding LEDs will be selection status KVM's USB ports are connected lit (blue) to indicate the current status indicators to the computers' USB ports. - Page 13 Name Function DC 12V 12V DC power supply. L/R audio output Analog audio output, connect to speaker. HDMI outputs Connect to 2 HDMI displays for video output. Keyboard and mouse input For USB keyboard and mouse input. Standard USB 2.0 port Connect to USB 2.0 device.
-
Page 14: Connection Description
8. Connection Description 8.1 Connection Diagram PC 2 PC 1 Monitor B Monitor A HDMI Cable USB-A to Cable USB-B Cable Barcode Printer Keyboard Mouse Scanner drive Speaker... -
Page 15: Connection Preparation
8.2 Connection Preparation Take into consideration all devices required to be connected and prepare a workbench large Ÿ enough before the connection. Lay out the cables properly to facilitate the layout of power supply as a lot of power sockets Ÿ... -
Page 16: Connection Steps
8.3 Connection Steps 1. Connect PC1 with 1 KVM cable and 1 DP cable, connect each end to PC1 and to the corresponding ports group on the KVM, use USB-A end to connect PC1 and USB-B end to connect the KVM. Connect PC2 in the same way. 2. - Page 17 3. Connect USB 2.0 device to KVM's standard USB 2.0 port. 4. Connect KVM's HDMI output ports to 2 HDMI displays with 2 HDMI cables.
- Page 18 5. Connect external audio device to KVM's L/R out port. 6. Connect the power cable to KVM's DC 12V port and plug it to a power socket. 9. By now, the connection has been completed. Turn on the power supply and the KVM Switch will begin to work.
-
Page 19: Kvm Workbench
8.4 KVM Workbench A workbench with 4x2 HDMI + DP Dual Monitor KVM Switch successfully connected is shown as below:... -
Page 20: Function Description
9. Function Description 9.1 Display Mode Description The 4x2 HDMI + DP dual monitor KVM Switch support 2 display modes. You can choose to implement 2-screen extended display or duplicate display or display different PCs on 2 monitors. Display Mode 1: Display the same PC Duplicate displays Extend displays Display A... - Page 21 Display Mode 2: Display the different PCs Display mode 2 also supports swapping the images of 2 monitors. Tips: 1. Please refer to Page 20 for how to switch to display Display A Display B mode 2 and swap images. 2.
-
Page 22: Operation Method
10. Operation Method 10.1 Front Panel Button Switching Method The 4x2 HDMI + DP Dual Monitor KVM Switch can switch to any input devices at any time with front panel keypad, IR remote control, keyboard hot keys and mouse wheel switch mode. You can choose your favorite switching method according to your personal needs and habits. -
Page 23: Ir Remote Control
10.2 IR Remote Control Display Mode 1 Display Mode 2 Cyclically select PC 1 and PC 2 Switch to display mode 1 Switch to display mode 2 Swap the desktops of 2 monitors Keyboard and mouse focus on Switch to PC 1 the desktop of PC 1 Keyboard and mouse focus on Switch to PC 2... -
Page 24: Keyboard Hot Keys
10.3 Keyboard Hot Keys Use external keyboard hot keys to switch the input source or set up some other functions.. à Tips: The keyboard hot keys can only work with external keyboard correctly connected to the keyboard and mouse input port of the KVM. For the use of hot keys, we recommend you use an external keyboard with a separate [Scroll Lock] key. - Page 25 Switch to display mode 2: Keyboard and mouse focus on the desktop of PC 1 in display mode 2: Scroll Scroll Scroll Lock Lock Lock [Scroll Lock]→[Scroll Lock]→[3] Keyboard and mouse focus on the desktop of Scroll Scroll Scroll PC 2 in display mode 2 (i.e. swap imaes): Lock Lock Lock...
-
Page 26: Change Hot Key Combination
11. Change Hot Key Combinations There are two kinds of trigger hot keys in this product, the default is [Scroll Lock] key, and the alternative is the [Right-Ctrl] key. If [Scroll Lock] Key has been used for other functions, you can switch the hot key to [Right-Ctrl] by: Method 1: 10 seconds after powering on the KVM, press and keep holding the [Select] button on the à... -
Page 27: Pass Through Mode Description
12. Pass Through Mode Description 12.1 Introduction of Pass through mode Pass through mode is a built-in function of KVM, which is able to improve keyboard and mouse compatibility and enhance user experience. In the pass through mode, the keyboard and mouse are equivalent to directly connecting to the computer. At this time, you can use more keyboard and mouse functions and special functions that are not supported by traditional KVM. - Page 28 12.2 Keyboard and Mouse Compatible Model List Tips: The following list is from the most representative models of keyboard and mouse that have been tested in the laboratory, mainly from manufacturers with a high market share. Model Brand Model Brand Model Model Model...
- Page 29 31.00.0442-V002...
- Page 30 To Enjoy Smart HDK0402A1U Tesla Elec Technology Co.,Ltd WEEE-Reg.-Nr. DE 66784279...
