DMP Electronics 265HINT Installation Manual

265HINT INTERNATIONAL
CELLULAR COMMUNICATOR
Installation Guide

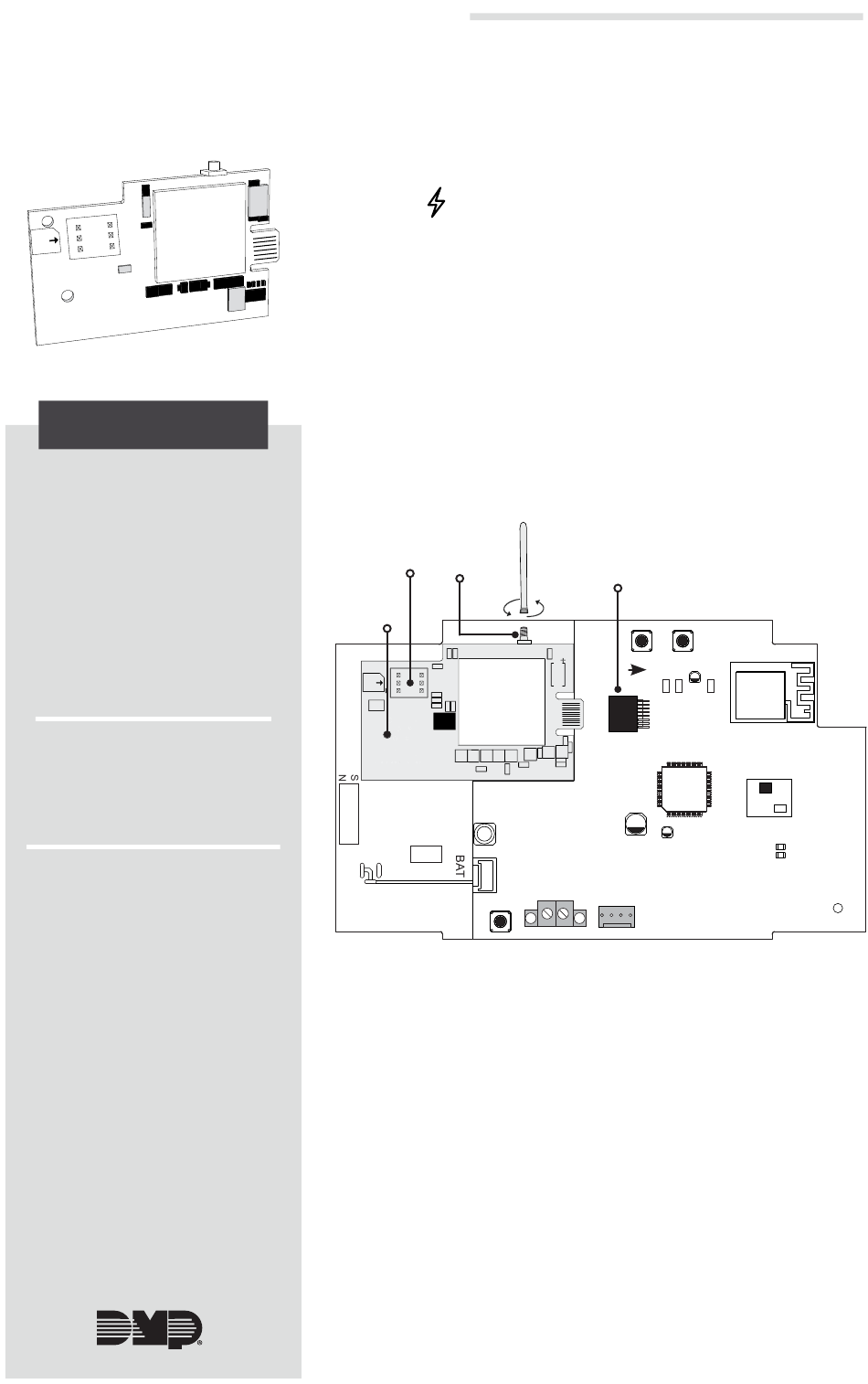

Figure 1: 265HINT PCB
DESCRIPTION
The 265HINT Cellular
Communicator provides
a fully-supervised alarm
communication path over the
HSPA+ network.
The 265HINT is installed on
XTLplus Series panels and
TM
powered by the panel so no
additional enclosure, power
supply, or battery back-up is
needed.
Compatibility
All DMP XTLplus Series panels
with Version 171 or higher.
What is Included?
• 265HINT Cellular
Communicator
• External Antenna
• International 4G
Nano SIM Card
1

INSTALL THE 265HINT

Caution: Touch grounded metal to discharge
static before handling the XTLplus.
1. Place the external antenna onto the
265HINT SMA connector, and then twist the
antenna until it is securely tightened.
2. Insert the SIM card into the SIM card holder
on the 265HINT.
3. Slide the 265HINT into the XTLplus
eight-pin CELL MODULE connector,
keeping it parallel to the XTLplus.
4. Align the standoff hole in the 265HINT with
the standoff on the XTLplus and snap it into
place. See Figure 2.
Antenna
SMA
SIM Card
Connector
Holder
Standoff
Hole
Figure 2: Install the 265HINT on the XTLplus
Eight-Pin CELL MODULE
Connector
LOAD RESET
PROG
+ DC -
R B
