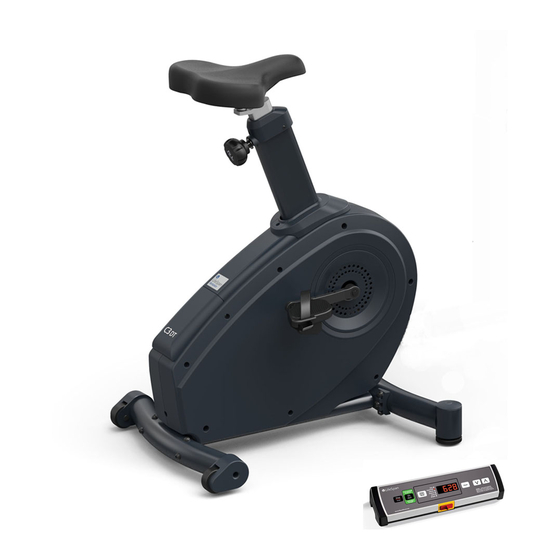

LifeSpan Workplace DT3 Owner's Manual

Console desk bike
Hide thumbs Also See for Workplace DT3:
Table of Contents

Advertisement

Quick Links

Download this manual
Console
Owner's Manual
DT3
Desk Bike
Owner's Manual
C3-DT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Workplace DT3 and is the answer not in the manual?

Questions and answers

Related Manuals for LifeSpan Workplace DT3

Summary of Contents for LifeSpan Workplace DT3

  • Page 1 Console Owner’s Manual Desk Bike Owner’s Manual C3-DT...
  • Page 2 In the United States and Canada you can also call (877) 654-3837 and choose option 4. Neither LifeSpan Fitness nor its representatives can accept responsibility for any damages or injury incurred as a result of information presented in this manual except under the terms...

  • Page 3: Table Of Contents

    Table of Contents Welcome Getting Started Warranty Registration Specifications Safety Assembling Your C3-DT Desk Bike Exploded View & Hardware Assembly Instructions General Maintenance Moving Troubleshooting Assembly Instructions Connecting your C3 Desk Bike to the DT3 console Desk Bike Operations Console Overview Starting the Desk Bike Innovative Features Troubleshooting...

  • Page 4: Warranty

    In order to insure our product warranty and to ensure the safe and efficient operation of your LifeSpan product, only authorized parts can be used. The warranty is void if any parts other than those provided by LifeSpan are used. Exclusions and Limitations: •...

  • Page 5: Specifications

    Specifications C3-DT Desk Bike Mechanical and Performance Seat Molded, contoured seat Seat Adjustment Height - 19 positions Resistance System Magnetic - Eddy Current Pedals Self balancing Flywheel Weight 18 lbs (8.1 kg) Max. User Weight 400 lbs (181.4 kg) Dimensions 22”...
  • Page 6 • Use this product for its intended use as described in this Owner’s Manual. Do not use attachments that are not recommended by LifeSpan. Children and Pets • Keep children from playing on your desk bike at all times.
  • Page 7 Bike Assembly...

  • Page 8: Assembling Your C3-Dt Desk Bike

    Assembling Your C3-DT Desk Bike Exploded View Prior to starting the assembly process take all of the parts out of the box. Remove plastic bags and lay them out on the floor to become familiar with the components. Since your desk bike is a heavy piece of equipment it is recommended you use two people during assembly and follow these...
  • Page 9 Assembling Your C3-DT Desk Bike Hardware Included Item# Part Description Main Frame Front Support Rear Support Seat Post Seat Right Pedal Left Pedal Hardware Bag Contents Item# Qty. Part Description M8 x 70L Bolt M8 Curved Washer Multi-Wrench - 10, 13, 14, 15, 17, 22 mm Allen Wrench - 5mm M8 x 70L Bolt...
  • Page 10 Assembling Your C3-DT Desk Bike Step 1: Remove Components from Box Remove plastic bags and lay all parts out on the floor. Locate the hardware bag. Step 2: Rear Support Assembly Place the Main Frame Assembly (1) on a solid level surface. It may be necessary to prop the back of the frame up slightly to give clearance for step B.
  • Page 11 Assembling Your C3-DT Desk Bike Step 3: Seat Assembly Pull on the Seat Post Adjustment Knob (M) to release the locking pin and slide the Seat Post (4) down into the Seat Post Tube (L). When the desired height is reached, release the Seat Post Adjustment Knob (M) to allow the locking pin to engage.
  • Page 12 Assembling Your C3-DT Desk Bike Step 5: Front Support Assembly A. Adjust the Seat Post so it is at the highest setting. Tilt the bike back until it is resting on the Seat and the Rear Support Assembly (as shown below.) C.
  • Page 13 Assembling Your C3-DT Desk Bike Step 6: Right and Left Pedal Assembly A. Identify which pedal goes on the right side and which goes on the left side by locating the “R” on the top of the Right Pedal (6) and the “L” on the top of the Left Pedal (7).
  • Page 14 Assembling Your C3-DT Desk Bike Leveling HINT Your C3-DT bike comes with two Leveling If the Left Rear Foot is not Feet (P) in the front and two Stationary Feet solid on the floor, turn the (Q) in the rear. Gently rock the bike back Right Front Foot counter- and forth to see if any of the feet are not clockwise to tilt the Left...
  • Page 15 Assembling Your C3-DT Desk Bike Seat Height Adjustments Your C3-DT bike allows for 19 positions of height adjustment. To adjust the seat, pull the Seat Post Adjustment Knob (M) out and adjust the seat height to the desired position. Once the desired position is reached, release the Seat Post Adjustment Knob.

  • Page 16: General Maintenance

    Maintenance and TIps General Maintenance Keep the desk bike clean and dry. It is a good idea to wipe the desk bike down after each workout. If the unit is not going to be used for any extended period of time it is a good idea to unplug the unit and store in a clean environment.

  • Page 17: Troubleshooting

    Solution: Try using another outlet or testing somethig else at the outlet being used to make sure there is power at the outlet. Also check the console wire harness tomake sure it has not come loose. If still a probel, contact LifeSpan Customer Service.

  • Page 18: Assembly Instructions

    Assembly Instructions After assembling the bike, roll it to the desired location. Plug the console connector into the connector coming from the bottom of the bike. Be sure to screw the two connectors together with the attached thumb screws. NOTE: Do not plug the power cord into the equipment until the console is connected.

  • Page 19: Desk Bike Operations

    Desk Bike Operations...

  • Page 20: Starting The Desk Bike

    Desk Bike Console Overview Console Power Buttons On/Start: If the console is in sleep mode, press and hold this button for three seconds to turn the console on. Once the console is turned on, press to start the console function. Stop: Stops the bike, pausing your use.
  • Page 21 Desk Bike Innovative Features Personal Settings – there are several features that can be set using our Personal Settings feature to tailor LifeSpan desk bike to your specific preferences. These include: • Resume Level: after pressing pause and returning to the desk bike the default resistance will be 0, which is the normal starting speed.
  • Page 22 Desk Bike Troubleshooting This desk bike has been designed and manufactured to be reliable and easy to use. However, if you have a problem, these troubleshooting steps may help you find the cause. Problem: The console is erratic or not lighting up. Solution: Check to make sure the bike is properly plugged in.
  • Page 23 Desk Bike Personal Settings Press and hold "STOP" and " " for three seconds to enter Settings mode. F001 should show up on the display. Press the arrows to move through the various settings. Press Enter to choose a setting to change. Press the arrows to move through the various choices for that setting.
  • Page 24 C3-DT3 Desk Console /Bike LifeSpan Fitness P.O. Box 981316 Park City, Utah 84098-1316 Phone: 877.654.3837 www.LifeSpanFitness.com Version 3.1...

This manual is also suitable for:

Workplace c3-dtWorkplace c3-dt3
