Evaluation Board for DC

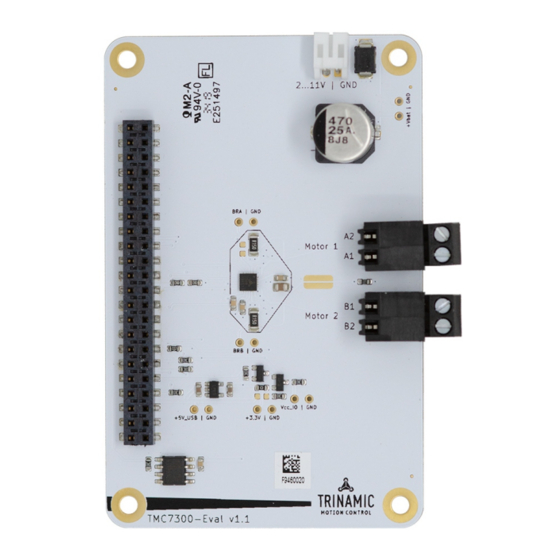

TMC7300-EVAL Evaluation Board
Document Revision V1.0 • 2019-NOV-28
The TMC7300-EVAL allows evaluation of the TMC7300-LA low voltage DC motor driver in combina-
tion with the TRINAMIC evaluation board system, or as stand-alone-board. It uses the standard
schematic and offers several options in order to test different modes of operation.
Applications
• IoT & Handheld devices
• Battery operated equipment
• Printers, POS
Simpli ed Block Diagram
©2019 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at:
www.trinamic.com
Read entire documentation.
• Miniature 3D Printers
• Toys
• O ce and home automation
EVALUATION BOARD
Features
• 2 DC motors with up to 2A current
• Single DC motor with up to 2.4A
current
• Supply Voltage 2V (1.8V). . . 11V DC
• Standby < 50nA typical current draw
• UART for advanced con guration
and control
• Parallel operation for single DC mo-
tor
• Motor load feedback
• Full protection and diagnostics
• CCTV, Security
• HVAC
• Mobile medical devices

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TMC7300-EVAL and is the answer not in the manual?

Questions and answers

Related Manuals for Trinamic TMC7300-EVAL

Summary of Contents for Trinamic TMC7300-EVAL

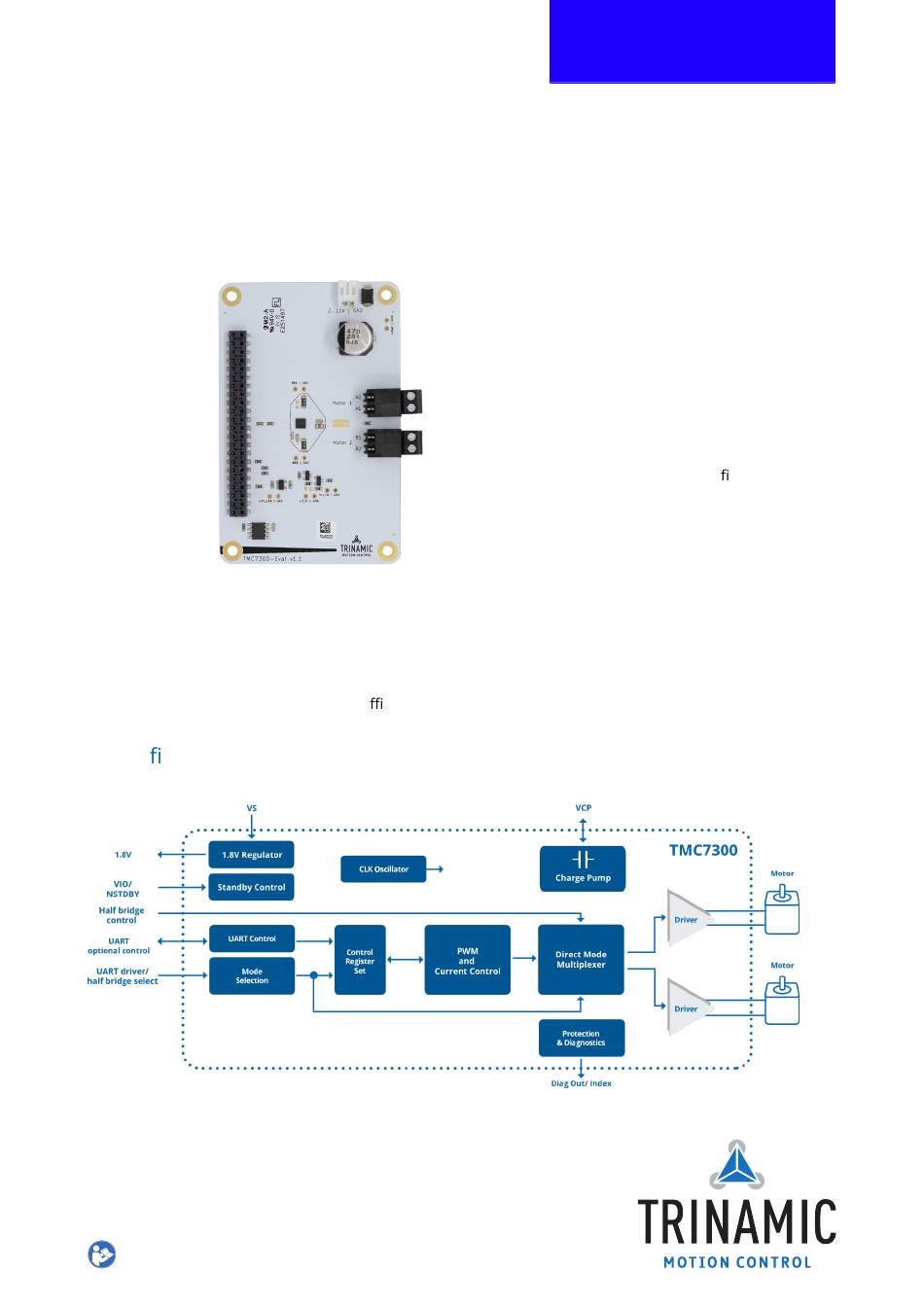

  • Page 1 TMC7300-EVAL Evaluation Board Document Revision V1.0 • 2019-NOV-28 The TMC7300-EVAL allows evaluation of the TMC7300-LA low voltage DC motor driver in combina- tion with the TRINAMIC evaluation board system, or as stand-alone-board. It uses the standard schematic and offers several options in order to test different modes of operation.

  • Page 2: Table Of Contents

    TMC7300-EVAL Evaluation Board • Document Revision V1.0 • 2019-NOV-28 2 / 10 Contents 1 Getting Started 1.1 First Start-Up ..........

  • Page 3: Getting Started

    TMC7300-EVAL Evaluation Board • Document Revision V1.0 • 2019-NOV-28 3 / 10 1 Getting Started You need Precautions • TMC7300-EVAL • Do not mix up connections or short-circuit pins. • Landungsbruecke with latest rmware. (The • Avoid bundling I/O wires with motor wires.

  • Page 4: First Start-Up

    3. Verify that the Landungsbruecke is using the latest rmware version. The rmware version is shown in the connected device tree. The latest o cial rmware releases are available from Trinamic’s website. Incremental updates (nightly builds) are available from Trinamic’s public GitHub repositories.
  • Page 5 TMC7300-EVAL Evaluation Board • Document Revision V1.0 • 2019-NOV-28 5 / 10 Figure 3: Landungsbruecke Dialogue ©2019 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany Terms of delivery and rights to technical change reserved. Download newest version at www.trinamic.com...

  • Page 6: Hardware Information

    TMC7300-EVAL Evaluation Board • Document Revision V1.0 • 2019-NOV-28 6 / 10 2 Hardware Information All design les for our evaluation boards are available for free. We offer the original ECAD les (Eagle, Altium, or PADS), Gerber data, the BOM, and PDF copies. Please check schematics for Jumper settings and input/output connector description.

  • Page 7: Evaluation Features In The Tmcl-Ide

    3.1 Tree View and Control Tools The TMCL-IDE offers a set of tools to control and interact with the TMC7300-EVAL. The tree view as shown below allows access to each of these tools. The enable button brings the TMC7300 into standby mode.

  • Page 8: Chipclick

    3.2 ChipClick To con gure the control pins for the TMC7300-EVAL, open the ChipClick tool by clicking the appropriate entry in the tool tree. To view a description of a pins possible con gurations, hover the mouse over the pin in the graphical view.
  • Page 9 TMC7300-EVAL Evaluation Board • Document Revision V1.0 • 2019-NOV-28 9 / 10 Figure 6: Register browser of a TMC7300 (similar for other ICs). ©2019 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany Terms of delivery and rights to technical change reserved.

  • Page 10: Revision History

    TMC7300-EVAL Evaluation Board • Document Revision V1.0 • 2019-NOV-28 10 / 10 4 Revision History 4.1 Document Revision Version Date Author Description 2019-NOV-28 Initial release. Table 1: Document Revision ©2019 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany Terms of delivery and rights to technical change reserved.
