MOD-6003 QUEEN BED

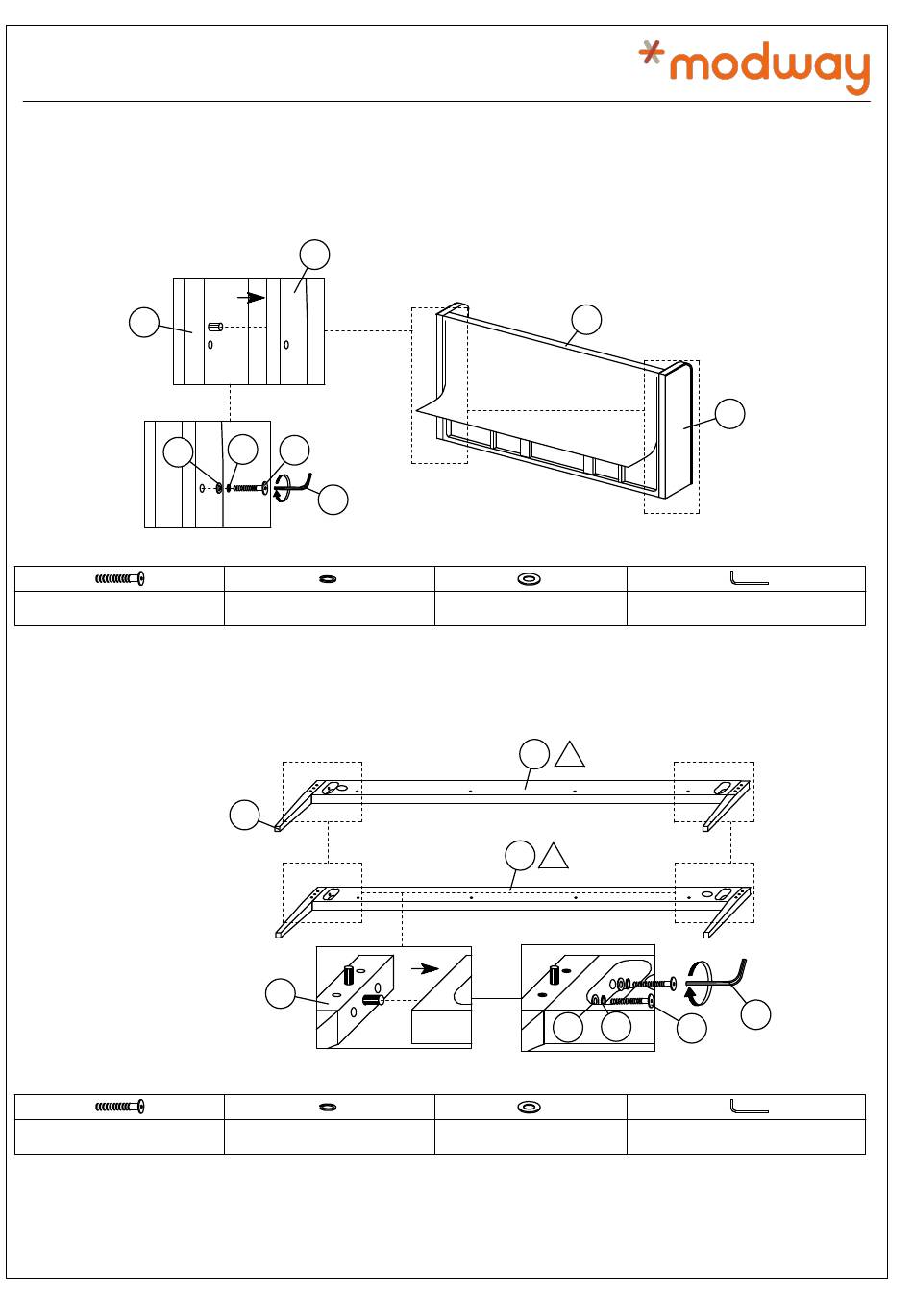

STEP 2
2.1 Insert and secure the headboard wing (B) to the headboard (A) using hardware parts
4,3,1 and 8. Repeat the same for other side of headboard wing.
(Note : Don't screw tied).
STEP A
B
STEP B
4
1. JCBC BOLT M6 x 45 x 4pcs
2.2 Insert and secure the leg (H) to the side rail (E) using hardware parts 2,5,11 and9.
Repeat the same for other side of leg.
2. JCBB BOLT M8 x 50 x 8pcs
A
3
1
8
SPRING WASHER M6
x 4pcs
3.
H
STEP A
H
SPRING WASHER M8
x 8pcs
5.
A
FLAT WASHER M6
x 4pcs
4.
E
R
E
L
STEP B
5
11
FLAT WASHER M8
x 8pcs
11.
B
8. ALLEN KEY (BALL SHAPE) M4 x 1pc
9
2
9. ALLEN KEY (BALL SHAPE) M5 x 1pc
