modway MOD-6045 Quick Start Manual

MOD-6045, MOD-6046

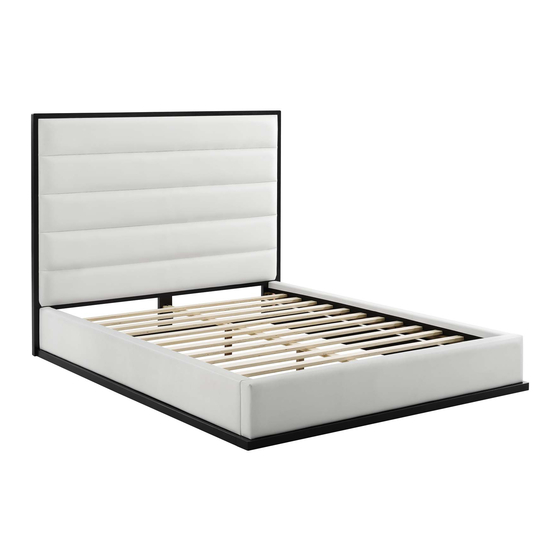

Thank you for purchasing the MODWAY BED ！
Before you start, here are some helpful advice:
1 . We suggest you spend a short time reading through this leaflet and then follow the simple step by step
instructions.
2 . Owing to the size and weight of the bed, we recommend that it is assembled by two adults, on a carpeted or
padded area, in the room that it is intended for. Approximate assembly time: 20 minutes.
.
3 Please do not use any tools other than those provided or recommended in these instructions.
4 . Please do not throw away any of the packaging or the instruction until you have checked all the components
and hardware and the furniture is fully assembled.
5 . Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten
the components from time to time, so please save the tools that have been provided.
6 . Please keep all small pieces out of reach of children.
Compenents :
1 - HEADBOARD
2 -
FOOTBOARD
3 - SIDERAIL
4 -
CENTER SUPPORT
5 -
SUPPORT LEG
6 -
SUPPORT BAR
7 - BED SLAT
Customer Service 908-368-1025 www.modway.com
x 1
x 1
x 2
x 1
x 3
x 2
x 13
Hardware:
A
B
C
D
E
F
G
H
7
3
4
6 5
5
2
JCBC BOLT M6 x 40
JCBB BOLT M8 x 25
WOOD SCREW M4 X 32mm
ADJUSTER
ALLEN KEY (BALL SHAPE) M4
ALLEN KEY M5
FLAT WASHER
SPRING WASHER
1
6
5
3
9 PCS
8 PCS
6 PCS
3 PCS
1 PC
1 PC
8 PCS
8 PCS
Page 1/3
