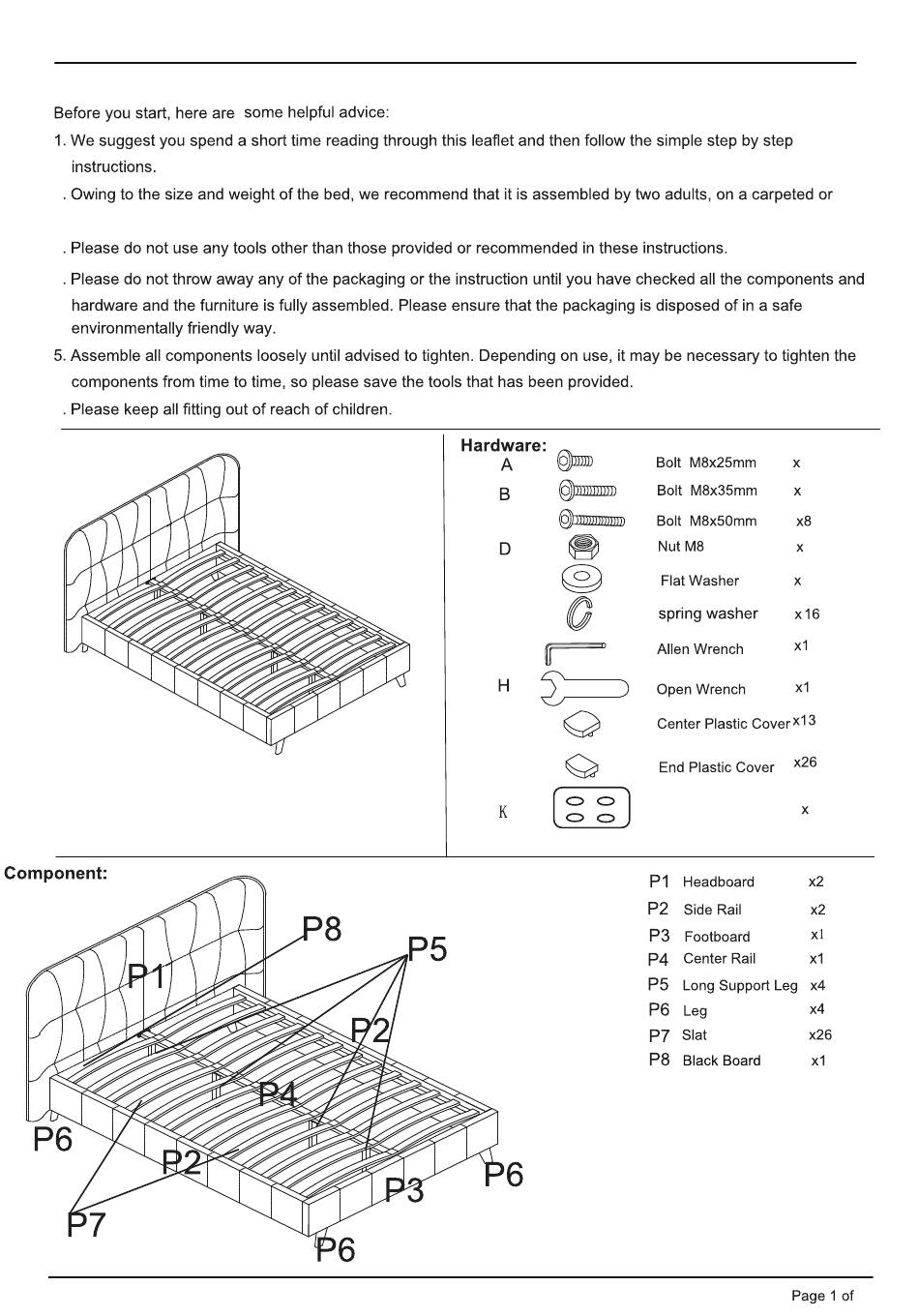

- Page 1 QUEEN BED padded area, in the room that it is intended for. Approximately assembly time:45 minutes. Metal Connector...
- Page 2 QUEEN BED Place upside down on a carpeted or padded. Headbaord (P1) 2 pieces of Connect two half of Headbaord (P1) by using Metal Connectors (K). Secure by using 8 pieces of Flat Washer (E) and 8 pieces of Bolts (B) as shown .
- Page 3 QUEEN BED as shown. Attach Legs (P6) into Headbaord (P1) and Footboard (P3) Secure by using 8 pieces of Flat Washer (E) and Bolts (A). Allen Wrench (G) to tighten tightly. Bolts (A) Spring Washer (F)/ / Flat Washer (E) Insert 8 pieces Bolts (A) into...
- Page 4 QUEEN BED by using Attach 1 piece of Nuts (D) Support Legs (P5) Center Rail (P4) 2 pieces of 2 pieces of Bolts (B) and as shown. Nuts (D) until secure. Allen Wrench (G) and Open Wrench (H) to tighten Bolts (B) and Repeat the same step for the remaining 3 pieces of Support Legs (P5) .
- Page 5 QUEEN BED Step 7: Insert 2 pieces of Slat (P7) into 2 pieces of End Plastic Covers (J) and 1 piece of Center Plastic Cover (I) as shown. Then insert the assembled Center Plastic Cover (I) into the holes on Center Rail (P4) , into the holes on and the assembled End Plastic Cover (J)
