modway MOD-6007 Quick Start Manual

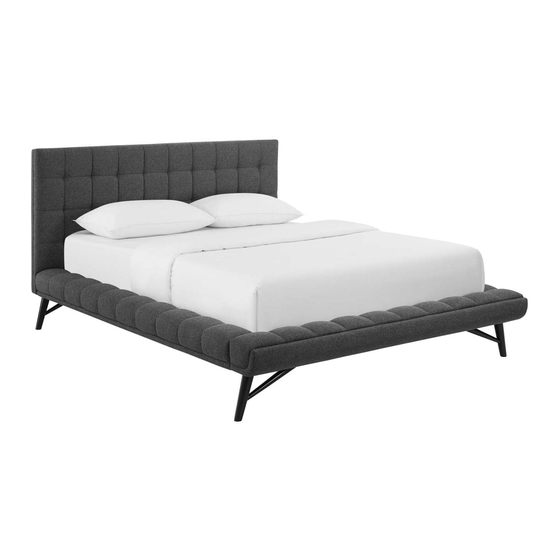

MOD - 6007 / 6008 QUEEN BED
Thank you for purchasing the MODWAY BED!
Before you start, here are some helpful advice:
1. We suggest you spend a short time reading through this leaflet and then follow the simple step instructions.
2. Owing to the size and weight of the bed, we recommend that it is assembled by two adults, on a carpeted or
padded area, in the room that it is intended for. Approx assembly time: 30 minutes.
3. Please do not use any tools other than those provided or recommended in these instructions.
4. Please do not throw away any of the packaging or the instruction until you have checked all the components and
hardware and the furniture is fully assembled. Please ensure that the packaging is disposed of in a safe
environmentally friendly way.
5. Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten the
components from time to time, so please save tools that have been provided.
6. Please keep all fitting out of reach of children.
Component:
A. HEADBOARD x 1
B. FOOTBOARD x 1
C.
SIDE RAIL (L&R) x 2
D. CENTER RAIL x 1
E. CENTER SUPPORT LEG x 3
F. CENTER SUPPORT x 2
G. BED SLAT x 26
H. LEG x 4
Hardware:
1
2
3
4
5
6
7
8
9
10
11
F
D
E
H
JCBC BOLT M6 x 30
JCBB BOLT M8 x 70
FLAT WASHER M6
SPRING WASHER M6
FLAT WASHER M8
SPRING WASHER M8
WOOD SCREW M3.5 x 16mm
BED SLAT SIDE FITTER
BED SLAT CENTER FITTER
ALLEN KEY (BALL SHAPE) M4
ALLEN KEY (BALL SHAPE) M5
G
B
20 PCS
2 PCS
20 PCS
20 PCS
2 PCS
2 PCS
8 PCS
26 PCS
13 PCS
1 PC
1 PC
A
C
01 of 05
