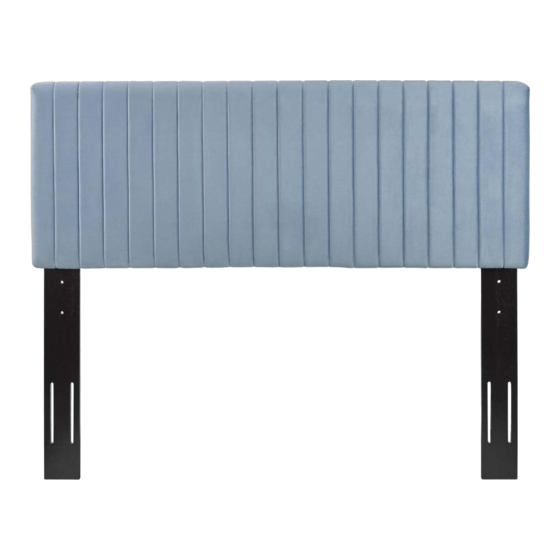

MOD 6095, MOD 6096
Thank you for purchasing the MODWAY BED ！
Before you start, here is some helpful advice:
.
1
We suggest you spend a short time reading through this leaflet and then follow the simple step by step
instructions.
2
.
Owing to the size and weight of the bed, we recommend that it is assembled by two adults, on a carpeted or
padded area, in the room that it is intended for. Approx assembly time: 20 minutes.
3
.
Please do not use any tools other than those provided or recommended in these instructions.
4
.
Please do not throw away any of the packaging or the instruction until you have checked all the components and
hardware and the furniture is fully assembled.
5
.
Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten the
components from time to time, so please save the tools that has been provided.
6
.
Please keep all small pieces out of reach of children.
COMPONENT
1- HEADBOARD
2- LEG
3- BED FRAME
Customer Service 908-368-1025 www.modwayfurniture.com
Hardware for Headboard
A
B
C
Hardware for Metal Bed Frame
D
E
F
G
H
I
2
JCBB M8 x 45MM
FLAT WASHER
M5 ALLEN KEY
JCBB M8 x 45MM
JCBB M8 x 60MM
FLAT WASHER
SPRING WASHER
HEX NUT 5/16"
12.8
SPANNER
1
2
3
x4
x4
x1
x4
x4
x8
x4
x4
x1
Page 1/2
Advertisement
Table of Contents
Related Manuals for modway MOD 6095
Summary of Contents for modway MOD 6095
- Page 1 MOD 6095, MOD 6096 Thank you for purchasing the MODWAY BED ！ Before you start, here is some helpful advice: We suggest you spend a short time reading through this leaflet and then follow the simple step by step instructions.
- Page 2 MOD 6095, MOD 6096 STEP 1: Place Headboard (1) and Leg (2) on a carpeted or padded area as shown. Attach Legs (2) into Headboard (1) by inserting Flat Washer (B) and JCBB 45mm Bolt (A) into the holes on the back of Leg (2) and Headboard (1). Tighten with Allen Wrench (C).
