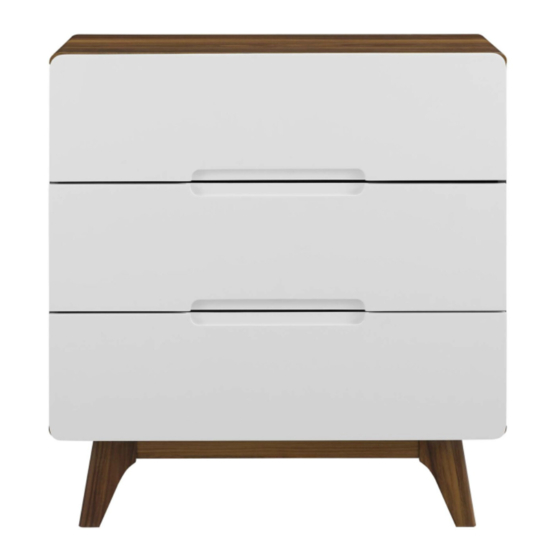

modway CHEST OF DRAWERS MOD-6074 Assembly Instructions Manual

MOD-6074
CHEST OF DRAWERS
Thank you for purchasing the
Before you start, here are some helpful advice:
1.We suggest you spend a short time reading through this leaflet and then follow the simple step-by-step
instructions.
2.Owing to the size and weight of the chest of drawers, we recommend that it is assembled by two adults,
on a carpeted or padded area, in the room that it is intended for. Approximate assembly time: 60 minutes.
3.Please do not use any tools other than those provided or recommended in these instructions.
4.Please do not throw away any of the packaging or instructions until you have checked all the components and
hardware and the furniture is fully assembled.
5.Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten the
components from time to time, so please save the tools that have been provided.
6.Please keep all pieces out of reach of children.

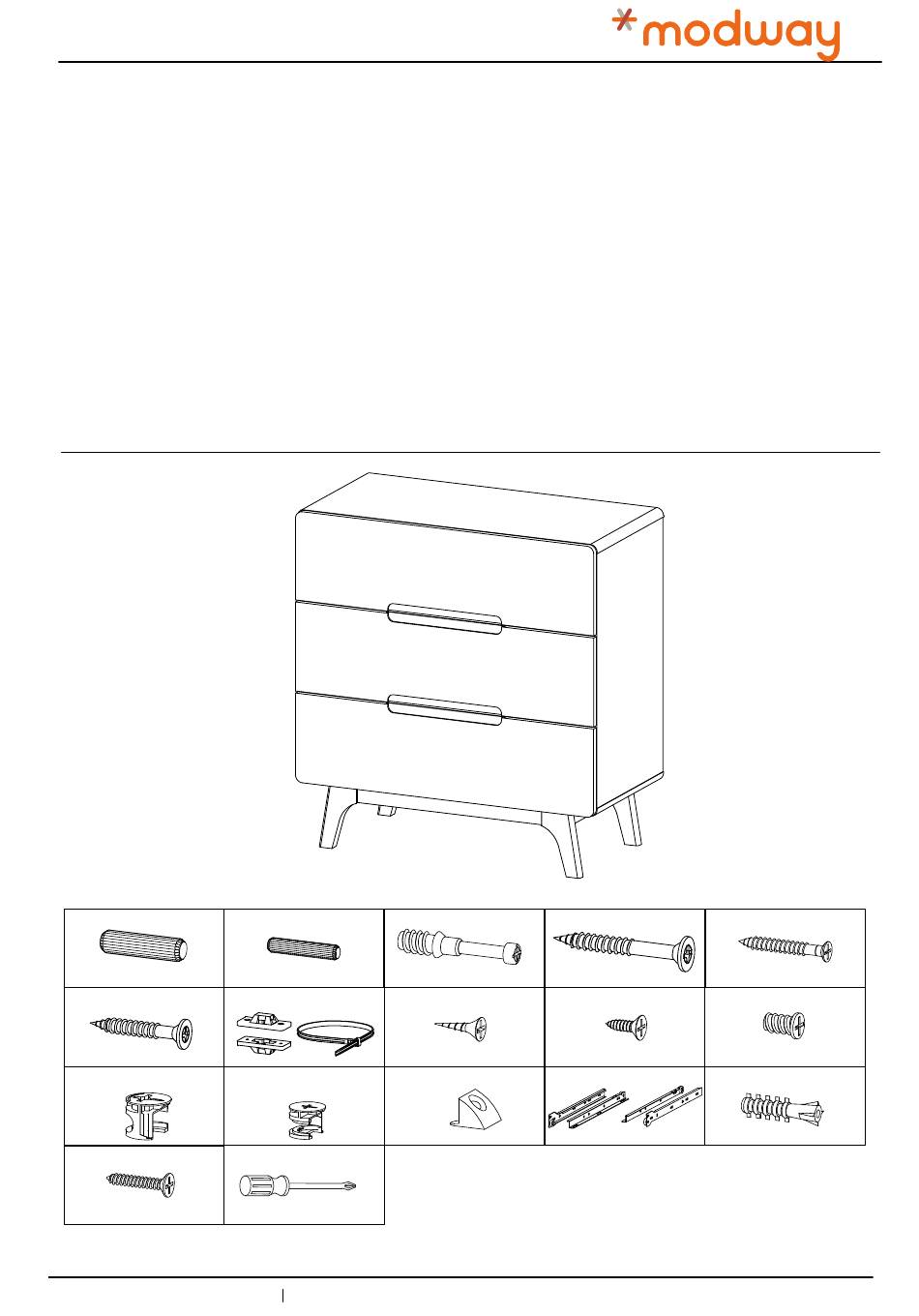

Hardware :
A) B)
Dowel Big/Wood
Ø 8 x 30 mm x 34 Ø 6 x 30 mm
F) G)
Screw/Metal
M 12 x 35 mm x 6
K) L)
CamLock Big/Metal
x 14 Ø 12 mm
Ø 15 mm
P)
Q)
Screw/Metal
x 4
M 3.5 x 32 mm
Customer Service 908-368-1025︱www.modway.com
MODWAY CHEST OF DRAWERS!
C)
Dowel Small/Wood
x 12 Ø 6 x 35 mm
H)
Cable Ties / Plastic
x 2 M 3.5 x 15.5 mm
M)
CamLock Small/Metal
x 12
9 x 14 x 10 mm
x 1
Screwdriver (Not Include)
D)
Cambolt/Metal Screw/Metal
x 26 M 12 x 45 mm
I)
Screw/Metal
Screw/Metal
x 12 M 3.5 x 13 mm
N)
Rell/Metal
Wedge/Plastic
x 8
350 mm
E)
Screw/Metal
x 4 x 12
M 8 x 39 mm
J)
Screw/Metal
x 18 M 6.5 x 10.5 mm x 12
O)
Fisher/Plastic
x 3 5003 x
Page 1 of 13
