MOD-6047, MOD-6078
Thank you for purchasing the MODWAY BED ！
Before you start, here is some helpful advice:
1
.
We suggest you spend a short time reading through this leaflet and then follow the simple step by step
instructions.
2
.
Owing to the size and weight of the bed, we recommend that it is assembled by two adults, on a carpeted or
padded area, in the room that it is intended for. Approx assembly time: 30 minutes.
.
3
Please do not use any tools other than those provided or recommended in these instructions.
4
.
Please do not throw away any of the packaging or the instruction until you have checked all the components
and hardware and the furniture is fully assembled.
5
.
Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten
the components from time to time, so please save the tools that has been provided.
6
.
Please keep all small pieces out of reach of children.

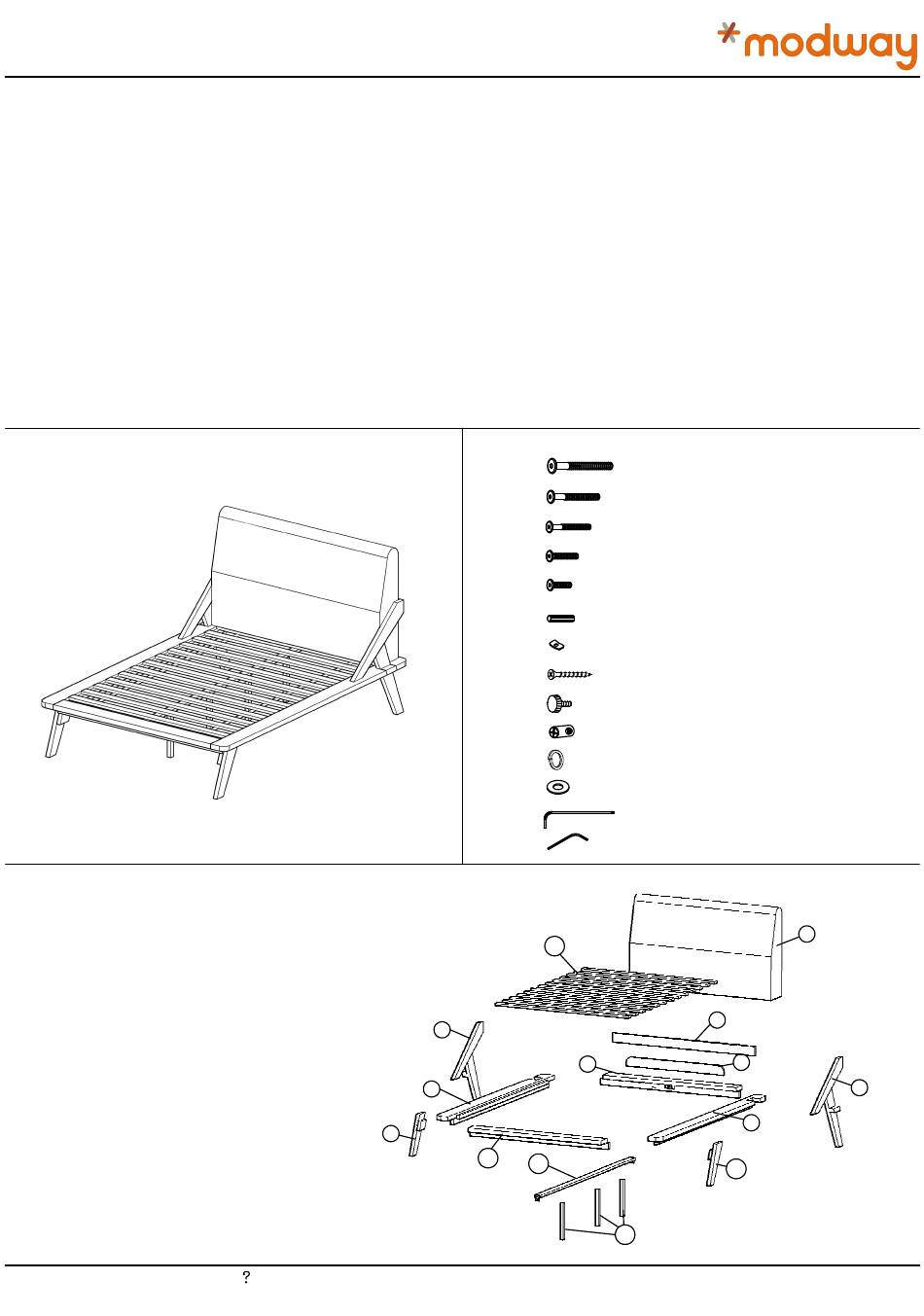

Compenent :
1 -
HEADBOARD CUSHION
2 -
HEAADBOARD TOP RAIL
3 -
HEADBOARD MIDDLE RAIL
4 -
HEADBOARD RAIL
5 -
HEADBOARD LEG (L)
6 -
HEADBOARD LEG (R)
7 -
SIDERAIL (L)
8 -
SIDERAIL (R)
9 -
FOOTBOARD LEG(L)
10 -
FOOTBOARD LEG(R)
11 -
SUPPORT LEG
12 -
CENTER SUPPORT
13 -
FOOTBOARD RAIL
14 -
BED SLAT
Customer Service 908-368-1025 www.modway.com
x 1
x 1
x 1
x 1
x 1
x 1
x 1
x 1
x 1
x 1
9
x 3
x 1
x 1
x 13
Hardware:
A
B
C
D
E
F
G
H
I
J
K
L
M
N
14
5
4
7
13
12
JCBB BOLT M8 x 80
JCBC BOLT M6 X 70
JCBC BOLT M6 X 60
JCBC BOLT M6 X 50
JCBC BOLT M6 X 40
WOOD DOWEL M10 X 40mm
U WASHER
WOOD SCREW M4 X 32mm
ADJUSTER
BARREL NUT
SPRING WASHER M5
FLAT WASHER M5
ALLEN KEY (BALL SHAPE) M4
ALLEN KEY M5
2
3
8
10
11
4 PCS
4 PCS
2 PCS
14 PCS
2 PCS
4 PCS
2 PCS
10 PCS
3 PCS
4 PCS
4 PCS
8 PCS
1 PC
1 PC
1
6
Page 1/4
Advertisement
Related Manuals for modway MOD-6047
Summary of Contents for modway MOD-6047
- Page 1 MOD-6047, MOD-6078 Thank you for purchasing the MODWAY BED ！ Before you start, here is some helpful advice: We suggest you spend a short time reading through this leaflet and then follow the simple step by step instructions. Owing to the size and weight of the bed, we recommend that it is assembled by two adults, on a carpeted or padded area, in the room that it is intended for.
- Page 2 2. Insert JCBC M6x70(B),Barrel Nut(J) as per diagram shown and tighten with M4 Allen Key(M) to all 4 side bed corner. 3. Attach Headborad Guardrail(3 ) into Headbord(1) then insert JCBC Bolt 50mm(D),Flat Washer 2mm(L) and tighten by using M4 Allen Key(M) Hardware & Tool required Customer Service 908-368-1025 www.modway.com Page 2/4...
- Page 3 1. Attach the Center Support (12) to the hinges as per diagram shown . Repeat again at Footboard(2). 2.Attach the Adjuster(J) to the three support leg(11). 3. Attach the Support Leg(11) to the Center support (12) as shown in diagram. Hardware & Tool required Customer Service 908-368-1025 www.modway.com Page 3/4...
- Page 4 1. Attach the Headboard (1) as shown in diagram. Place the JCBC bolt 50MM(D), Flat Washer(L) and tighten by using M4 Allen Key(M). Repeat again at 3 another hole. Assembly is completed. The bed is ready to enjoy now! Hardware & Tool required Customer Service 908-368-1025 www.modway.com Page 4/4...
