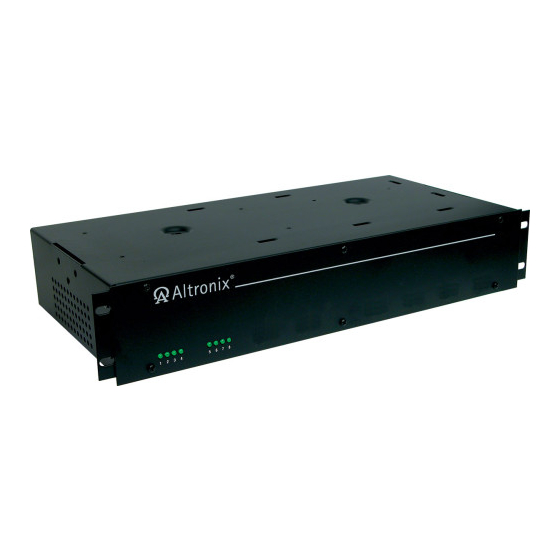

- Page 1 R615DC8220 Series Rack Mount DC CCTV Power Supplies Installation Guide Models Include: R615DC8220 - 6-15VDC @ 4A. - Eight (8) Fuse Protected Outputs. R615DC8CB220 - 6-15VDC @ 4A. - Eight (8) PTC Protected Outputs. More than just power. Rev. 052316...
- Page 2 Overview: Altronix R615DC8220 Series rack mount CCTV Power Supplies are designed with eight (8) individually fuse or PTC protected outputs for powering CCTV cameras and other video accessories. They provide 6VDC-15VDC distributed via eight (8) outputs with a total of up to 4A total continuous supply current.
- Page 3 Terminal Identification: AL400ULB - Power Supply Board Terminal Legend Function/Description AC/AC Low voltage AC input (24VAC 100VA) Altronix part #T24130/220 + DC – 6VDC-15VDC @ 4A total continuous output. PD8/PD8CB - Distribution Module Terminal Legend Function/Description 1P - 8P Positive DC output...
- Page 4 N P N P Altronix is not responsible for any typographical errors. 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty | Made in U.S.A. MEMBER IIR615DC8220 Series...
