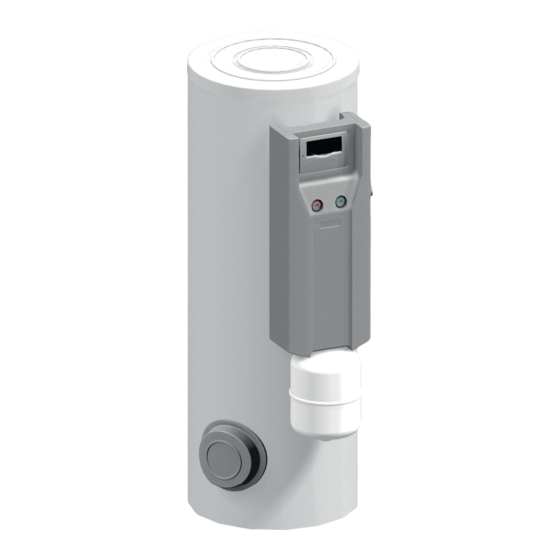

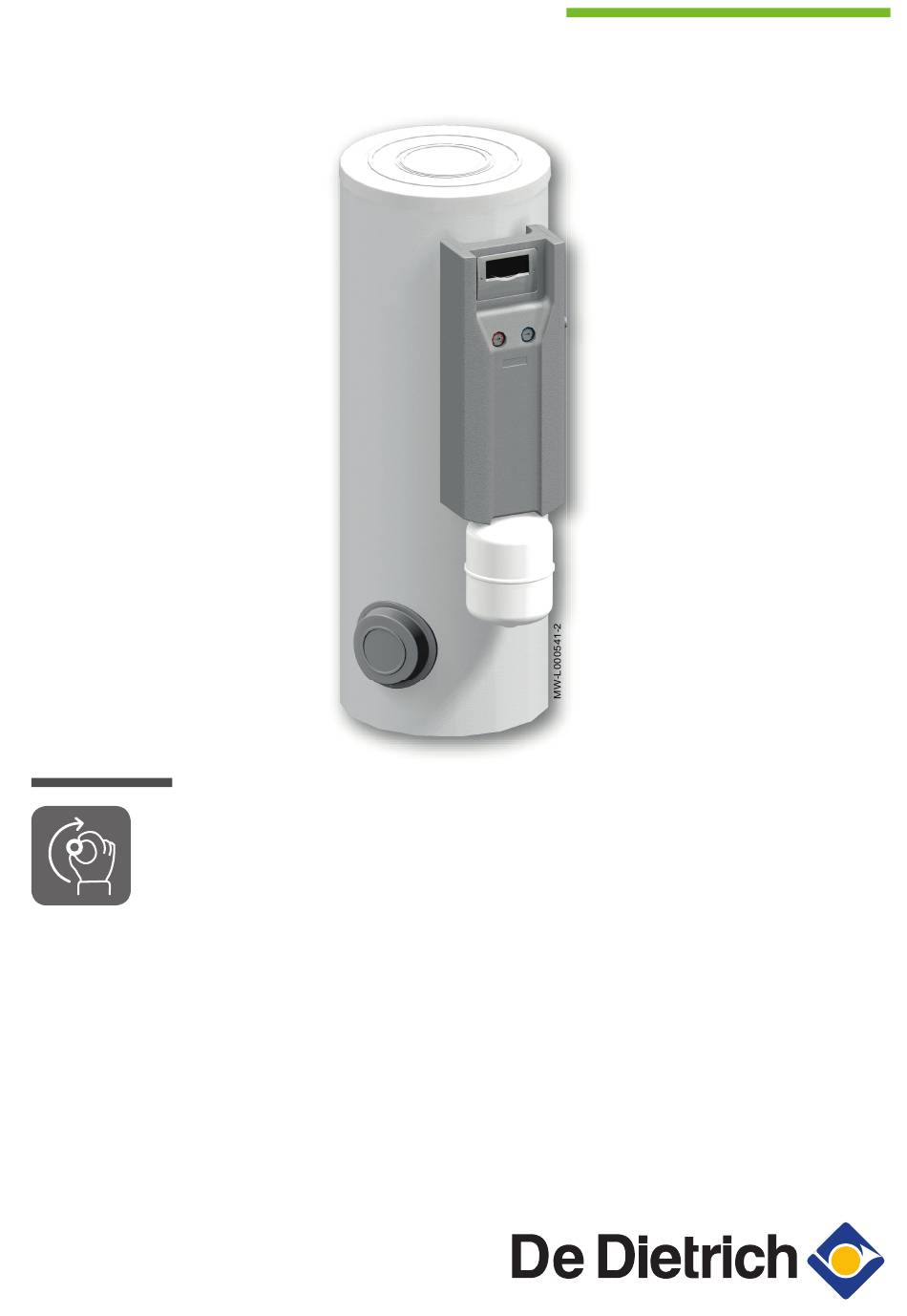

EASYLIFE User Manual Solar tank BSL 150...400 BESL 200...400 S U S T A I N A B L E C O M F O R T ®...
Page 2
Dear Customer, Thank you very much for buying this appliance. Please read through the manual carefully before using the product, and keep it in a safe place for later reference. In order to ensure continued safe and efficient operation we recommend that the product is serviced regularly. Our service and customer service organisation can assist with this.
1 Safety Safety Safety Danger This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
1 Safety Caution A disconnection method must be allowed in the fixed pipes in accordance with the rules on installation in force in the country. Caution If a power cord comes with the appliance and it turns out to be damaged, it must be replaced by the manufacturer, its after sales service or persons with similar qualifications in order to obviate any danger.
1 Safety Warning Never turn the power off to the solar control system even for extended absences. The control system protects the installation from overheating when it is operating in the summer. Warning Do not modify the control system parameters unless fully conversant with them.
2 About this manual About this manual Symbols used 2.1.1 Symbols used in the manual This manual uses various danger levels to draw attention to special instructions. We do this to improve user safety, to prevent problems and to guarantee correct operation of the appliance. Danger Risk of dangerous situations that may result in serious personal injury.
3 Description of the product Description of the product Homologations 3.1.1 Certifications Fig.2 This product complies with the requirements of European directives and the following standards: Pressure Equipment Directive 2014/68/EU Electromagnetic Compatibility Directive 2014/30/EU Generic standards: EN 61000-6-3, EN 61000-6-1 Relevant Standard: EN 55014 Low Voltage Directive 2014/35/EU Generic standard: EN 60335-1...
Page 9
3 Description of the product Fig.4 BSL 200, BSL 300, BSL 400 1 Top inspection hatch 2 Solar control system 3 Safety unit for the solar circuit 4 Solar station 5 Electrical back-up (optional) 6 Expansion vessel 7 Side inspection hatch Important All components are checked for leaks and tested in the factory.
3 Description of the product Control panel description 3.3.1 Description of the keys Fig.6 key: Move the cursor upwards. Increase the value of the parameter. key: Access a selected parameter. Confirm a value modification. key: Move the cursor downwards. Reduce the parameter value. D 3-position switch: M002759-A : The back-up may be active in day mode and night mode...
Page 11
3 Description of the product Steady sym Flashing symbol Status Adjustment parameter. Modification of settings. Sensor fault. Forced running of the solar pump. Forced running of the back-up. LED indicator Fig.9 A LED Tab.3 LED mes Circulating pump status Description sage code Continuously The pump relay is...
4 Operation Operation Displaying the measured values Scroll through the measured values using the keys. Tab.4 Parameter Description Notes Collector temperature Sensor S1. The value TC shows the temperature in °C measured by the collector sen sor in real time. Tank temperature (Solar exchang...
4 Operation 2. Press the key for 2 seconds. 3. Set the hours with the keys. 4. Press the key to confirm. 5. Set the minutes with the keys. 6. Press the key to confirm. Caution The controller does not switch between summer and winter time automatically.
4 Operation Setting the tank outlet temperature 4.3.1 Programming and adjusting the electrical back-up The temperature of the water volume heated by the immersion heater is set by the installer at the start-up of the installation according to the size of the home.
5 Maintenance Maintenance General instructions Caution Maintenance operations must be completed by a qualified installer. Use only genuine spare parts. Safety valve or safety unit 1. The safety valve or unit on the domestic cold water inlet must be operated at least once a month in order to ensure that it works properly and take precautions against possible pressure surges which would damage the domestic hot water tank.
6 Troubleshooting Troubleshooting Fault finding Tab.7 Description Checks Solutions The control indicator light is off. The current has been cut. Restore the current. BSL 150...400 — BESL 200...400 300028413 - v06 - 03032020...
7 Technical specifications Technical specifications Solar domestic hot water tank Tab.8 Unit BSL 150 BSL 200 BSL 300 BSL 400 Primary circuit:Solar exchanger Maximum operating temperature °C Maximum operating pressure MPa (bar) 1 (10) 1 (10) 1 (10) 1 (10) Exchanger capacity litres 10.1...
7 Technical specifications Unit BESL 200 BESL 300 BESL 400 Net weight Performance Standby heat loss (ΔT=45K) kWh/24h 1.80 2.20 2.60 Composition of the NF CESI solar system packages (for France) Check the composition of the NF CESI solar system against the table below.
Page 19
7 Technical specifications CESI INISOL Collector field Domestic hot water production Solar fluid system Type of Package / DHW tank Package/ Volume (litres) Back-up Package / mounting Reference type/model Reference Reference UNO E 300 – On roof ER 502: BESL 300 ER 373 Electrical EG 101...
Page 20
7 Technical specifications CESI INISOL Collector field Domestic hot water production Solar fluid system Type of Package / DHW tank Package/ Volume (litres) Back-up Package / mounting Reference type/model Reference Reference UNO 200 – 4 On roof ER 502: BSL 200 ER 359 Boiler EG 101...
8 Warranty Warranty General You have just purchased one of our appliances and we thank you for the trust you have placed in our products. Please note that your appliance will provide good service for a longer period of time if it is regularly checked and maintained. Our customer support network is at your disposal at all times.
Page 22
8 Warranty Our warranty is limited to the replacement or repair of the parts found to be defective by our technical services team, excluding labour, transfer and transport costs. Portugal: Our warranty is limited to the replacement or repair of the parts found to be defective by our technical services team.
9 Appendix Appendix Information on the ecodesign and energy labelling directives 9.1.1 Specific information Technical data - Hot water storage tank Tab.11 Technical parameters for BSL hot water storage tanks BSL 150 BSL 200 BSL 300 BSL 400 Storage volume Standing loss Tab.12 Technical parameters for BESL hot water storage tanks...
Page 28
57, rue de la Gare - F-67580 Mertzwiller 03 88 80 27 00 SERVICE CONSOMMATEURS 0 825 120 520 0,15 / min 03 88 80 27 99 www.dedietrich-thermique.fr VAN MARCKE NV 000 «БДP T » LAR Blok Z, 5 129164, Россия, г. Москва B- 8511 KORTRIJK Зубарев...
