- Page 1 Domestic hot water tank SR130 Installation, User and Service Manual 300009755-001-03...
-
Page 2: Table Of Contents
Contents Introduction ....................4 Symbols used ............4 Abbreviations ............4 Liabilities ...............4 1.3.1 Manufacturer’s liability ..........4 1.3.2 Installer’s liability .............5 1.3.3 User’s liability ............5 Homologations ............6 1.4.1 Certifications ............6 1.4.2 Directive 97/23/EC ..........6 1.4.3 Factory test .............6 Safety instructions and recommendations ..........7 Safety instructions ..........7 Recommendations ..........7 Technical description ................8... - Page 3 Contents Electrical connection of the DHW sensor ..17 4.6.1 DHW tank combined with a MCA boiler ....17 4.6.2 DHW tank combined with a MCR boiler ....18 4.6.3 DHW tank combined with a MS boiler ....19 4.6.4 DHW tank combined with a MSL boiler ....20 4.6.5 DHW tank combined with a EMC / PMC boiler ..............20...
- Page 4 26/03/2014 - 300009755-001-03...
-
Page 5: Introduction
SR130 1. Introduction Introduction Symbols used In these instructions, various danger levels are employed to draw the user’s attention to particular information. In so doing, we wish to safeguard the user’s safety, obviate hazards and guarantee correct operation of the appliance. DANGER Risk of a dangerous situation causing serious physical injury. -
Page 6: Installer's Liability
1. Introduction SR130 In the interest of customers, we are continuously endeavouring to make improvements in product quality. All the specifications stated in this document are therefore subject to change without notice. Our liability as the manufacturer may not be invoked in the following cases: 4 Failure to abide by the instructions on using the appliance. -
Page 7: Homologations
SR130 1. Introduction Homologations 1.4.1. Certifications This product complies to the requirements to the european directives and following standards: 4 2006/95/EC Low Voltage Directive. Reference Standard: EN 60.335.1. 4 2004/108/EC Electromagnetic Compatibility Directive. Reference Standards: EN 50.081.1, EN 50.082.1, EN 55.014 1.4.2. -
Page 8: Safety Instructions And Recommendations
2. Safety instructions and recommendations SR130 Safety instructions and recommendations Safety instructions CAUTION Before any work, switch off the mains supply to the appliance. Recommendations CAUTION Do not neglect to service the appliance. Service the appliance regularly to ensure that it operates correctly. WARNING Only qualified professionals are authorised to work on the appliance and the installation. -
Page 9: Technical Description

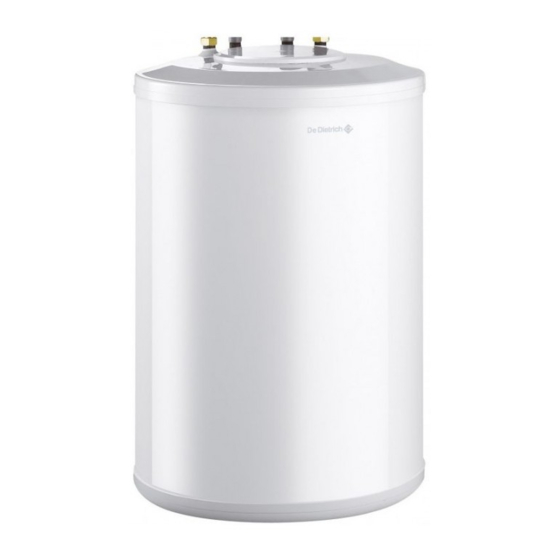

SR130 3. Technical description Technical description General description The SR130 domestic hot water tank can be connected to traditional wall-hung boilers. The appliance is delivered with an NTC sensor with connector and a mounting rail. Main parts: 4 The tanks are made of high quality steel lined with food quality standard enamel vitrified at 850°C, which protects the tank from corrosion. -
Page 10: Technical Specifications
3. Technical description SR130 Technical specifications 3.2.1. Characteristics of the DHW calorifier DHW tank SR130 Primary circuit (Heating water) Maximum operating temperature °C Maximum operating pressure bar (MPa) Switzerland: bar (MPa) Maximum operating pressure (W/TPW) Exchanger capacity Exchange surface Secondary circuit (domestic water) Maximum operating temperature °C Maximum operating pressure... -
Page 11: Installation
SR130 4. Installation Installation Regulations governing installation CAUTION Installation of the appliance must be done by a qualified engineer in accordance with prevailing local and national regulations. CAUTION France: The installation must comply in all matters to the standards and rules which govern the work and interventions in individual and collective homes, and other constructions. -
Page 12: Positioning Of The Appliance
4. Installation SR130 4.3.2. Positioning of the appliance Positioning the appliance: 4 in a frost-free room 4 as close as possible to draw-off points in order to minimise energy losses through the pipes SR130 calorifiers are designed to be placed under the wall-hung boiler. -
Page 13: Hydraulic Installation Diagram
SR130 4. Installation Hydraulic installation diagram Stop valve Domestic cold water inlet Pressure reducer Safety unit Domestic hot water outlet 8953N155-C Cold water inlet with an integrated non-return valve Connection to the DHW calorifer cold water inlet Stop cock 2 cm safety unit 7 bar (54) Drain opening... - Page 14 4. Installation SR130 Primary inlet Domestic hot water outlet Domestic cold water inlet Primary outlet CAUTION Connect the hoses, taking care to interpose the gaskets. n DHW tank combined with a MS boiler Use the HX32 connecting kit to connect the DHW tank to the boiler. Primary inlet Domestic hot water outlet Domestic cold water inlet...
- Page 15 SR130 4. Installation Primary inlet Domestic hot water outlet Domestic cold water inlet Primary outlet CAUTION Connect the hoses, taking care to interpose the gaskets. 1. Connect the primary inlet 1 on the tank to the tank flow on the boiler using the hose.
-
Page 16: Connecting The Calorifer To The Domestic Water Circuit (Secondary Circuit)
4. Installation SR130 4.5.2. Connecting the calorifer to the domestic water circuit (secondary circuit) When making the connections, it is imperative that the standards and corresponding local directives are respected. n Specific precautions Before making the connection, rinse the drinking water inlet pipes in order not to introduce metal or other particles into the appliance’s tank. - Page 17 SR130 4. Installation 4 The cross section of the discharge pipe from the safety unit must be at least equal to the cross section of the opening of the safety unit outlet. Germany: Define the dimensions of the safety valve in accordance with the DIN 1988 standard.
-
Page 18: Electrical Connection Of The Dhw Sensor
4. Installation SR130 n Pressure reducer If the mains pressure exceeds 80% of the calibration of the valve or safety unit (e.g. 5,5 bar (0,55 MPa) for a safety unit calibrated to 7 bar (0,7 MPa)), a pressure reducer must be installed upstream of the appliance. -
Page 19: Dhw Tank Combined With A Mcr Boiler
SR130 4. Installation S SYST + TA - S ECS S EXT S DEP C S DEP B 1. Access the boiler’s terminal block. ¼ Refer to the installation and maintenance instructions of the boiler. 2. Connect the domestic hot water sensor to the corresponding terminal on the control panel. -
Page 20: Dhw Tank Combined With A Ms Boiler
4. Installation SR130 1. Access the boiler’s terminal block. ¼ Refer to the installation and maintenance instructions of the boiler. 2. Connect the domestic hot water sensor to the corresponding terminal on the control panel. 4.6.3. DHW tank combined with a MS boiler WARNING Only qualified professionals may carry out electrical connections, always with the power off. -
Page 21: Dhw Tank Combined With A Msl Boiler
SR130 4. Installation 2. Connect the domestic hot water sensor to the corresponding terminal on the control panel. 4.6.4. DHW tank combined with a MSL boiler WARNING Only qualified professionals may carry out electrical connections, always with the power off. 1 2... - Page 22 4. Installation SR130 Tout Tdhw BL C004046-B 1. Access the boiler’s terminal block. ¼ Refer to the installation and maintenance instructions of the boiler. 2. Connect the domestic hot water sensor to the corresponding terminal on the control panel. 26/03/2014 - 300009755-001-03...
-
Page 23: Commissioning
SR130 5. Commissioning Commissioning Putting the appliance into operation CAUTION Initial commissioning must be done by a qualified professional. 1. Flush the domestic circuit and fill the calorifer through the cold water inlet tube. 2. Open a hot water tap. 3. -
Page 24: Checking And Maintenance
6. Checking and maintenance SR130 Checking and maintenance General instructions CAUTION Maintenance operations must be done by a qualified engineer. Only original spare parts must be used. Sacrificial anode 6.2.1. Checking the magnesium anode Carry out a visual check of the anode. 4 The anode must be replaced if its diameter is less than 15 mm. -
Page 25: Replacing The Magnesium Anode And Descaling
SR130 6. Checking and maintenance 6.2.2. Replacing the magnesium anode and descaling Have a lip gasket and a retainer ring on hand for the inspection hatch. 1. Turn off the domestic cold water inlet. 2. Open a hot water tap. 3. -
Page 26: Cleaning The Casing Material
6. Checking and maintenance SR130 Cleaning the casing material Clean the outside of appliances using a damp cloth and a mild detergent. 26/03/2014 - 300009755-001-03... -
Page 27: Maintenance Form
SR130 6. Checking and maintenance Maintenance form Date Checks made Remarks Signature _____ _________ ______________________________ _____________________ _______________ ____________ 26/03/2014 - 300009755-001-03... -
Page 28: Spare Parts
7. Spare parts SR130 Spare parts General When it is observed subsequent to inspection or maintenance work that a component in the appliance needs to be replaced, use only original spare parts or recommended spare parts and equipment. To order a spare part, give the reference number shown on the list. -
Page 29: Spare Parts
SR130 7. Spare parts Spare parts Markers Reference Description 8953-8579 Complete Anode 8375-4945 Earth wire 8953-5528 Complete cover 89705511 Seal kit 7 mm + retainer ring 8953-8593 Top cover 9536-2445 NTC DHW sensor 5 m 8199-4919 2 PIN DHW probe connector 8953-5529 Accessories bag 26/03/2014 - 300009755-001-03... -
Page 30: Warranty
8. Warranty SR130 Warranty General You have just purchased one of our appliances and we thank you for the trust you have placed in our products. Please note that your appliance will provide good service for a longer period of time if it is regularly checked and maintained. Your installer and our customer support network are at your disposal at all times. - Page 31 SR130 8. Warranty The warranty is limited to the exchange or repair of such parts as have been recognised to be faulty by our technical department and does not cover labour, travel and carriage costs. The warranty shall not apply to the replacement or repair of parts damaged by normal wear and tear, negligence, repairs by unqualified parties, faulty or insufficient monitoring and maintenance, faulty power supply or the use of unsuitable fuel.
