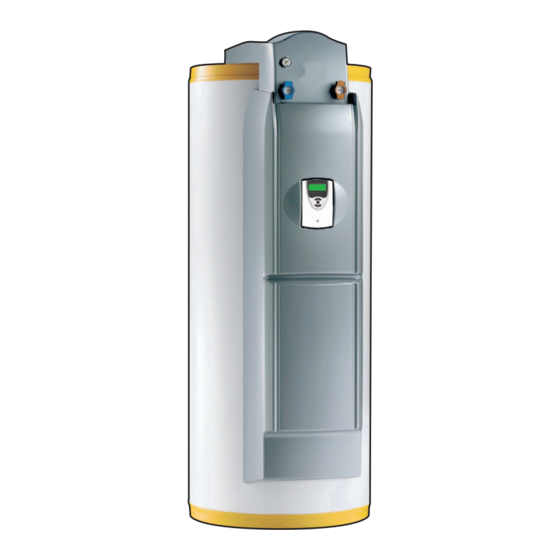

- Page 1 DIETRISOL Solar domestic hot water tanks TRIO DT 250 - TRIO DT 350 User Guide 300028005-001-04...
-
Page 2: Table Of Contents
Contents Safety instructions ...............3 General safety instructions . -
Page 3: Safety Instructions
1 Safety instructions 1.1 General safety instructions Danger Respect the maximum water inlet pressure to This appliance can be used by children aged ensure correct operation of the appliance, from 8 years and above and persons with referring chapter "Technical reduced physical, sensory or mental capabilities Specifications". -
Page 4: Recommendations
1.2 Recommendations Heating water and domestic water must not Service the appliance regularly to ensure that it operates come into contact with each other. The correctly. Contact a qualified professional or take out a circulation of drinking water must not be done in maintenance contract for the annual servicing of the the exchanger but only in the tank. -
Page 5: About This Manual
2 About this manual 2.1 Symbols used 2.1.1 Symbols used in the manual In these instructions, various markings and pictograms are used to draw your attention to particular information. In so doing, De Dietrich Thermique S.A.S wishes to safeguard the user's safety, obviate hazards and guarantee correct operation of the appliance. -
Page 6: Technical Specifications
3 Technical specifications 3.1 Homologations 3.1.1 Certifications NF certification 3.1.2 Directives Compliance of design and manufacture Electrical compliance / Marking This product conforms to the requirements of european directive 97 / This product complies to the requirements to the european directives 23 / EC, article 3, paragraph 3, on pressure equipment. -
Page 7: Technical Data
3.2 Technical data DIETRISOL DIETRISOL TRIO DT 250 TRIO DT 350 Solar exchangers °C Maximum operating temperature Boiler heat exchanger °C tank °C Maximum operating pressure Mpa (bar) 0.7 (7) 1 (10) Mpa (bar) 0.6 (6) 0.6 (6) Maximum operating pressure in accordance with W/TPW Solar exchangers litres Water content... -
Page 8: Main Parts
3.3 Main parts tank Dietrisol TRIO DT is a high performance solar DHW tank/calorifier designed to be connected to Dietrisol NEO or POWER solar The high quality steel tank is lined with food standard quality collectors and an De Dietrich central heating boiler. vitrified enamel, which protects it from corrosion and preserves It is designed in such a way as to be able to cope with a solar collector all the qualities of the domestic water. -
Page 9: Setting The Dhw Calorifier Outlet Temperature
4 Setting the DHW calorifier outlet temperature 4.1 Programming and setting the electrical back-up The temperature of the volume of water heated by the electrical By forcing contunuous heating by the resistor (off-peak hours resistor is set by the installer on commissioning of the installation contact) for significant unforeseen needs. -
Page 10: Solar Regulator
solar regulator Always fitted to installation type 1 (Parameter ANL 1). See next page (Start-up). 5.1 General description of how the unit operates In automatic mode, the regulator operates in accordance with the - If the heating return temperature is equal to or greater than the following principles: temperature of the solar tank, heating return is direct to the boiler. -
Page 11: Adjustment Keys
Switch on the device. When initialisation is complete, the regulator Installation 1 changes to automatic mode. The factory settings for this mode give optimum performance with most installations. The regulator is configured in the factory for installation type 1 (parameter ANL=1). If special conditions make it necessary to change the settings, the corresponding adjustment parameters can be reset. -
Page 12: Measured Values And Adjustment Parameters
5.4 Measured values and adjustment parameters Channel Abbreviation Range Increment Factory setting Collector temperature [-50.0 ... 250.0] °C Calorifier temperature [-50.0 ... 250.0] °C Amount of heat [0 ... 9999] kWh Pump regime [0 ... 100] % Self-calibration time [0 ... 5] minutes Return temperature -50...250°C Additional temperature... - Page 13 Measured value TC - Collector temperature Solar installation for the preparation of domestic hot water with a DC mixed calorifier and for heating back-up with temperature control on The value TC shows the temperature in °C given by the collector the heating return circuit.
- Page 14 Adjustment parameter DT - Reference Adjustment parameter SX - Set temperature of the temperature difference solar calorifier Adjustment range: 10 ... 20 K Factory setting: 20 K Adjustment range: 20 ... 80 °C Switching-on difference: Non-adjustable value 10 K Factory setting: 60 °C Switching-off difference: Non-adjustable value 5 K Maximum tank temperature (emergency cut-off): Non- The regulator reads the temperatures measured by sensors S1 (TC)
- Page 15 Adjustment parameter CX - Maximum collector Adjustment parameter PN - Pump minimum temperature speed Adjustment range: 100 ... 125 °C Adjustment range: 20 ... 100% Factory setting: 100 °C Factory setting: 30% Maximum collector temperature (overheating safety): Non- Adjustment parameter PN sets a minimum value for the solar pump adjustable value: 130 °C.
- Page 16 Adjustment parameter Fx - Maximum flow rate Tubular solar collectors Flow rate Flow rate Number of panels l/min minimum: 1x4 13.7 12.5 11.4 10.2 C000191 Adjustment range: 0 ... 20 l/min Factory setting: Installation 1: 6.7 - Installation 2: 4.2 1x10 In order for the regulator to calculate the quantity of heat produced by 1400...
-
Page 17: Checking And Maintenance
6 Checking and maintenance 6.1 Solar installation We recommend that you take out a preventive maintenance contract to check the fluid level, antifreeze protection, pressure in the system, leak test and general operation every year or every two years. 6.2 Tank 6.2.1 Magnesium anodes The magnesium anode must be checked by a qualified professional... - Page 18 Warranty You have just purchased one of our appliances and we thank you Italy for the trust you have placed in our products. Please note that your The duration of our warranty is shown on the certificate delivered appliance will provide good service for a longer period of time if it is with the appliance.
-
Page 19: Warranty Certificate
Warranty certificate Date of purchase: ................Retailer's stamp: Name and address of the purchaser: ....................................................................................................................Tel.:....................Information on the appliance (to be found on the nameplate): Model: ....................Serial number: .................. 16/07/2015 - 300028005-001-04 TRIO DT 250 - TRIO DT 350... -
Page 20: Appendix - Information On The Ecodesign And Energy Labelling Directives
Appendix Information on the ecodesign and energy labelling directives... - Page 21 Contents Contents Specific information ................. . 3 Recommendations .
- Page 22 1 Specific information Specific information Recommendations Note Only qualified persons are authorised to assemble, install and maintain the installation. Ecodesign Directive This product conforms to the requirements of European Directive 2009/125/EC on the ecodesign of energy-related products. Technical data - Hot water storage tank Tab.1 Technical parameters for hot water storage tank Product name...
- Page 23 1 Specific information Brand name - Product name DIETRISOL DIETRISOL TRIO DT 250 TRIO DT 350 Annual auxiliary energy consumption 300028005 - ErP01 - 24072015...
