II. Model Numbering and General Specifications

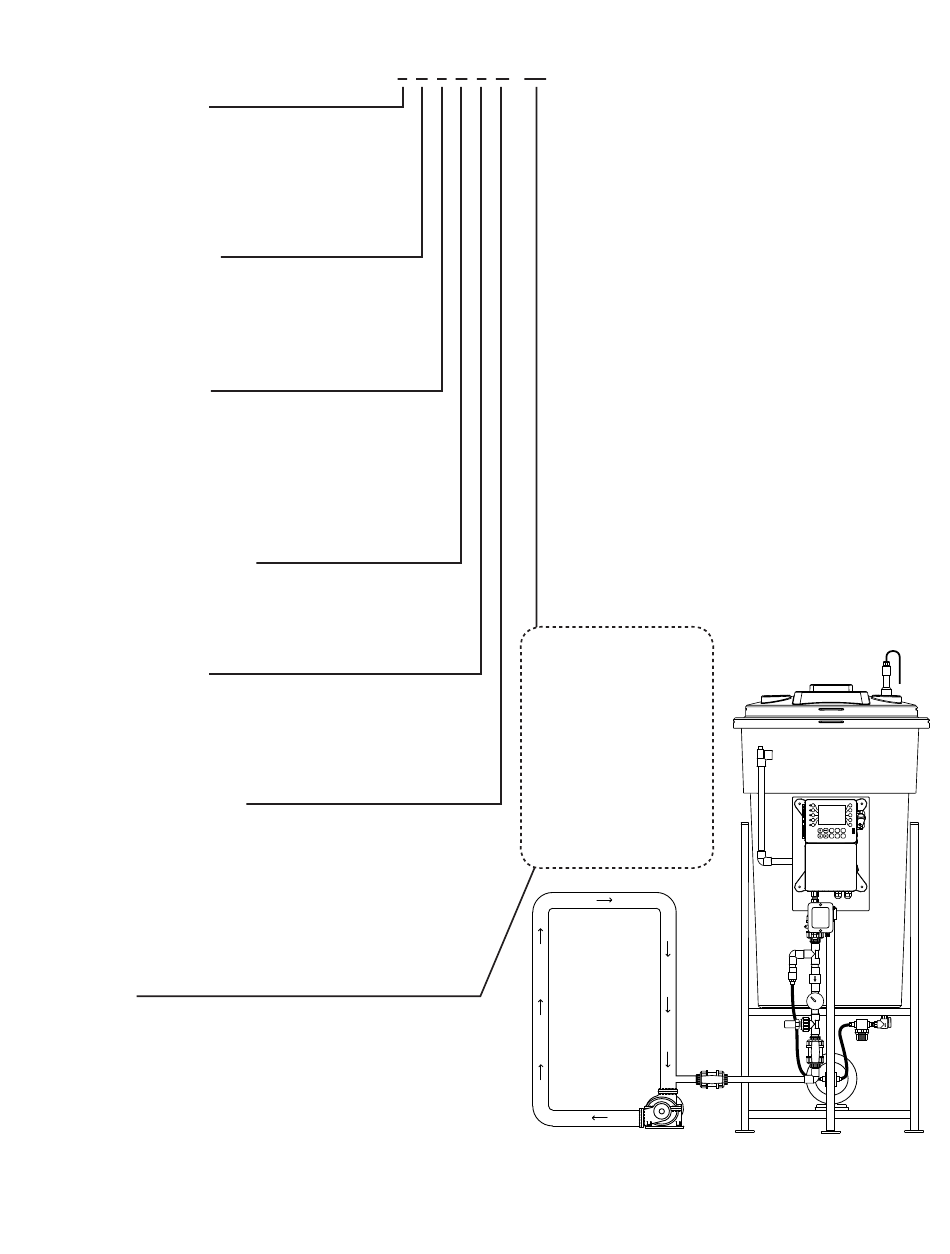

BUILD A MODEL
TANK SELECTION
0 = No tank
1 = 55 gal (208L) poly
2 = 100 gal (378L) poly
3 = 30 gal (113L) poly
5 = 5 gal (18L) no stand, 30 gpd pump only
7 = 150 gallon poly (567L)
STAND SELECTION
A = Painted steel stand
B = Painted steel stand w/ mixer bracket
C = Tank top mount (no tank included)
D = Portable stand with built in rollers
E = No stand (for 5 gal tanks)
PUMP SELECTION
* Dual pump sys. require 2 pump selections (i.e., -11)
0 = No pump
1 = 1.5 gpm at 100 PSI; 1/3 hp
2 = 3.3 gpm at 100 PSI; 1/2 hp
3 = 6.1 gpm at 60 PSI; 3/4 hp
4 = 9.9 gpm at 60 PSI; 11/2 hp
5 = 30 gpd at 100 PSI; solenoid driven
PUMP CONFIGURATION
A = Standard configuration
B = Alternating pumps for single loops
(requires 2 pump selections)
C = Pump plumbed for transfer duty into tank
LOOP SELECTION
* Dual loop sys. require 2 loop selections (i.e., -11)
0 = No loop
1 = Sch 80 PVC loop; 100 PSI max; 100°F max
2 = Copper loop; 100 PSI max; 180°F max
3 = Carbon steel loop; 100 PSI max
CONTROL SELECTION
D = Pre-configured XS Series controller prewired to match
existing single / dual pump system. Mounted to
replacement panel with (1) audible alarm and system
matching high amp / relay box(es)
G = Pre-configured ETL listed XS Series controller
prewired for a single pump system.
H = Pre-configured ETL listed XS Series controller
prewired for a dual pump system.
OPTIONS
1 = 240V
3 = Solenoid valve for pressure relief
5 = Position backcheck to use tank for expansion
C1 = Communications card Internet *
C11 = Communications card Modbus *
C12 = Communications card BacNet *
G = PUMP ON - dry contact relay
H = 1/4" PVC pipe instead of pump suction tubing
M = Mixer controls (order mixer separate)
O4 = Four 4-20mA outputs *
* Options C1, C11, C12, O4 require control option D, G or H.
GF - 1 A 1 A 1 G - C1
3
Specifications
Electrical
• Input
• Alarm
• Motor: 1/3 HP
Plumbing
• Standard Schedule 80 PVC
• Optional Copper or Black Iron
Enclosure
Heavy Duty NEMA 4X style, high
impact thermoplastic with padlockable
gasketed Lexan viewing door
Pressure Gauge
Dimensions
See measurements on page 6.
Shipping Weight
330 lbs (149.69 kg) approx.
Most units include
poly tank and stand,
low level switch with
audible alarm (100db),
motor starter / high
amp relay, dry contact
alarm, pressure relief
valve and plumbing
assembly with
pressure gauge and
sensor.
System
Connection
Circulation Pump
120 VAC, 60 Hz
Dry Contact
Pump: 1.5 GPM
0-100 psi (0-6.9 bar)
1 6
2 7
3 8
4 9
5 0
SET UP ENTER HOME
RUN
CANCEL HELP BACK
