Parts List - Advantage Controls GF with MegaTron XS Installation Maintenance Repair Manual

Note: Dual Digital Glycol Feeders utilize one controller monitoring two separate pressures sensors. The
IX.

Parts List

menu will have additional selections for each function. Both pressure readings will be displayed in the Run
screen: "P1: 060 P2045 psi".
1. Level wand for 30gl = ALL-S30; 55gl = ALL S42
2. Tank lid for 30gl = LID-30-C1D; 55gl = LID-55-C1D

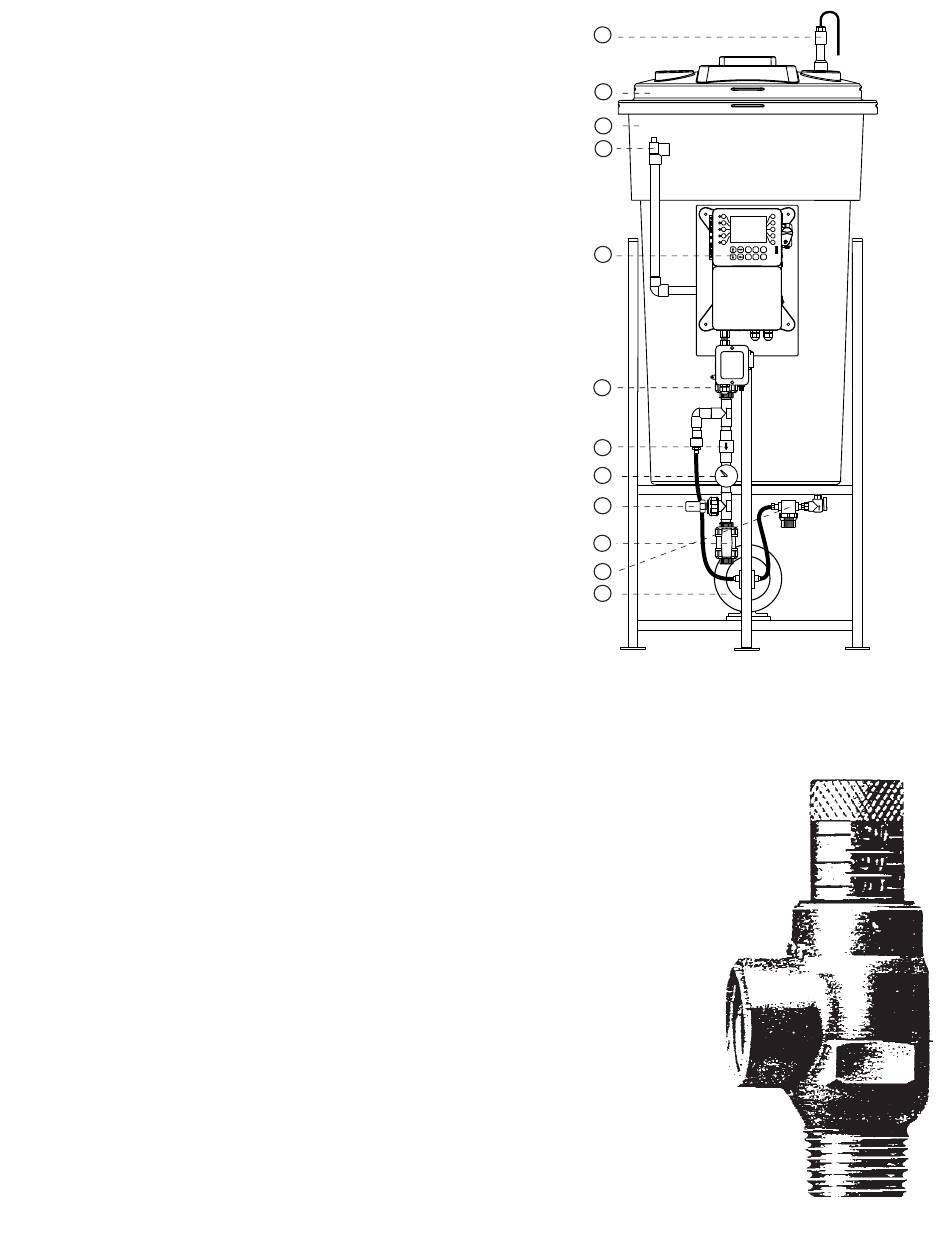

Dual Digital Glycol Feeder (WCD-370302)
3. Tank for 30gl = AGF-APCT-30; for 55gl = AGF-APCT-55
4. Pressure relief valve = AGF-PRV
5. Controller (for selection A)
6. Isolation valve = BV-3/4 for PVC; GV-3/4 for copper
7. Back check = CKV-3/4PP for PVC; CKV-3/4B for copper
8. Pressure guage = AGF-PG
9. Pressure transducer = AGF-PTD
10. Suction shut-off and strainer asssembly = AGF-SUCTION
11. Pump = 991F41 (for selection 1); 992MJ07 (for selection 2)
Note: This list covers most of our popular models.
For models not covered, consult factory.
No. 530
Calibrated Pressure Relief Valve
Features
A calibrated adjustment feature for setting the valve to the relief pressure required.
All Bronze construction
All stainless steel springs
Specifications
Sizes ½" and ¾" (15 and 20 MM)
Inlet (bottom) is male threaded, NPT
Outlet (side) is female threaded, NPT.
Design
Wats No. 530 is spring operated bronze relief valve designed to be used
as protection against excessive pressure of water, oil or air.
This device is designed for emergency safety relief and shall not be used
as an operation control.
Buna-N disc on machined body seat.
Application
Ideally suited as a by-pass thermal expansion relief valve.
There are a wide variety of applications where the valve is used as a
protective device. One such application would be on various pipelines.
1
2
3
4
5
6
7
8
9
6
10
11
17
23
Parts List
1. Level wand fo
2. Tank lid for 3
3. Tank for 30gl =
4. Pressure reli
5. Controller (fo
6. Isolation valv
7. Back check =
8. Pressure gaug
9. Pressure trans
1 6
10. Suction shut
2 7
3 8
4 9 11. Pump = 991F
5 0
SET UP
ENTER HOME
RUN
CANCEL HELP BACK
Note: This l
For models n
