7. Route the signal cables so that they exit the pipe via the cable access slot (see figure 3).
WARNING:
Do not thread any high voltage power cabling, such as power supply or projector power cords, through the
projector pipe. This violates the National Electrical Code.
AVERTISSEMENT :
projecteur, à travers le tube du projecteur. Cet acte est contraire au National Electrical Code (NEC) américain.
8. Attach the cables to the switcher and pull any excess cable back into the ceiling. Feed the output cables to the projector via
the cable access slot to the base of the pipe.
9. Continue installing the projector and other devices, following the directions of the relevant device manufacturer.
10.
Slide the covers onto the base plate, passing the AC power cord out through the power cord slot between the covers (see
figure 3).
11. Slide the covers onto the base plate, passing the AC power cord out through the power cord slot between the covers).
Refer to the PoleVault System Installation Guide, available at www.extron.com, to complete the installation and setup.
PVS 407D
Switcher
PVS 305SA IP
Switcher
Figure 3.
For information on safety guidelines, regulatory compliances, EMI/EMF compatibility, accessibility, and related topics, see the
Extron Safety and Regulatory Compliance Guide
Worldwide Headquarters: Extron USA West, 1025 E. Ball Road, Anaheim, CA 92805, 800.633.9876
2
Ne pas enfiler un câble d'alimentation haute tension, tel qu'un cordon électrique ou un câble de
Cable Access Slot
Power Supply

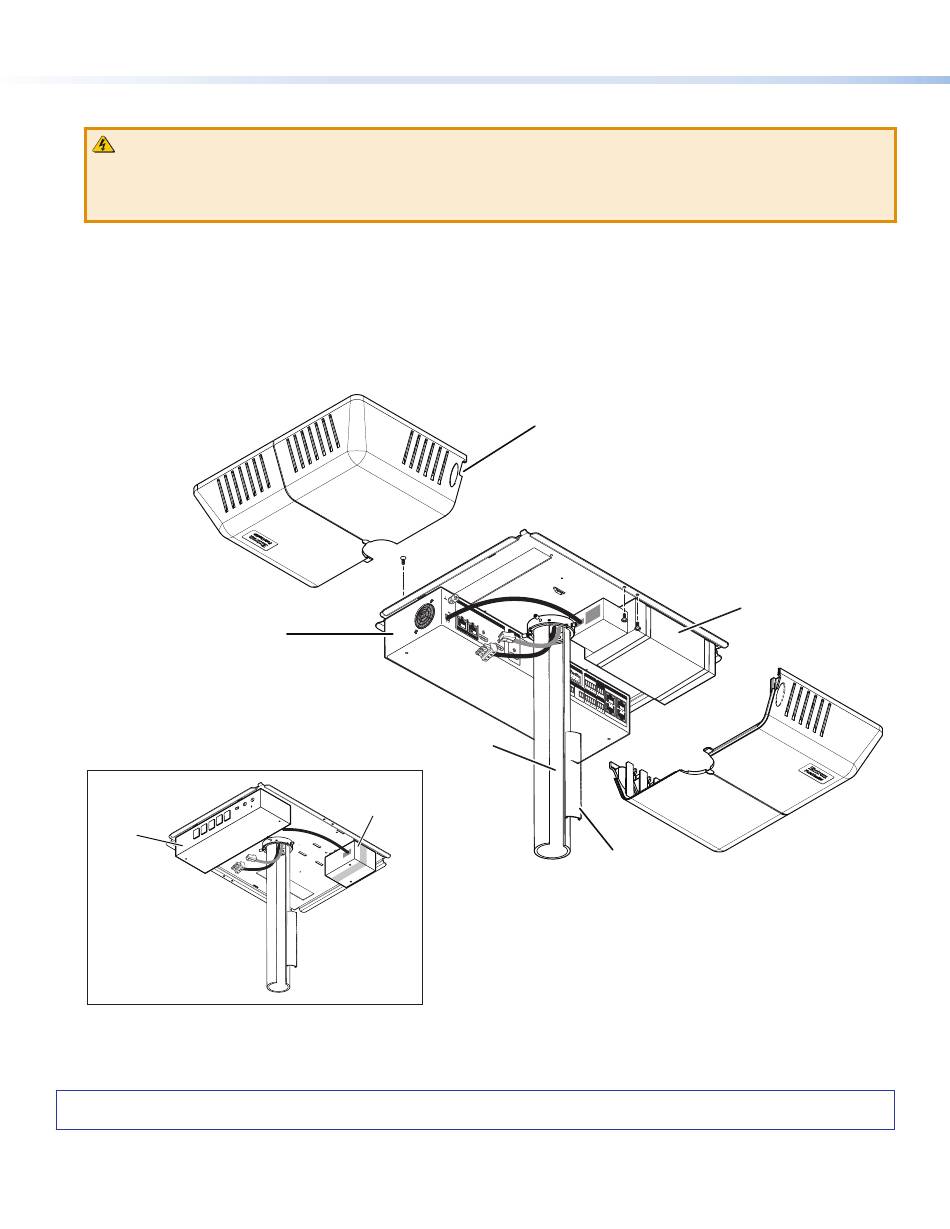

Attach the PMK to the pole, cable the PVS switcher, and then re-attach the
two covers (inset shows the PVS 305SA IP installation location).
on the Extron website.
© 2013-2019 Extron Electronics — All rights reserved.
All trademarks mentioned are the property of their respective owners.
Power Cord Slot
