July 2010
900322-001 Rev 01
About This Document
This document is intended for:
• Operators of TouchTunes Allegro MX-1 digital jukeboxes.
• TouchTunes Field Service, Customer Support, and Sales personnel.
It describes how to install and troubleshoot the Service Light kit for the Allegro MX-1.
Overview
The Allegro MX-1 accommodates a service light kit (PN 600098-001) that plugs into the main wiring harness and
illuminates the interior of the cabinet, facilitating servicing in low-light situations.
emitter and I/R
receiver

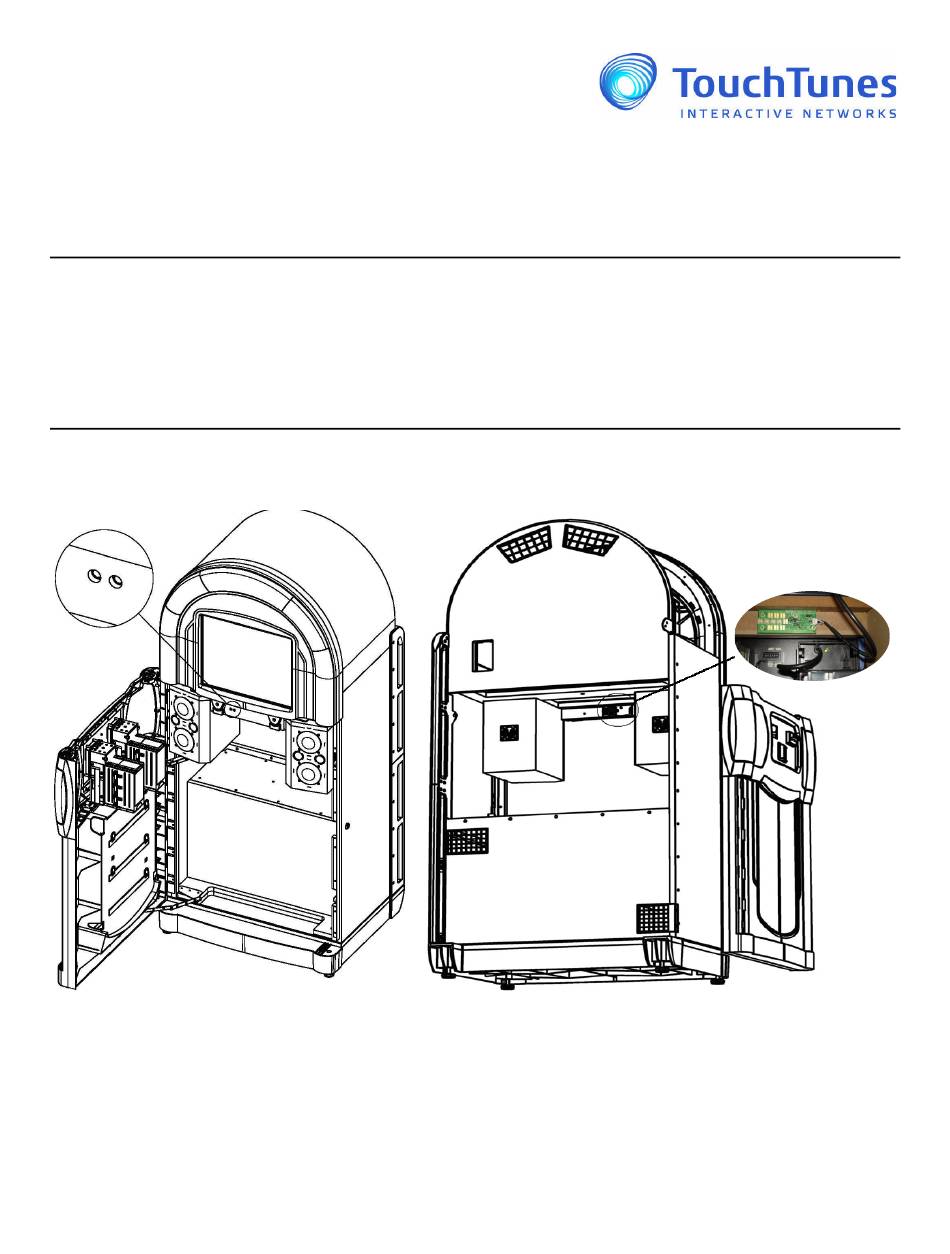

Figure 1 Service Light Kit, Front and Rear Views
When the door of the Allegro MX-1 is opened, components mounted on a circuit board in the interior of the cabinet
activate a panel of high-intensity LEDs that are pointed toward the service tray, providing illumination to the interior.
When the door is closed, the high-intensity LEDs are turned off automatically, unless the small bypass switch on
the control board has been depressed to keep it on permanently (available only on the 300405-001 model).
Mounted on the board is a small emitter and an infrared photo receiver.
•
The LED shines an invisible infrared light through the light pipe on to a reflective strip mounted on the cabinet
door above the payment acceptors.
Installation Notes
Allegro MX-1 Service Light Kit
LEDs
circuit board
1 of 6
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for TouchTunes Allegro MX-1
Summary of Contents for TouchTunes Allegro MX-1
- Page 1 Figure 1 Service Light Kit, Front and Rear Views When the door of the Allegro MX-1 is opened, components mounted on a circuit board in the interior of the cabinet activate a panel of high-intensity LEDs that are pointed toward the service tray, providing illumination to the interior.
- Page 2 Unpacking and Checking Components The TouchTunes service light kit ships in a single box. If any component appears to be damaged, do not attempt to use or install the system. Notify TouchTunes or your local distributor immediately.
- Page 3 Installation Installing the Service Light Board 1. Unlock and open the front door of the Allegro MX-1. 2. Open the service tray on the rear of the cabinet, extending it to the full length of its travel. Figure 3 Opening Door and Service Tray 3.
- Page 4 4. Align the holes on the service light board with the 4 PCB board supports and press it onto the supports until the service light board is firmly seated on all 4 PCB board supports. Figure 5 Mounting the Service Light Board Important: The service light board must be properly seated on the PCB board supports, otherwise cross-talk between the LED and photo transistor may occur, hampering the operation of the service light kit.
- Page 5 6. Ensure that there is an adhesive reflector strip on the inside of the door and that it aligns with the two light pipes when the door is closed. Figure 7 Verifying the Reflective Strip Testing the Installation 1. With the cabinet door and service tray still open, examine the state of the LEDs in the interior of the cabinet. The LEDs should be illuminated.
- Page 6 • Actions performed immediately before the problem occurred. • Any additional comments. If you require assistance with this or any other TouchTunes product, please call or email technical support. We value your comments. TouchTunes Interactive Networks TouchTunes Interactive Networks Technical Support...
