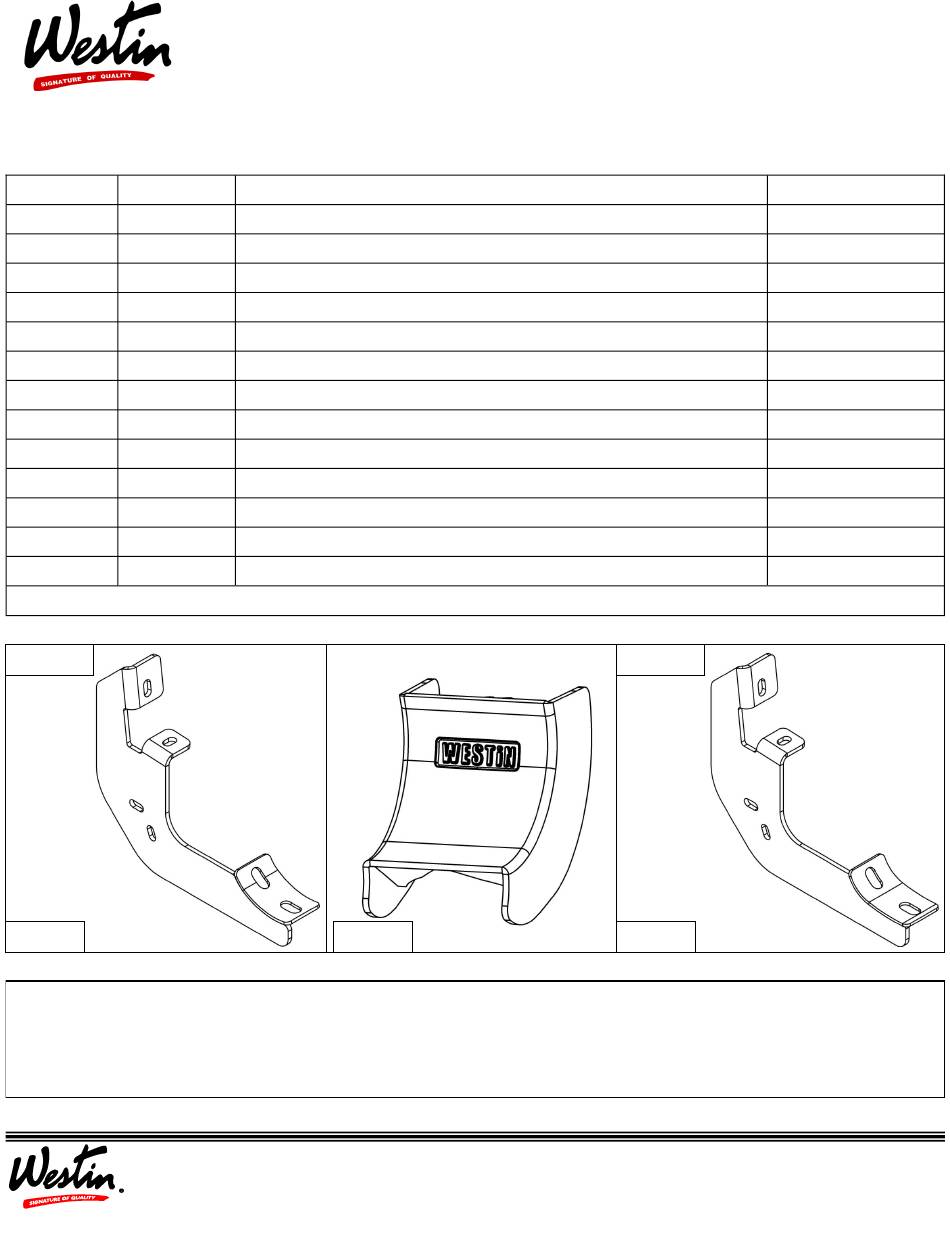

AUTOMOTIVE PRODUCTS,
ITEM
QUANTITY
1,2
2
3
6
4
12
5
12
6
12
7
12
8
12
9
12
10
12
11
12
12
24
13
12
14
6
ANTI-SEIZE LUBRICANT MUST BE USED ON ALL STAINLESS STEEL FASTENERS TO PREVENT THREAD DAMAGE AND GALLING
Pro Traxx 4
ITEM 3
1. Remove contents from box, verify if all parts listed are present and free from damage.
Carefully read and understand all instructions before attempting installation.
Failure to identify damage before installation could lead to a rejection of any claim.
Westin Automotive Products, Inc.
320 W. Covina Blvd
San Dimas, Ca. 91773
ECO #: W16-0069
P.N.: 75-3085-RevB
INSTALLATION INSTRUCTIONS
PRO TRAXX 4 & 5 OVAL TUBE STEP BAR
APPLICATION:
2015-+ Chevrolet Colorado / GMC Canyon Extended / Crew Cab
PART NUMBER:
21-24000, 21-24005, 21-24010, 21-24015,
21-54000, 21-54005, 21-54010, 21-54015
STEP BAR, DRIVER(1) AND PASSENGER(2)
M8 HEX CAP SCREW (YELLOW ZINC)
M8 FLAT WASHER (YELLOW ZINC)
M8 SPLIT LOCK WASHER (YELLOW ZINC)
M10 INTERNAL TOOTHED LOCK WASHER (BLACK ZINC)
M10 FLAT WASHER (BLACK ZINC)
M10 BUTTON HEAD SCREW (BLACK ZINC)
M6 HEX HEAD CAP SCREW (BLACK ZINC)
ITEM 14
DESCRIPTION
MOUNTING BRACKETS
M8 U-CLIP NUT (YELLOW ZINC)
M6 FLAT WASHER (BLACK ZINC)
M6 NYLON NUT (BLACK ZINC)
PLASTIC BRACKET COVER
PROCEDURE
1
Pro Traxx 5
ITEM 3
Thank you for choosing Westin products
for additional installation assistance please call
Customer Service (800) 793-7846
www.westinautomotive.com
TOOLS NEEDED
13MM SOCKET
ALLEN WRENCH
SOCKET EXT.
HEX HEY TOOL
RATCHET
TORQUE WRENCH
DATE: 10/7/16
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Westin PRO TRAXX 4
Summary of Contents for Westin PRO TRAXX 4
- Page 1 INSTALLATION INSTRUCTIONS PRO TRAXX 4 & 5 OVAL TUBE STEP BAR APPLICATION: 2015-+ Chevrolet Colorado / GMC Canyon Extended / Crew Cab PART NUMBER: AUTOMOTIVE PRODUCTS, 21-24000, 21-24005, 21-24010, 21-24015, 21-54000, 21-54005, 21-54010, 21-54015 ITEM QUANTITY DESCRIPTION TOOLS NEEDED STEP BAR, DRIVER(1) AND PASSENGER(2)
- Page 2 See Figure 5. Note: Dr iver side step tube will be packaged in a clear poly tube and passenger side will be packaged in a red poly tube, the Westin logo should face outward when installed. 7. Align and adjust as necessary then torque hardware: M8 to 15-18 ft-lbs., M10 to 30-35 ft-lbs., and M6 to 5-7 ft-lbs.
- Page 3 STAINLESS STEEL PRODUCTS CAN BE CLEANED WITH MILD SOAP AND WATER. STAINLESS STEEL POLISH SHOULD BE USED TO POLISH SMALL SCRATCHES. GLOSS BLACK FINISHES SHOULD BE CLEANED WITH MILD SOAP AND WATER. Westin Automotive Products, Inc. Thank you for choosing Westin products 320 W. Covina Blvd for additional installation assistance please call San Dimas, Ca. 91773 Customer Service (800) 793-7846 www.westinautomotive.com...
- Page 4 AVOID PERSONAL INJURY. MAXIMUM TOWING/CARRYING CAPACITY: The Westin Receiver Hitches will have a visible tow rating label affixed directly on the product. Us- er should never exceed the vehicle manufacturers maximum tow and weight rating regardless of the capacity of the hitch. FAILURE TO FOLLOW THESE GUIDELINES WILL VOID THE WESTIN WARRANTY AND MAY RESULT IN PERSONAL INJURY AND/OR INJURY TO OTHERS AS WELL AS VEHICLE DAMAGE.
