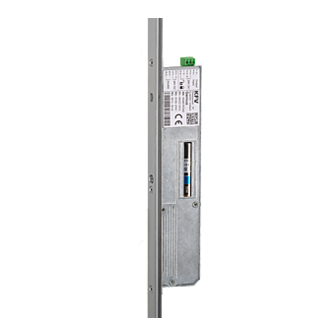

Electromechanical multi-point lock
Hide thumbs Also See for GENIUS 2.2:
Table of Contents

Advertisement

Quick Links

ASSEMBLY INSTRUCTIONS
DRIVE
GENIUS 2.2
Electromechanical multi-point lock
Window systems
Door systems
Comfort systems

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GENIUS 2.2 and is the answer not in the manual?

Questions and answers

Related Manuals for Siegenia GENIUS 2.2

Summary of Contents for Siegenia GENIUS 2.2

  • Page 1 ASSEMBLY INSTRUCTIONS DRIVE GENIUS 2.2 Electromechanical multi-point lock Window systems Door systems Comfort systems...

  • Page 3: Table Of Contents

    3.1.2 Dimensions of the auxiliary boxes ....13 FUNCTIONS ..........14 Connections and operating elements GENIUS 2.2 (EA / CA) ........14 Connections and operating elements GENIUS 2.2 (EB / CB) ........15 Cable and wiring diagram ......16 INSTALLATION .........19 Installation conditions and requirements ...

  • Page 4: About This Documentation

    The GENIUS 2.2 is an electromechanical multi-point lock for the motorised locking and unlocking of doors. LED off These operating instructions are an integral part of the GENIUS 2.2 and must be accessible to the target group LED lights up all the time. Producer LED flashes KFV Karl Fliether GmbH &...

  • Page 5: Safety

    • knowledge of the applicable standards and direc- Intended use tives • The GENIUS 2.2 is suitable for installation in timber, • knowledge of applicable testing regulations aluminium, steel and PVC entrance doors. • knowledge and skills with regard to material pro- •...

  • Page 6: Protective Equipment

    DRIVE - Assembly instructions GENIUS 2.2, Electromechanical multi-point lock Protective equipment Warning notes used You will need the following protective equipment when DANGER assembling a multi-point lock: The signal word "Danger" designates an immediately • Safety shoes threatening danger. If this hazard is not prevented, it •...

  • Page 7: Content

    DRIVE - Assembly instructions GENIUS 2.2, Electromechanical multi-point lock Foreseeable improper use NOTICE NOTICE Damage to the lock and the frame parts Damage to the main lock The lock can be damaged if the locking elements are in the locking position when the door is open.
  • Page 8 DRIVE - Assembly instructions GENIUS 2.2, Electromechanical multi-point lock NOTICE Damage to the main lock The main lock can be damaged if the lever handle and key are operated at the same time. • Never activate the key and the lever handle simultaneously.

  • Page 9: Components And Variants

    DRIVE - Assembly instructions GENIUS 2.2, Electromechanical multi-point lock Components and variants GENIUS 2.2 Components Auxiliary boxes Main lock Electromechanical drive Variants of auxiliary boxes GEN AS 2600 GEN AS 2500 GEN AS 2300 Variants of functions: GENIUS version Functions Opening via the profile cylinder ●...

  • Page 10: Size Variants And Dimensions

    DRIVE - Assembly instructions GENIUS 2.2, Electromechanical multi-point lock Size variants and dimensions Size Suitable for sash vari- rebate height ants PZ dimension 92 B296* 2170 1020 1505 - 1754 B298 2170 1020 1755 - 1880 B001 2170 1020 1881 - 2170...

  • Page 11: Dimensions Of The Main Lock Cases

    DRIVE - Assembly instructions GENIUS 2.2, Electromechanical multi-point lock 3.1.1 Dimensions of the main lock cases Main lock type K, backset 35-55, PZ dimension 92 Main lock type F, backset 55-80, PZ dimension 72 Backset [D] [1] = omitted for multi-point locks in versions CA and Backset [D] [2] = 21.5 mm for version EA / 21.0 mm for version...
  • Page 12 DRIVE - Assembly instructions GENIUS 2.2, Electromechanical multi-point lock These main lock types can only be delivered in the EA and EB version. Main lock type K, backset 35-55, PZ dimension 88 Main lock type K, backset 35-50, PZ dimension 85...

  • Page 13: Dimensions Of The Auxiliary Boxes

    DRIVE - Assembly instructions GENIUS 2.2, Electromechanical multi-point lock 3.1.2 Dimensions of the auxiliary boxes H39.ELEKS013EN-00 02.2020 13/44 13/44...

  • Page 14: Functions

    Terminal 4: input for external unlocking signal at + 24 V DC ≥ 1 seconds = opening process Button with menu LED for menu navigation to make all adjustments of the GENIUS 2.2 A. • Status LED to indicate the current operating status • Magnetic sensor...

  • Page 15: Connections And Operating Elements Genius 2.2 (Eb / Cb)

    Terminal 7: feedback function for the locking status indicator (adjustable via menu) Button with menu LED for menu navigation to make all adjustments of the GENIUS 2.2 B. Status LED to indicate the current operating status; magnetic sensor Magnet (frame side): the magnet must be positioned centrally in relation to the magnetic sensor [4] (permissible vertical tolerance ±...

  • Page 16: Cable And Wiring Diagram

    • With a fixed connection at the 230-V AC mains power supply, switch off the safety device at the mains connection. GENIUS 2.2 via SI-BUS connection and power GENIUS 2.2 via SI-BUS connection GENIUS 2.2 via analogue connection supply via analogue connection...
  • Page 17 DRIVE - Assembly instructions GENIUS 2.2, Electromechanical multi-point lock SI-BUS connection GENIUS 2.2 (EA / CA) Analogue connection GENIUS 2.2 (EA / CA) SI-BUS system B C D 0 1 2 3 4 7 B C D 0 1 2 3 4 7...
  • Page 18 DRIVE - Assembly instructions GENIUS 2.2, Electromechanical multi-point lock SI-BUS connection GENIUS 2.2 (EB / CB) Analogue connection GENIUS 2.2 (EB / CB) SI-BUS system B C D 0 1 2 3 4 7 B C D 0 1 2 3 4 7...

  • Page 19: Installation

    DRIVE - Assembly instructions GENIUS 2.2, Electromechanical multi-point lock Installation Screw recommendations For the assembly, choose the screw lengths and screw heads Installation conditions and requirements to ensure that an adequate intervention in the material and flushness with the faceplate of the multi-point lock and the frame Local building laws and regulations must be observed parts are ensured.

  • Page 20: Assembly Of Sash Side

    DRIVE - Assembly instructions GENIUS 2.2, Electromechanical multi-point lock Assembly of sash side 5.3.1 Change DIN orientation of the latch PZ 2 f Insert a PZ2 screwdriver through the hole at the rear of the gear box. f Loosen the locking screws of...

  • Page 21: Milling The Door Leaf

    DRIVE - Assembly instructions GENIUS 2.2, Electromechanical multi-point lock 5.3.2 Milling the door leaf For determination of position and dimensions, see chapter 3.1. WARNING Danger of injury from swarf flying around rapidly During milling work, there will be swarf flying around.
  • Page 22 DRIVE - Assembly instructions GENIUS 2.2, Electromechanical multi-point lock GENIUS 2.2 [1] 16,0 mm [2] 55.0 mm [3] 270.0 mm Lever handle and cylinder Lever handle Profile cylin- Round cylin- milling der milling der milling [1] Ø 18.0 mm [2] Ø 18.0 mm [3] 21.0 mm...

  • Page 23: Routing And Connecting Cables

    Only use shielded cables in order to prevent interferences, which have an effect on the KFV multi-point lock with GENIUS 2.2, or originate from the KFV multi-point lock with GENIUS 2.2.

  • Page 24: Via The Analogue Connection

    7: output Feedback contact White Blue Shield for power supply Establish plug connection for GENIUS 2.2 A f Establish a plug connection with the KFV cable [1] and the green PTR plug [2]. f Tighten the screws of the PTR...
  • Page 25 DRIVE - Assembly instructions GENIUS 2.2, Electromechanical multi-point lock Establish plug connection for GENIUS 2.2 B f Establish a plug connection with the KFV cable [1] and the green PTR plug [2]. f Tighten the screws of the PTR plug by hand so that the wires of the cable will not be able to loosen themselves.

  • Page 26: Screwing On The Multi-Point Lock

    DRIVE - Assembly instructions GENIUS 2.2, Electromechanical multi-point lock Screwing on the multi-point lock f Insert the multi-point lock in the milled door leaf. f Adjust the multi-point lock to the handle spindle [1]: Ensure when you insert the GENIUS...

  • Page 27: Frame Side Assembly

    DRIVE - Assembly instructions GENIUS 2.2, Electromechanical multi-point lock Frame side assembly Milling the frame For determination of position and dimensions, see chapter 3.1. WARNING Danger of injury from swarf flying around rapidly During milling work, there will be swarf flying around.

  • Page 28: Assembling The Frame Parts And Magnet

    6.2.1 Variants of magnet The GENIUS 2.2. detects whether the door is open or shut via the magnetic sensor. The magnetic sensor is triggered by the opposite magnets on the frame side. Never allow the magnet to come into direct contact with the faceplate. This would magnetise the faceplate and the drive rods behind it.

  • Page 29: Mounting The Striker Plates In Pvc And Aluminium Frames

    DRIVE - Assembly instructions GENIUS 2.2, Electromechanical multi-point lock 6.2.2 Mounting the striker plates in PVC and aluminium frames f Insert the striker plates into the intended millings. f Then screw the striker plates to the door frame: Insert the oval magnet bush with the magnet pointing upwards.

  • Page 30: Mounting The Striker Plates In Timber Frame

    DRIVE - Assembly instructions GENIUS 2.2, Electromechanical multi-point lock 6.2.3 Mounting the striker plates in timber frame f Insert the striker plates into the intended millings. f Then screw the striker plates to the door frame: The round magnet with bushing can be fitted directly in the timber frame.

  • Page 31: Mounting The Locking Rail

    DRIVE - Assembly instructions GENIUS 2.2, Electromechanical multi-point lock 6.2.4 Mounting the locking rail f Insert the locking rail plates into the intended millings. f Then screw the locking rail to the door frame: If using locking rails, the round mag- net with bushing is used.

  • Page 32: Adjustment Of The Airgap

    DRIVE - Assembly instructions GENIUS 2.2, Electromechanical multi-point lock 6.2.5 Adjustment of the airgap Observe the assembly and operating instructions for the door hinges. f In accordance with the enclosed assembly instruc- tions of the door hinge manufacturer, adjust the airgap [1] between the faceplate and frame part.

  • Page 33: Adjustment Of The At Piece

    DRIVE - Assembly instructions GENIUS 2.2, Electromechanical multi-point lock 6.2.6 Adjustment of the AT piece When the door is closed, the latch must engage in the AT piece with as little play as possible. The AT piece is hori- zontally adjustable for this purpose.
  • Page 34 DRIVE - Assembly instructions GENIUS 2.2, Electromechanical multi-point lock T 10 2.5 Nm f Tighten the two adjustment screws. f Close the door and check wheth- er the latch engages properly. Repeat the adjustments if neces- sary. 34/44 02.2020 H39.ELEKS013EN-00...

  • Page 35: Correct The Q Adjustment

    DRIVE - Assembly instructions GENIUS 2.2, Electromechanical multi-point lock 6.2.7 Correct the Q adjustment The Q adjustment is moved laterally by ± 2.5 mm via two eccentric screws [1]; this lateral adjustment changes the contact pressure of the door on the frame seal.
  • Page 36 DRIVE - Assembly instructions GENIUS 2.2, Electromechanical multi-point lock f Turn the two eccentric screws [1] to the left or right up to 90°. T 10 1.3 Nm f Tighten the three fixing screws of the Q adjustment firmly. f Close the door and lock with a double turn.

  • Page 37: Functional Test

    • Adhere to the screw torque specified by the producer • Check whether the profile cylinder complies with the specifica- tion in chapter 2.2. Check the locking and opening of the door Switch the GENIUS 2.2 multi-point lock to day mode (see operating instructions). Test point Description Action Close the door The door must engage into the frame.

  • Page 38: Check The Functioning Of The Optional

    7.4.3 Malfunction of the magnetic sensor If the GENIUS 2.2 does not move to the locking posi- tion, check the function of the magnetic sensor. To do this, open the door and hold a magnet to the magnetic sensor (see chapter 4.1 and 4.2).

  • Page 39: Manual Adjustment Of The Magnetic Sensor On Genius 2.2

    DRIVE - Assembly instructions GENIUS 2.2, Electromechanical multi-point lock Manual adjustment of the magnetic sensor on GENIUS 2.2 f proceed to the GENIUS 2.2 menu. f To proceed to the menu, press the button on the GENIUS 2.2 for 8 seconds until the menu LED magenta lights up.
  • Page 40 If the magnetic sensor has been successfully adjusted, the lock- ing elements will move to the locking position. f The status LED lights up green. Further information on operation of the GENIUS 2.2 can be found in the enclosed operating instructions. 40/44 02.2020 H39.ELEKS013EN-00...

  • Page 41: Technical Specifications

    DRIVE - Assembly instructions GENIUS 2.2, Electromechanical multi-point lock Technical specifications Environmental conditions Ambient temperature range in the door (according to DIN - 25 °C to + 70 °C EN 14846 class K,M,L,N,P) Relative humidity 20% to 80% (non-condensing) Protection class...

  • Page 42: Disposal

    DRIVE - Assembly instructions GENIUS 2.2, Electromechanical multi-point lock Disposal • The multi-point lock and the optional accessories should not be disposed of with household waste. Comply with the current local and national regula- tions. • The packaging consists of raw materials that can be recycled and can be taken to the local recycling disposal site.

  • Page 43: Ec Declaration Of Incorporation

    Siemensstr. 10 D - 42551 Velbert declares that the product: Device type: Designation of type: Electromechanical drive for mul- GENIUS 2.2 A / B / PANIC ti-point locks meets the following fundamental requirements: EMC Directive 2014/30/EU EN 61000-6-2:2005 + Cor.: 2005*...
