Front Panel - Daikin FTKS09JV2S Service Manual

Si041252EE

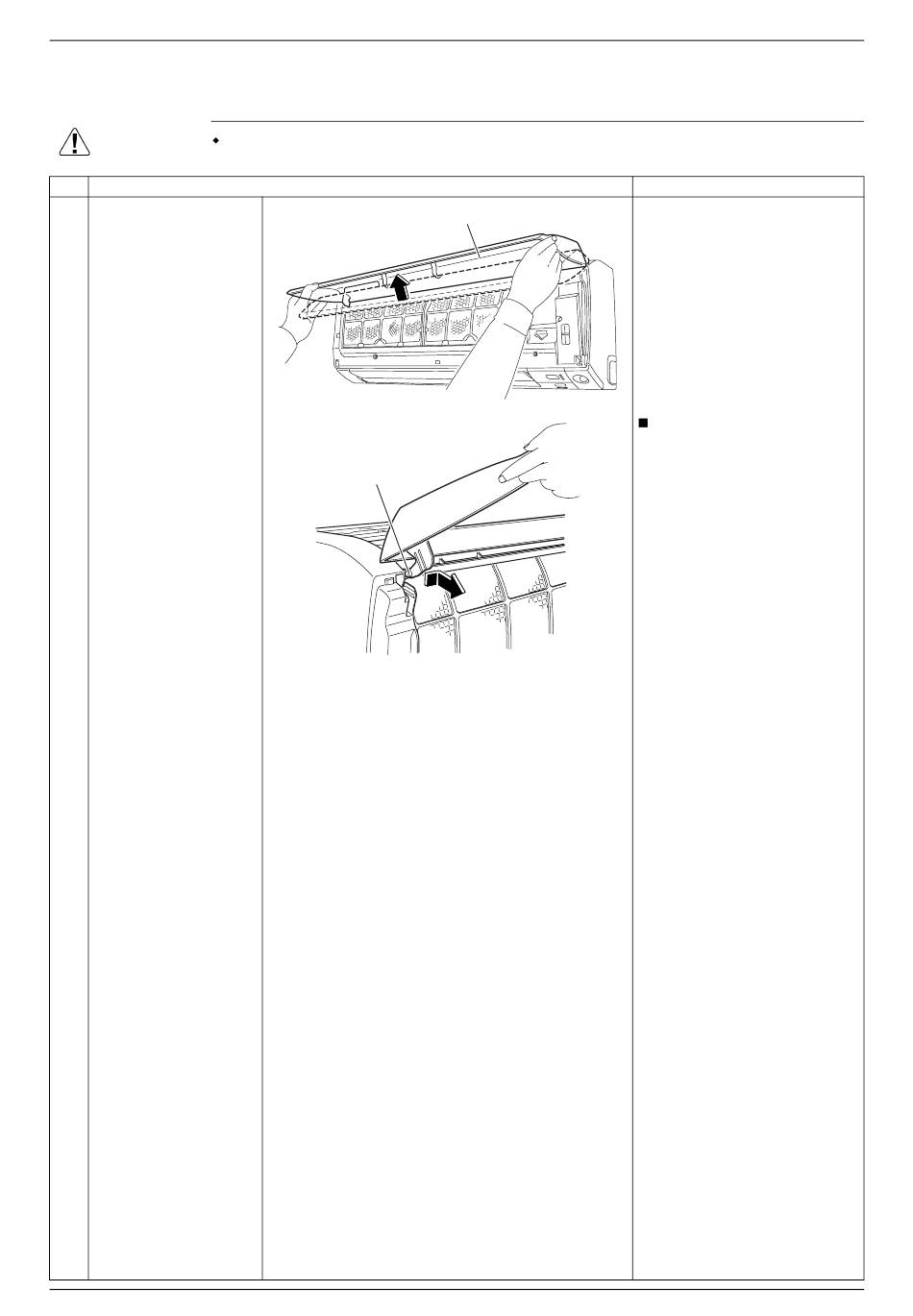

2. Front Panel

Warning
Step
1 Open the front panel
over the position where
it stops.
2 Slide the front panel to
the right and release
the left rotary shaft.
3 Release the right rotary
shaft in the same way.
4 Remove the front panel.
Removal Procedure
Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Procedure
Rotary shaft
Front panel
(R7906)
(R7907)
Front Panel
Points
When reassembling the front
panel, fit the right and left
rotary shafts one by one into
the grooves and fully push
them into position.
