Air Filters

1. Air Filters
Warning
Step

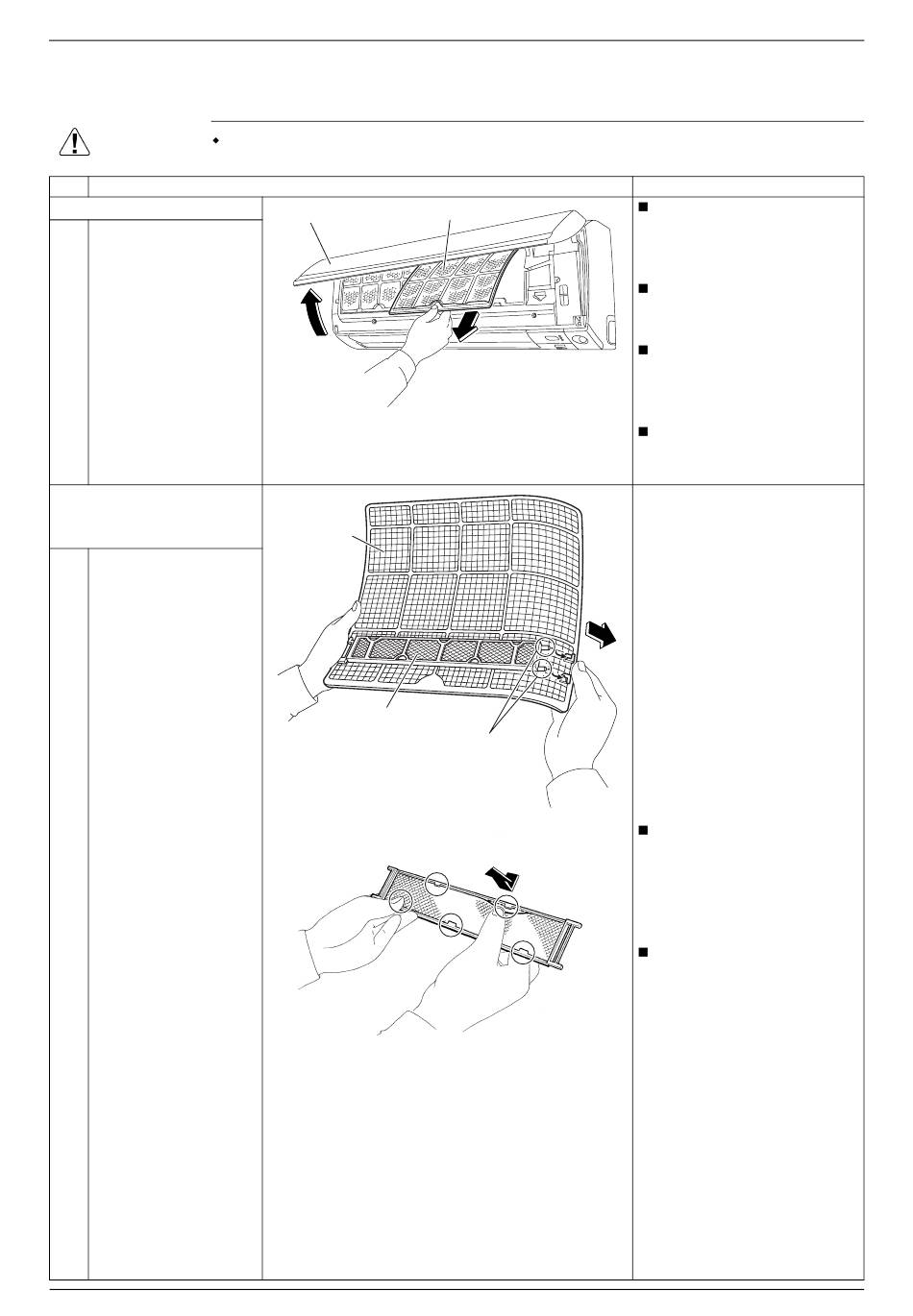

1. Remove the air filters.
1 Open the front panel.
2 Release the air filter
from the hooks of the
front panel. (2 for each
filter.)
3 Pull out the air filter
downward and remove
it.
2. Remove the Titanium
apatite photocatalytic air-
purifying filters.
1 Remove the Titanium
apatite photocatalytic
air-purifying filter ASSY
by unfastening the 2
projections from the
back of the air filter.
2 Unfasten the 5 hooks
and remove the
Titanium apatite
photocatalytic air-
purifying filter from its
frame.
2
Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Procedure
Front panel
Air filter
Titanium apatite
photocatalytic
air-purifying filter ASSY
Air filter
(R21149)
Projection
(R17096)
(R13174)
Si041252EE
Points
The air filter is not marked
for difference between the
right and left sides.
Insert the air filter with the
"FRONT" mark faced up.
The air filter can be set
easily by inserting it along
the guides.
Be sure to insert the hooks
when reassembling the air
filter.
To prevent the damage, do
not remove the Titanium
apatite photocatalytic air-
purifying filter from the frame
when cleaning it.
The Titanium apatite
photocatalytic air-purifying
filter is not marked for
difference between the right
and left sides.
