Brunswick StringPin Service Manual page 98

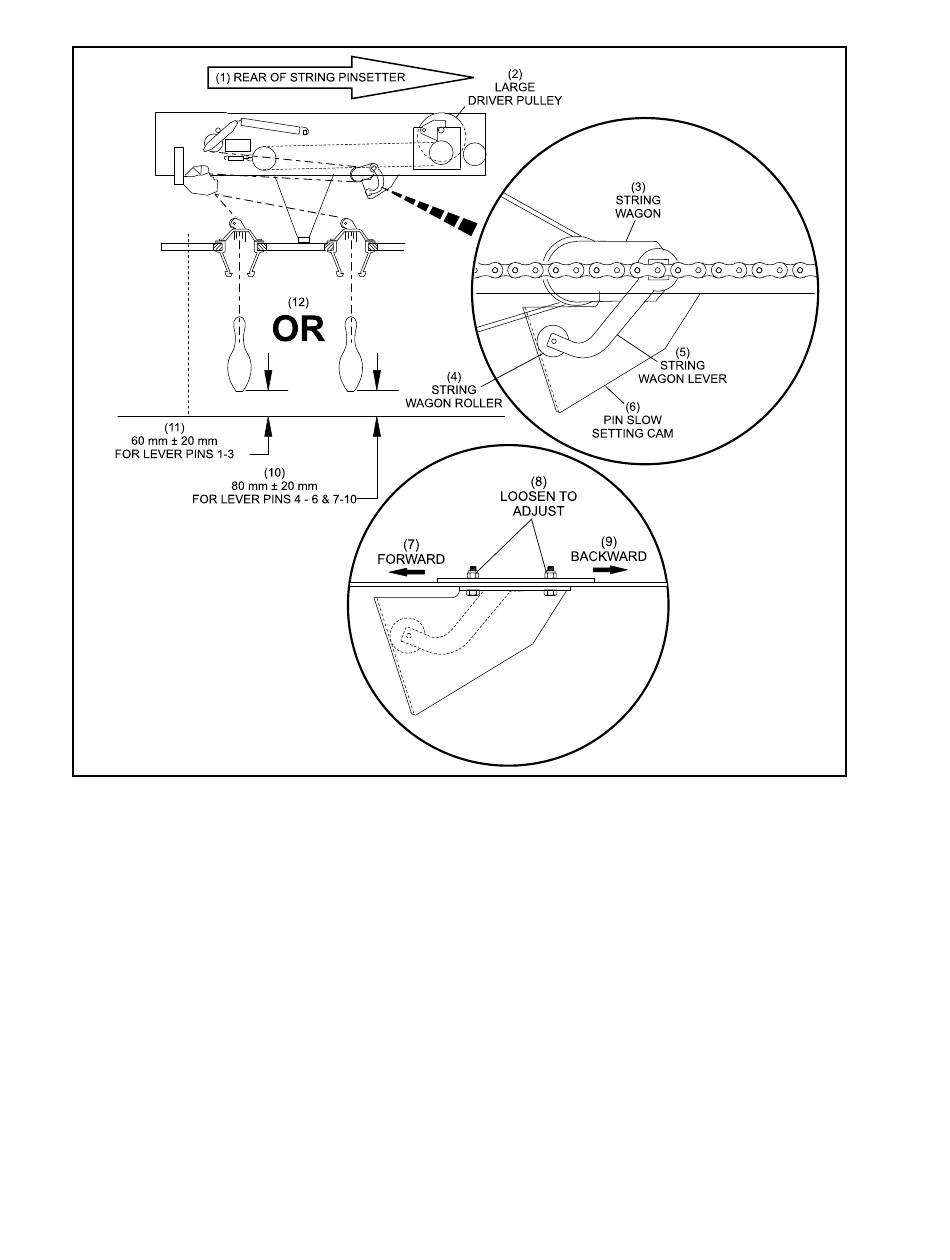

Figure 4-11. Slow Setting Adjustment
(1) REAR OF STRING PINSETTER (2)
(4) STRING WAGON ROLLER
(7) FORWARD
(10) 80 mm ± 20 mm
FOR LEVER PINS 4-6 AND 7-10
4-12
LARGE DRIVE PULLEY
(5) STRING WAGON LEVER
(8) LOOSEN TO ADJUST
(11) 60 mm ± 20 mm FOR
LEVER PINS 1-3
(3) STRING WAGON
(6) PIN SLOW SETTING CAM
(9) BACKWARD
(12) OR
Section 4: Adjustments
