Power Supply

(3)
POWER
INDICATOR

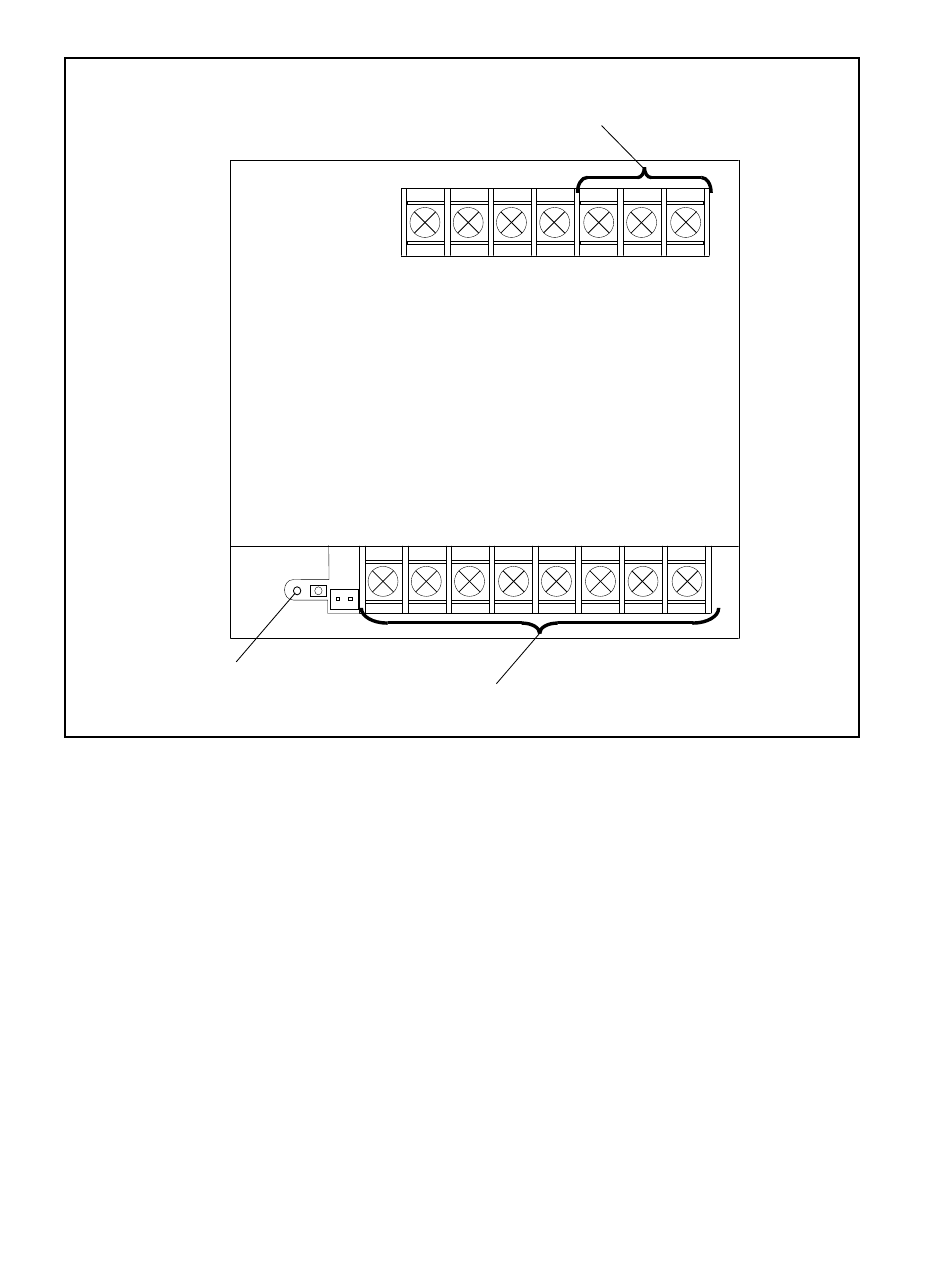

Figure 3-26. Power Supply
(1) A/C Input - Terminals used for the power input to the Power Supply. Terminals used by the
Controller include:
FG - Ground
N - Neutral
L - Line
(2) 24VDC Output - Output connections 24VDC. Terminals used by the Controller include:
V+ 24 VDC
V- GND
(3) Power Indictaor - This LED lights to indicate the power supply is "ON".
3-36
RC RCG POK P
V- V- V- V- V+
(2)
24VDC
OUTPUT
(1)
A/C
INPUT
FG N L
V+ V+ V+
Section 3: Pinsetter Electronics
