BALL DETECTORS

A ball detector is used to determine when a ball enters the pinsetter. The signal is then used to
increment the ball count for the bowling frame and cycle the pinsetter if a pin was knocked over or if it

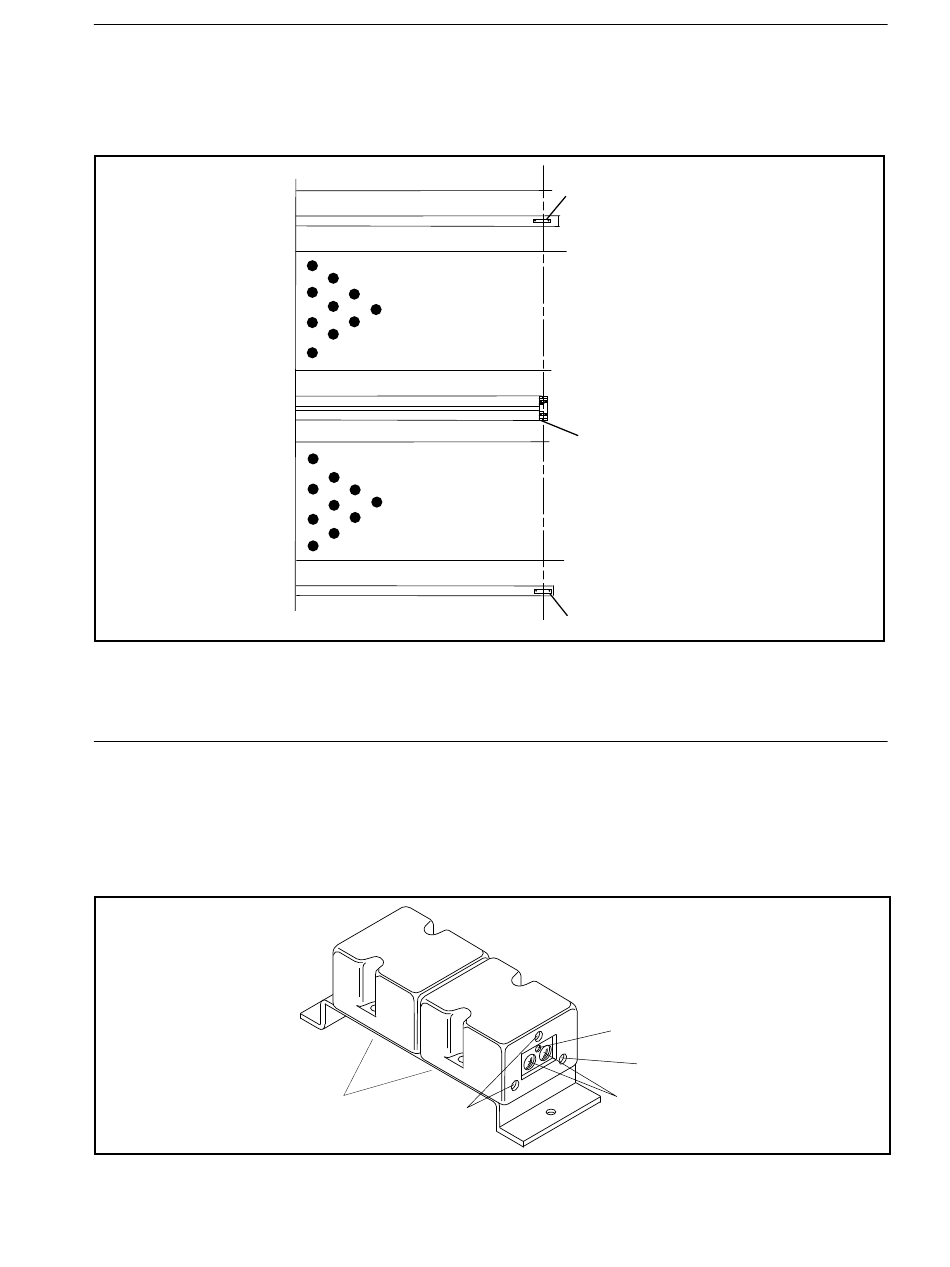

was the last ball in the frame. Refer to Figure 3-33.
Figure 3-33. StringPin Ball Detectors
(1) REFLECTORS

Ball Detector Unit

The pinsetter ball detector unit is made up of an infrared transmitter and receiver. The red LED (Light
Emitting Diode) mounted on the ball detect is "on" when the beam is not being received back from the
reflector. This indicates a ball or some object is in the beam's path or there is an alignment problem. An
Up/down and side to side alignment adjustments are available on the unit. Refer to Figure 3-34.
BALL DETECT
Figure 3-34. Pinsetter Ball Detector
(1) BALL DETECT
(4) SENSOR ADJUSTMENT
Section 3: Pinsetter Electronics
(2) BALL DETECT
(1)
(4)
SENSOR
ADJUSTMENT
(2) LEDS
(1)
REFLECTORS
(2)
BALL DETECT
(1)
REFLECTORS
(2)
LEDS
(4)
SENSOR
ADJUSTMENT
(3)
SENSORS
(3) SENSORS
3-43
