Section 2 - Overview

This manual is designed to help you service, repair, and perform preventive maintenance on your
pinsetters in a safe and efficient manner. Prior to working on one of these pinsetters, you should read the
safety information and be familiar with the Safety Requirements located at the beginning of the manual.
This manual also provides troubleshooting guidelines that will help reduce downtime and can be used
to provide years of reliable operation of your pinsetters.

OPERATION AND CYCLES

Turning the Pinsetter On/Off

The pinsetter can be turned off using the Stop/Run switches located at the back or front of each
individual machine or on the String Pin Controller box. Always turn the Pinsetter off before working
on the machine. If internal service work is to be performed, turn off the main power switch and use an
approved lockout device on the main power switch to prohibit the machine from being turned on. Refer
to Figure 2-1
(1)
STOP/RUN
SWITCH
(2)
(4)
MAIN
START
(1)
(1)
POWER
BUTTON
STOP/RUN
STOP/RUN
SWITCH
SWITCH
(3)
STRINGPIN
(1)
CONTROLLER
STOP/RUN
SWITCHES

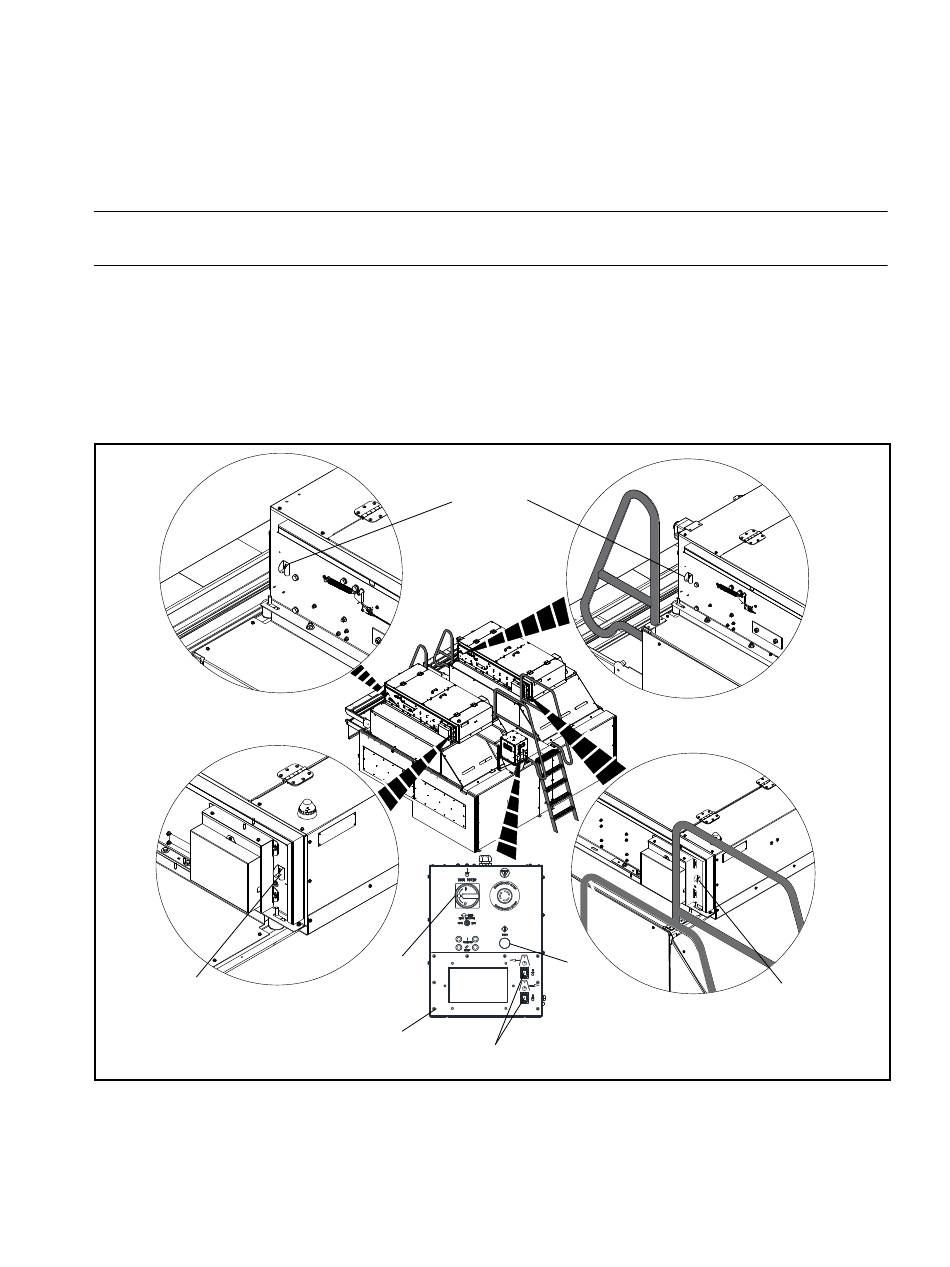

Figure 2-1. Pinsetter On/Off Control
(1) STOP/RUN SWITCH (2) MAIN POWER (3) STRINGPIN CONTROLLER
