Pinspot Menu

The Pinspot Menu allows the operator to set any pin combination on the pindeck. Touch anywhere in
the pin triangle on the Main screen to display the Pinspot screen. Refer to Figure 3-13.
NOTE: The Pinsetter Mode Menu is only available when the Stop/Run switch for the pinsetter is
in the RUN position and the pinsetter is turned ON.
(1)
RUN
MODE
(2)
SELECT PINS
FOR
PINSPOT
MENU
(3)
UNSELECTED
PIN( )
S
(4)
SELECTED
PIN( )
S

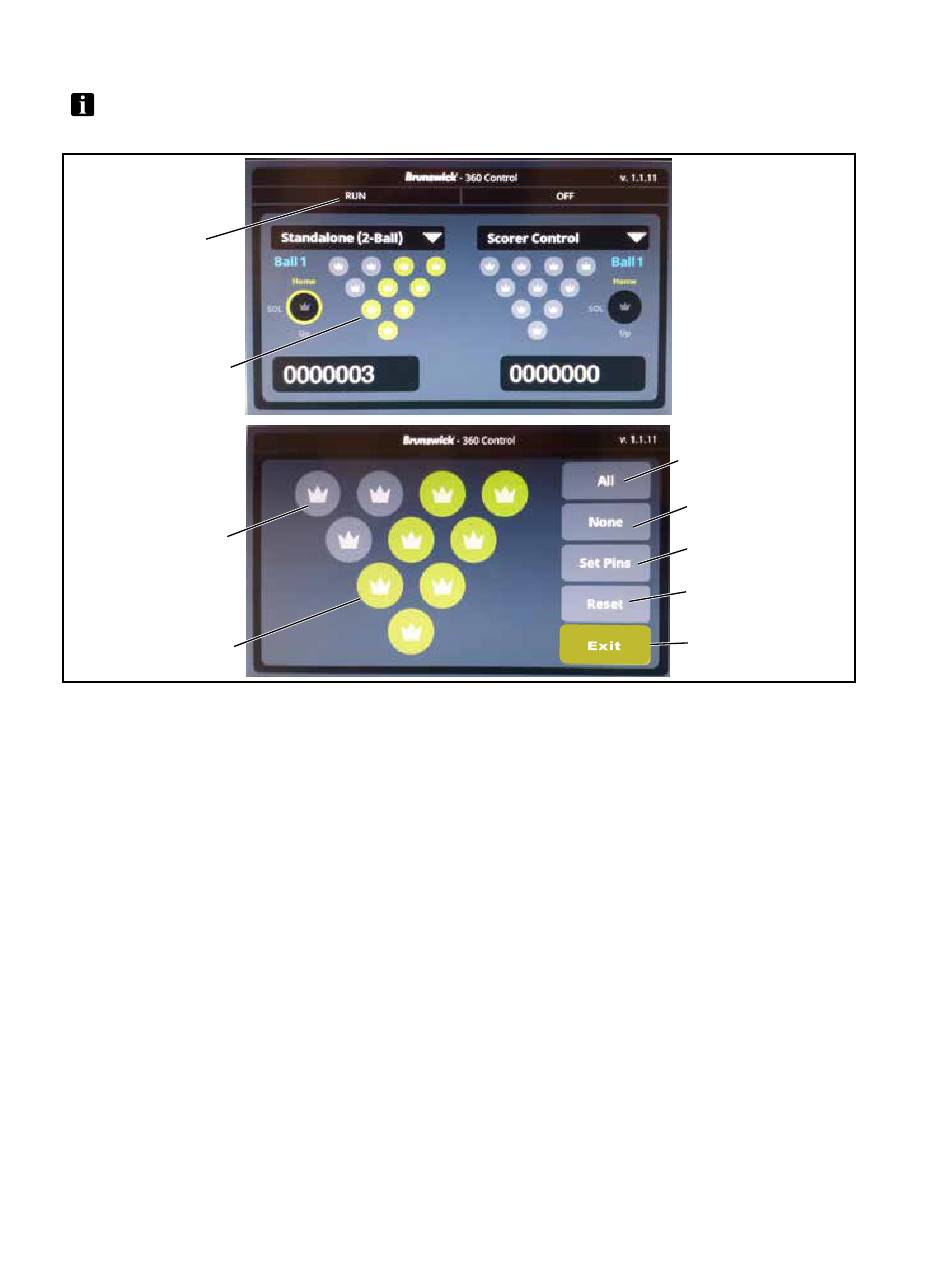

Figure 3-13. LCD Touchscreen - Pinspot Menu
The items that appear on the Pinspot Menu include:
(1) Run Mode - The pinsetter must be in the "Run" mode to access the Pinspot Menu.
(2) Select Pins for Pinspot Menu - Select the outlined pin triangle area to open the Pinspot menu
for the desired lane.
(3) Selected Pin(s) - A pin location that is highlighted in color indicates that the pin has been
selected to be placed on the pindeck when the "Set Pins" button in pressed.
(4) Unselected Pin(s) - A pin location that is NOT highlighted with color indicates that the pin has
been unselected and will not be placed on the pindeck when the "Set Pins" button in pressed.
(5) All - This selection allows the user to quickly select all pins.
(6) None - This selection allows the user to quickly un-select all pins.
(7) Set Pins - This selection causes the pinsetter to place the selected pins on to the pindeck.
(8) Reset - This selection allows the user to cycle (sequence) the pinsetter to the desired ball count.
(9) Exit - Select to exit the Pinspot Menu.
3-18
(5)
ALL
(6)
NONE
(7)
SET PINS
(8)
RESET
(9)
EXIT
Section 3: Pinsetter Electronics
