Pinsetter Mode - Drop Down Menu - Brunswick StringPin Service Manual

(4) Options Menu - The options menu allows the user to select language, detangle sequence,
pinsetter off state, delay after ball detect, ball return off delay, and ball return energy time out.
This menu is only available when both STOP/RUN switches on the Controller are in the STOP
position.
(5) Frame Counter - Frame counter display. This displays the total number of frames the pinstter
has run in selected mode.
(6) Present Set Pins - Graphical display of the pins that indicates the pins currently standing on the
pindeck and which pins are up.
(7) Pinsetter Mode - Pinsetter mode display and drop down menu mode selector. Use this menu to
select the desired pinstter mode. This drop down menu is only available when the STOP/RUN
switch on the Controller for the pinsetter is in the STOP position.
(8) Firmware Version - Display of the software version currently installed.

Pinsetter Mode - Drop Down Menu

The StringPin Pinsetter is programmed with several operating modes. These modes allow the operator
to run the machine in different states depending on the situation and/or the desired operation. The
modes are selected by using the drop down menu on the LCD Touchscreen. Refer to Figure 3-10 for
the drop down menu - versions 1.1.14 and prior. Refer to Figure 3-11 for the drop down menu - versions
1.1.15 and later.
NOTE: The Pinsetter Mode Menu is only available when the Stop/Run switch for the pinsetter is
in the STOP position.
Drop Down Menu - Versions 1.1.14 and Prior
(1)
MODE DROP
DOWN MENU
(2)
MODE
SELECTIONS

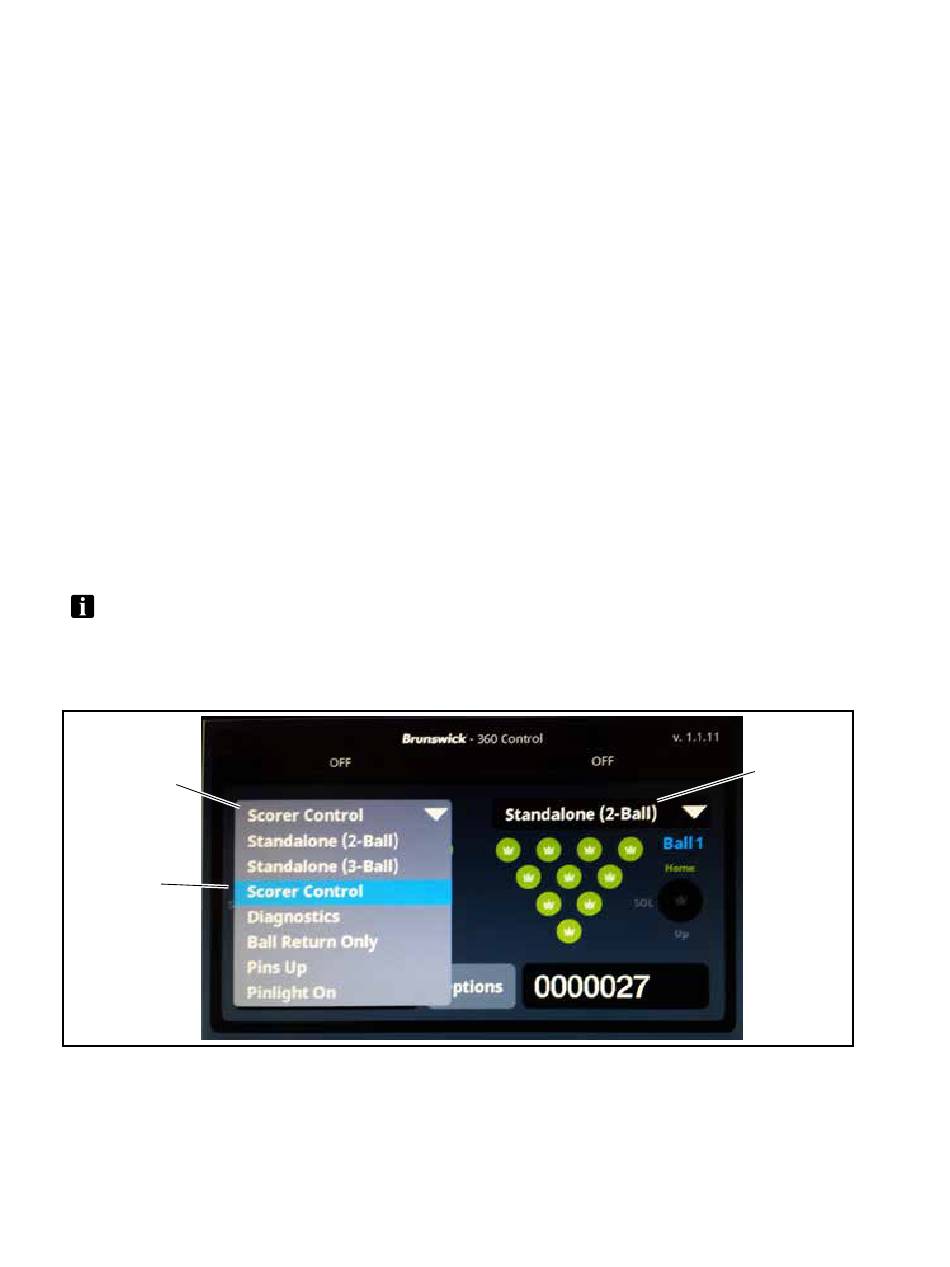

Figure 3-10. LCD Touchscreen - Pinsetter Mode Drop Down Menu - Versions 1.1.14 and Prior
3-12
(1)
MODE DROP
DOWN MENU
Section 3: Pinsetter Electronics
