3. Adjust (If Needed)
a. If adjustment is needed, turn the pinsetter off using either of the Run/Stop or the main
power switches.
b. Remove the cover from the switch cluster assembly.
c. Loosen the (4) bolts for the Cam Control Box. Refer to Figure 4-3.
NOTE: DO NOT REMOVE THE SCREWS. The screws only need to be loose to manually
adjust the cam.

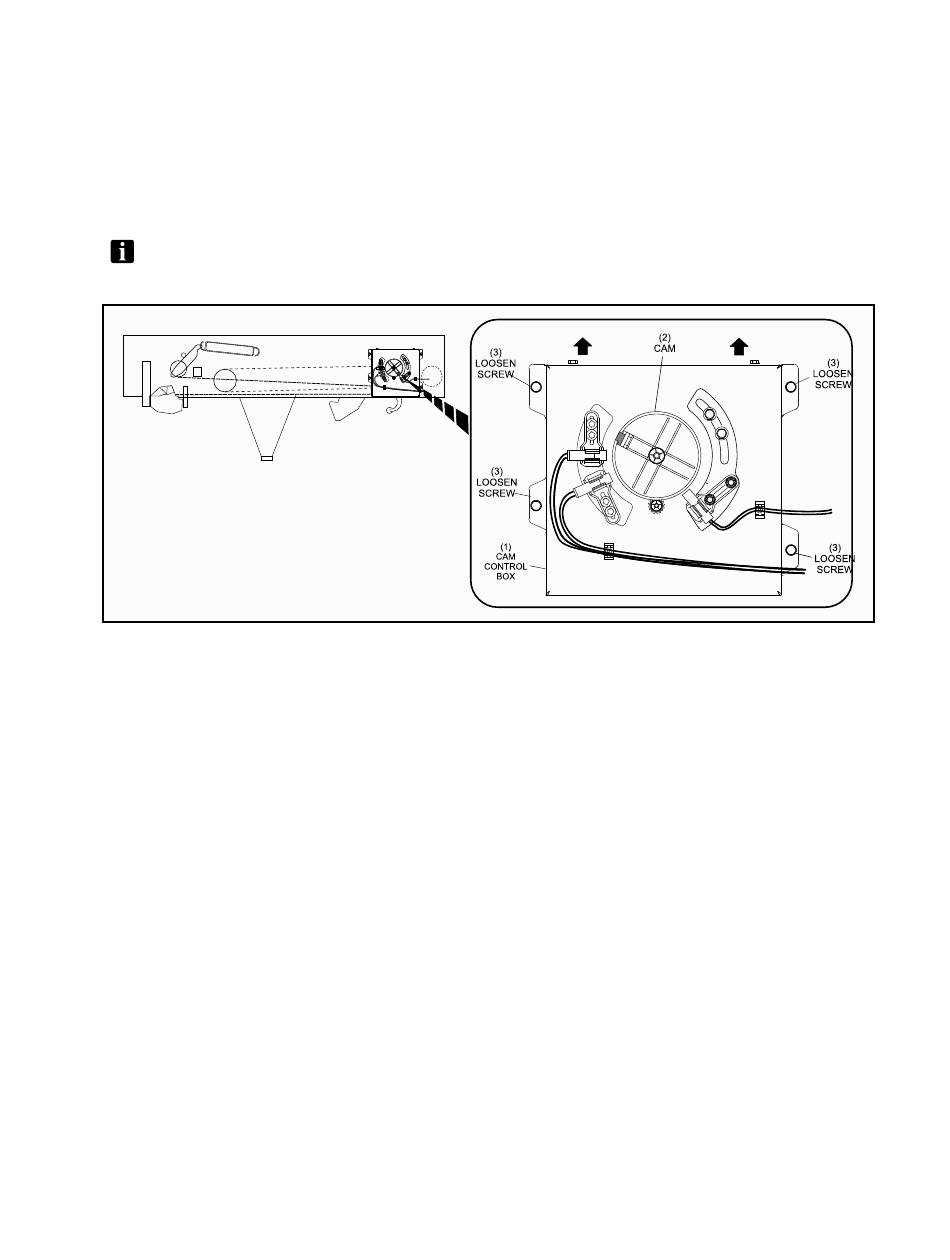

Figure 4-3. Cam Mounting Screws
(1) CAM CONTROL BOX
Section 4: Adjustments
(2) CAM (3) LOOSEN SCREW
4-3
