Summary of Contents for HIKVISION DS-TPM400 Series

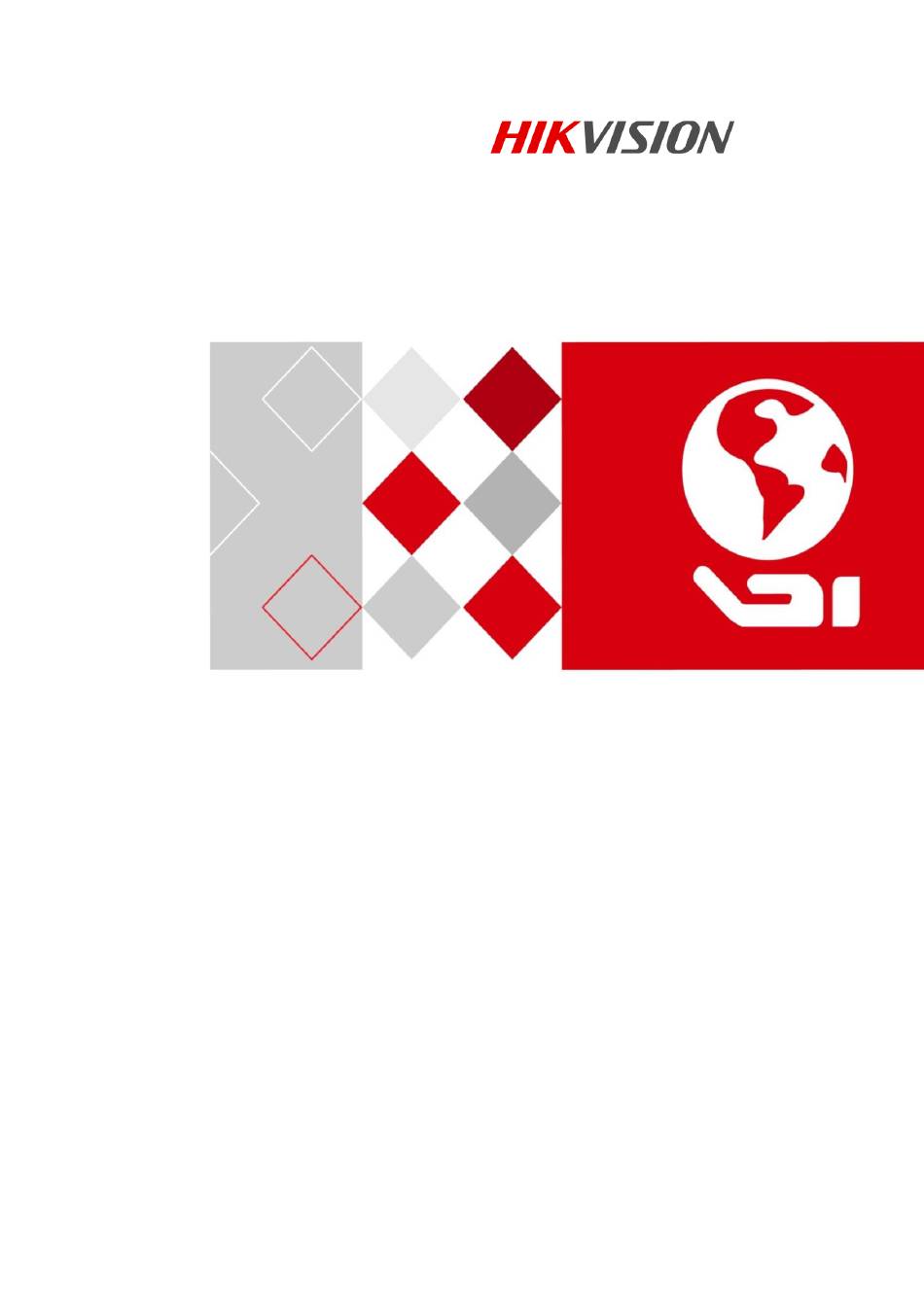

  • Page 1 Guidance Terminal User Manual UD06351B...
  • Page 2 Any and all information, including, among others, wordings, pictures, graphs are the properties of Hangzhou Hikvision Digital Technology Co., Ltd. or its subsidiaries (hereinafter referred to be “Hikvision”). This user manual (hereinafter referred to be “the Manual”) cannot be reproduced, changed, translated, or distributed, partially or wholly, by any means, without the prior written permission of Hikvision.
  • Page 3 Guidance Terminal User Manual Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Provides additional information to emphasize or supplement important points of the main text. Indicates a potentially hazardous situation, which if not avoided, could result in equipment damage, data loss,...
  • Page 4: Table Of Contents

    Guidance Terminal User Manual Table of Contents Chapter 1 Introduction ..................5 Description ...................... 5 Features and Functions ..................5 Application Scenario ..................6 Chapter 2 Installation ..................8 Structure Overview ..................8 2.1.1 Mainboard ........................8 2.1.2 Power Cord ........................9 Installation ......................
  • Page 5 Guidance Terminal User Manual Chapter 6 Playback ................... 55 Playback Interface ..................55 Searching Record Files ..................56 Chapter 7 Log ....................57 Searching Log Files ..................57 Chapter 8 Data Search ..................59 Chapter 9 Status ....................60 Statistics ..................62 Chapter 10 10.1 Viewing Parking Space Information ..............
  • Page 6: Chapter 1 Introduction

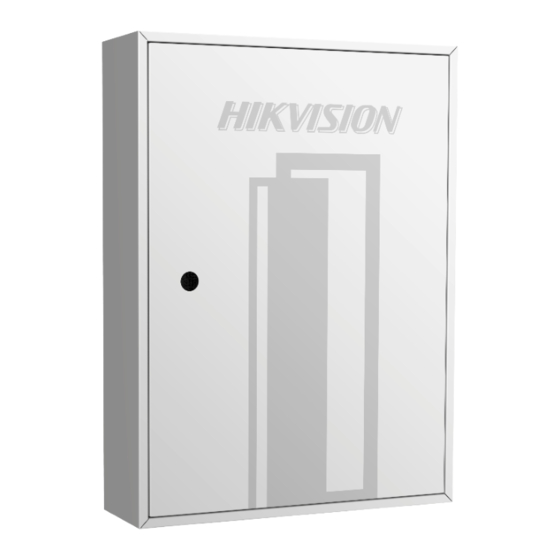

    Guidance Terminal User Manual Chapter 1 Introduction 1.1 Description DS-TPM400 series guidance terminal, based on the 4-core ARM Cortex-A17 processor, is a remarkable intelligent management system used for underground garage. Adopting the advanced parking guidance and find my car system, the...
  • Page 7: Application Scenario

     Optical fiber access, and HDMI output.  16 RJ45 network interfaces, connectable to up to 32 parking cameras. Among the 16 network interfaces, 8 interfaces support Hikvision PoE parking cameras connection. Another 4 1000M network interfaces are supported.  2 RS-485 serial ports to connect to the RS-485 control devices, such as guidance screen.
  • Page 8  Refer to User Manual of Parking Camera for the installation.  When PoE parking camera is connected to DS-TPM400-P guidance terminal, it can be powered by the network cable directly.  Only the Hikvision PoE parking camera of the fourth generation can be connected to the DS-TPM400-P guidance terminal.
  • Page 9: Chapter 2 Installation

    Name Description 10/100M: Power & 8 100M network interfaces, connecting to the Data Hikvision PoE parking cameras. 8 100M network interfaces for connecting to 10/100M parking cameras in hand-in-hand mode. They do not support PoE. 4 1000M network interfaces for platform software 10/100/1000M or PC access.
  • Page 10: Power Cord

    Guidance Terminal User Manual screen. 2-ch alarm input. IN and G are a pair of alarm input. 2-ch alarm output. C1 and NO1 are a pair of relay ALARM IN/OUT alarm output. F2+ and F3+ are I/O alarm outputs. You can connect corresponding alarm input/output devices according to needs.
  • Page 11 Guidance Terminal User Manual  The installation location should be large enough to contain the guidance terminal and accessory. Steps: 1. Rotate the key in the keyhole of the guidance terminal and open the cover of the machine body. If the guidance terminal supports PoE, it has 2 parts of power supply. The upper part is used to provide power for cameras and terminal with 12 VDC.
  • Page 12 Guidance Terminal User Manual 3. Drill 4 Ø8 screw holes on the wall according to the figure below and fasten the expansion screws into the drilled screw holes on the wall. 4-Ø 8 Unit:mm Figure 2-4 Drill Screw Holes 4. Align the four installation holes on the machine body to the four expansion screws on the wall to hook the terminal on the screws.
  • Page 13 Guidance Terminal User Manual Top Strong Current Top Weak Current Outlet Hole Outlet Hole Side Strong Current Outlet Hole Side Weak Current Outlet Hole Figure 2-5 Wiring 6. Close the cover and lock the key to finish the installation. Keyhole Figure 2-6 Lock the Key...
  • Page 14: Chapter 3 Activation And Login

    Guidance Terminal User Manual Chapter 3 Activation and Login 3.1 Network Connection You shall acknowledge that the use of the product with Internet access might be under network security risks. For avoidance of any network attacks and information leakage, please strengthen your own protection. If the product does not work properly, please contact with your dealer or the nearest service center.
  • Page 15: Activating Via Sadp

    Guidance Terminal User Manual  The default user account: admin. 3.2.1 Activating via SADP SADP software is enclosed on the compact disc. You can also download it from the company website. Steps: 1. Install SADP software. After launching the SADP software, it automatically searches the online devices every 1 minute from the subnet where your computer locates.
  • Page 16 Guidance Terminal User Manual Figure 3-3 Create the Password STRONG PASSWORD RECOMMENDED–A strong password ranges from 8 to 16 characters, and must contain at least two of the following categories: numbers, lowercases, uppercases and special characters. And we recommend you reset your password regularly, especially in the high security system, resetting the password monthly or weekly can better protect your product.
  • Page 17: Activating Via Web Browser

    Guidance Terminal User Manual Figure 3-4 Modify the Parameters 5. Enter the password of the admin account of the device in the Admin Password field and click Modify to modify the parameters.  When setting IP address, keep the device IP address and the computer IP address in the same network segment.
  • Page 18: Logging In Via Web Browser

    Guidance Terminal User Manual Figure 3-5 Activate through Web Browser 3.3 Logging in via Web Browser Purpose: You can log in to the guidance terminal via web browser for further operations such as live view, playback, local configuration, etc. Steps: 1.
  • Page 19 Guidance Terminal User Manual protect against security risks, such as the unauthorized access by others to the product that may prevent the product from functioning properly and/or lead to other undesirable consequences. 3. Click Login. Figure 3-6 Login Interface 4. You are required to change the default password after first login for security purpose.
  • Page 20 Guidance Terminal User Manual Figure 3-8 Install the Plug-in 6. After login, the interface is shown as below. Figure 3-9 Live View Window...
  • Page 21: Chapter 4 Configuration

    Guidance Terminal User Manual Chapter 4 Configuration Purpose: The parameters, such as protocol, stream type, network, alarm, etc., can be configured via the web browser. Click Configuration tab to enter the Configuration page. 4.1 Local Configuration Steps: 1. Go to Configuration > Local Configuration. Figure 4-1 Local Configuration 2.
  • Page 22: Remote Configuration

    Guidance Terminal User Manual Parameter Description Stream Type Main Stream/Sub-Stream are selectable. Image Size Auto-fill/4:3/16:9 are selectable. Record File Size 256M/512M/1G are selectable. Live View Shortest Delay/Real Time/Balanced/Fluency are selectable. Performance Auto Start Live No/Yes are selectable. View Highlight Event Enable/Disable are selectable.
  • Page 23 Guidance Terminal User Manual Figure 4-2 Basic Information Configuring Time You can configure the time in the Time Settings interface, including Time Zone, synchronization (NTP Time Synchronization or Manual Time Synchronization). Figure 4-3 Time Setting NTP: After enabling NTP, the NTP server will synchronize the device time at regular intervals.
  • Page 24: Managing Camera

    Guidance Terminal User Manual can be synchronized with the setting time or the computer time. Click before Manual Time Sync. to enable it, and input the time as desired. Or you can check the checkbox of Sync. with computer time. 4.2.2 Managing Camera In the IP Camera interface, the guidance terminal is capable of connecting up to 32 parking cameras.
  • Page 25 Guidance Terminal User Manual 2. Click Batch Activation. Figure 4-6 Batch Activation 3. Enter the password, and confirm it. STRONG PASSWORD RECOMMENDED–We highly recommend you create a strong password of your own choosing (Using a minimum of 8 characters, including at least three of the following categories: upper case letters, lower case letters, numbers, and special characters.) in order to increase the security of your product.
  • Page 26 Guidance Terminal User Manual Modifying Parking Camera 1. Select a camera and the item becomes blue. 2. Click Modify and you can modify the information including user name and password. Figure 4-7 Modify Parking Camera 3. (Optional) Click Copy to to copy the settings to other camera(s). 4.
  • Page 27 Guidance Terminal User Manual Figure 4-8 Custom Protocol Getting Access to Parking Camera When the camera is online, you can click Access and a login interface for a camera is linked. Log in to the camera to configure the parking camera parameters as follows. Figure 4-9 Access You must configure the IP address of parking camera remote host and port before the parking camera data is received by the guidance terminal.
  • Page 28: Configuring Camera

    Guidance Terminal User Manual 4.2.3 Configuring Camera Configuring Display In the Display Settings interface, you can configure the channel name and OSD settings. Channel No.: Select the channel number from the dropdown list. Camera Name: Customize a camera name. OSD Settings: You can check the checkbox to display camera name, date and week information on the live view screen.
  • Page 29 Guidance Terminal User Manual Space Settings. Figure 4-11 Parking Space Settings 2. Select the Channel No. 3. Select the number of the Recognized Parking Space(s) from the drop-down list. The selectable value may vary according the camera models. 4. Input the Parking Space No. in the text filed. 5.
  • Page 30 Guidance Terminal User Manual Space Indicator. 2. Select the Channel No. 3. Select the indicator in the drop-down list of Indicator Control Mode on your demand, including Internal Indicator, External Indicator, and Internal and External Indicator.  If you select the Internal Indicator or External Indicator, and when all the detected parking spaces are occupied, the indicator turns to the occupied color;...
  • Page 31 Guidance Terminal User Manual Figure 4-14 Configure Internal and External Indicator 4. Set the indicator parameters for different parking space status. The description of different status is shown below: Unoccupied: The space is free. Occupied: The space is occupied by a vehicle. Over Line: A vehicle occupied two parking spaces.
  • Page 32 Guidance Terminal User Manual Parameters. 2. Enable or disable the parameters as below. Figure 4-15 Configure Capture Parameters  Rear Plate Recognition: Enable or disable the license plate recognition when the vehicle is backed into the space.  Large License Plate: Normally, the camera is recommended to be placed about 5 m away from the parking space to ensure the plate recognition accuracy.
  • Page 33 Guidance Terminal User Manual Figure 4-16 Bluetooth Configuration 2. Select the Channel No. 3. Configure the Bluetooth parameters.  Broadcast Time Interval: the frequency of sending broadcast frame by Bluetooth module.  Rated Power: the signal strength received by mobile client which is 1 meter away from the parking camera.
  • Page 34 Guidance Terminal User Manual Figure 4-17 Video Settings Parameters Description Channel No. Up to 32 channels. Main Stream (Normal)/Sub Stream/Main Stream (Event) are Stream Type selectable. Video Type Video Stream The higher the resolution, the clearer the image, and the larger Resolution bandwidth it needs.
  • Page 35 Guidance Terminal User Manual Figure 4-18 Schedule Settings Steps: 1. Select the channel No. from the drop-down list. 2. Check the checkbox of Enable Record Schedule. 3. Click Edit to set the schedule as follows. Figure 4-19 Edit Schedule 1) Select All Day or Customize to edit the schedule. 2) Select the Record Type.
  • Page 36 Guidance Terminal User Manual Alarm and Motion & Alarm are selectable. 3) If you select Customize, click to set the start time and end time. 4) (Optional) If you want to copy the settings to other days, check the checkbox and click Copy.
  • Page 37: Configuring Network

    Guidance Terminal User Manual Figure 4-21 Snapshot Settings 4.2.4 Configuring Network The guidance terminal is equipped with two network interface cards and you can configure extranet and intranet parameters respectively. Configuring TCP/IP You can configure the IP address of the four 1000M network interface cards. NIC Type: Auto, 10M Half-dup, 10M Full-dup, 100M Half-dup and 100M Full-dup is selectable.
  • Page 38 Guidance Terminal User Manual Figure 4-22 TCP/IP Settings  MTU: The maximum size of data packet in transmission.  You are required to reboot the guidance terminal after modifying the IP address. Configuring Internal Net You can view IP Address and modify subnet mask and gateway of the 16 100M network interface cards in the following interface.
  • Page 39 Guidance Terminal User Manual Figure 4-23 Internal Net Settings Configuring HTTPS You can check the checkbox to enable HTTPS in the HTTPS interface and create self-signed certificate, certificate request and upload, download and delete certificate. Figure 4-24 HTTP Settings Configuring Remote Access You can check the checkbox to enable SSH in Remote Access interface.
  • Page 40: Configuring Serial Port

    Guidance Terminal User Manual Figure 4-25 Remote Access Settings 4.2.5 Configuring Serial Port Configuring RS-232 Serial Port RS-232 serial port parameters are for the RS-232 interface. Please keep the settings as default. Figure 4-26 RS-232 Settings Configuring RS-485 Serial Port RS-485 serial port is used for connecting to LED display units, which shows the available parking spaces and the direction of the parking area.
  • Page 41: Configuring Alarm

    Guidance Terminal User Manual 4.2.6 Configuring Alarm Configuring Alarm Input Steps: 1. Select the Alarm Input No. from the drop-down list. 2. Select Alarm Type as NO (Remain Open) or NC (Remain Closed). 3. Enter the Alarm Name. 4. Check Enable to enable the alarm input. 5.
  • Page 42 Guidance Terminal User Manual Figure 4-29 Edit Schedule Time 7. Click Linkage Method tab to set the parameters of Normal Linkage, Trigger Alarm Output, and Trigger Channel. Figure 4-30 Linkage Method Configuring Alarm Output Refer to the above section Alarm Input for detailed steps.
  • Page 43 Guidance Terminal User Manual Figure 4-31 Alarm Output Configuring Voice Alarm Steps: 1. Enter the Voice Alarm Configuration interface. Figure 4-32 Voice Alarm Configuration 2. Click Add to add voice alarm. Figure 4-33 Add Voice Alarm...
  • Page 44: Controlling Indicator

    Guidance Terminal User Manual 3. Select Voice Alarm Type, Voice Alarm Priority and Voice Alarm Times from the drop-down lists, and select Enable Voice Alarm as ON. 4. Click OK to save the settings. 4.2.7 Controlling Indicator Configuring Opposite Space Detection The opposite space detection is applicable to the parking lot that the aisle between the opposite parking spaces is very narrow.
  • Page 45: Configuring Exception

    Guidance Terminal User Manual If the camera needs to detect the parking space of another camera under other guidance terminal, select the camera and click Add Across TPM. Figure 4-35 Add Across TPM 3. Enter Opposite TPM-IP Address and select Opposite Camera IP Address. ...
  • Page 46: Managing User

    Guidance Terminal User Manual Figure 4-36 Exception Refer to the following descriptions of Exception Type. Exception Type Description HDD Full All the HDD space is full. Error when writing in the HDD or the HDD is not HDD Error initialize. Network Disconnected The network is not connected.
  • Page 47 Guidance Terminal User Manual letters, numbers, and special characters) in order to increase the security of your product. 3. Select the level as Operator or User. 4. Confirm the password. 5. Select the user permission including Basic Permission and Camera Configuration Permission by checking the checkbox.
  • Page 48: Managing Hdd

    Guidance Terminal User Manual Deleting a User Select the user account for deleting and click Delete. You cannot delete the admin account. 4.2.10 Managing HDD The device supports HDD management for the purpose of stable and reliable storage. Configuring Basic Settings Steps: 1.
  • Page 49: Running Log

    Guidance Terminal User Manual be used to save the record files. Figure 4-40 Quota Allocation 4.2.11 Running Log Running log is used for the research and development personnel to debug the device. Steps: 1. Check Enable Log. Then the log will be saved as file to save in the guidance terminal.
  • Page 50: Connecting To Platform

    Guidance Terminal User Manual Figure 4-42 Maintenance  The upgrading file is digicap.dav.  The upgrading process will be 1 to 10 minutes. Please do not disconnect power to the device during the process.  The device will reboot automatically after upgrading. 4.2.13 Connecting to Platform The guidance terminal can connect to Ehome and Hik-Connect.
  • Page 51 Guidance Terminal User Manual Figure 4-43 Get Access to Ehome 4. Enter the Server IP, Server Port, and PUID. 5. Click Save to save the settings. 6. Reboot the guidance terminal to take the settings into effect. Then you can view the Register Status to see if the terminal is accessed to Ehome successfully.
  • Page 52: Configuring Remote Host

    Guidance Terminal User Manual 5. Reboot the guidance terminal to take the settings into effect. Then you can view the Register Status to see if the terminal is accessed to Hik-Connect successfully. If the status is online, register the Hik-Connect account, and add the terminal to Hik-Connect.
  • Page 53 Guidance Terminal User Manual Figure 4-46 Uploading Status Viewing Working Status You can view the system time and working time in Working Status interface. Figure 4-47 Working Status...
  • Page 54: Chapter 5 Live View

    Guidance Terminal User Manual Chapter 5 Live View Steps: 1. Open the Live View page. 2. (Optional) Click the icon in the live view toolbar, and select the screen layout mode. 3. Double-click the camera name after selecting the display window to start the live view.
  • Page 55 Guidance Terminal User Manual Start All Recording Start the recording of all cameras. Prev Page Go for live view of the previous page. Next Page Go for live view of the next page. Start Two-way Audio Enable the two-way audio. Turn on/off the audio in live view Audio On/Audio Off Display the live view in full screen mode.
  • Page 56: Chapter 6 Playback

    Guidance Terminal User Manual Chapter 6 Playback Purpose: The record files stored on the HDDs on the local device can be searched and played back remotely through the web browser. Click the Playback tab to enter the Playback interface. 6.1 Playback Interface The Playback interface is shown as follows.
  • Page 57: Searching Record Files

    Guidance Terminal User Manual Icon Name Description Fast Forward Increase the playback speed of the record files. Single Frame Play back the record files frame by frame. Stop All Playback Stop the playback of all the cameras. Capture the picture in the playback process. Capture Download Download the record file for backup.
  • Page 58: Chapter 7 Log

    Guidance Terminal User Manual Chapter 7 Log Purpose: You can view and export the log files at any time, including operation, alarm, exception and information of device. Before you start: The Log function can be realized only when the device is connected with HDD or network disk.
  • Page 59 Guidance Terminal User Manual 6. (Optional) You can click to save the searched logs. Please narrow the time range or filter the log type for search if there are too many log files.
  • Page 60: Chapter 8 Data Search

    Guidance Terminal User Manual Chapter 8 Data Search Purpose: You can search the data such as the license plate number, parking space number, etc. by specifying the search condition in Search interface. Click the Search tab to enter the Search interface. Figure 8-1 Search Interface Steps: 1.
  • Page 61: Chapter 9 Status

    Guidance Terminal User Manual Chapter 9 Status Purpose: You can view the status of the current working cameras as well as the parking space status. Click Status tab to enter the Status interface. Figure 9-1 Status Interface You can view the camera working status, the parking space information including parking space status, liscence plate, etc.
  • Page 62 Guidance Terminal User Manual Figure 9-2 Vehicle Information...
  • Page 63: Chapter 10 Statistics

    Guidance Terminal User Manual Chapter 10 Statistics Purpose: You can view the statistics of parking space information and LED guidance screen information in Statistics interface. Click Statistics tab to enter the Statistics interface. 10.1 Viewing Parking Space Information You can view all the parking space information in Parking Space Information tab. Or you can input the following search condition and click Search to search the specified parking space.
  • Page 64: Viewing Led Guidance Screen Information

    Guidance Terminal User Manual Figure 10-1 Parking Space Information Statisctics 10.2 Viewing LED Guidance Screen Information You can view all the LED guidance screen information in LED Guidance Screen Information tab. Figure 10-2 LED Guidance Screen Information Statisctics 0300011070704...
  • Page 65 Guidance Terminal User Manual...
