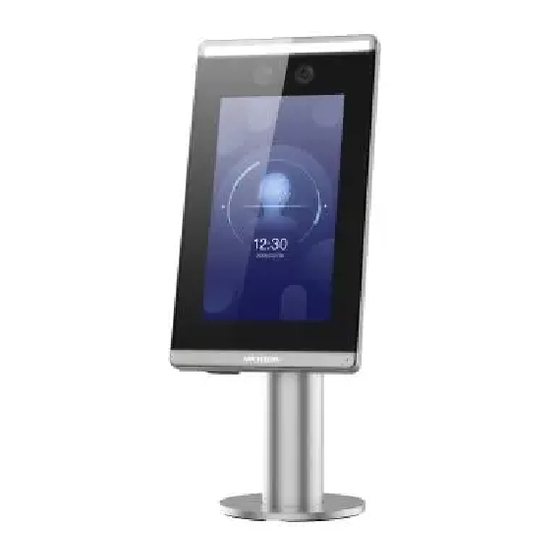

DS-K5671B Series Face Recognition Terminal
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-K5671B Series and is the answer not in the manual?

Questions and answers

Related Manuals for HIKVISION DS-K5671B Series

Summary of Contents for HIKVISION DS-K5671B Series

  • Page 1 DS-K5671B Series Face Recognition Terminal User Manual...
  • Page 2 WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, OR FITNESS FOR A PARTICULAR PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR OWN RISK. IN NO EVENT WILL HIKVISION BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES,...
  • Page 3 During the use of device, personal data will be collected, stored and processed. To protect data, the development of Hikvision devices incorporates privacy by design principles. For example, for device with facial recognition features, biometrics data is stored in your device with encryption method;...
  • Page 4 DS-K5671B Series Face Recognition Terminal User Manual Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Indicates a hazardous situation which, if not avoided, will or could Danger result in death or serious injury.
  • Page 5 DS-K5671B Series Face Recognition Terminal User Manual Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
  • Page 6 DS-K5671B Series Face Recognition Terminal User Manual under the EMC Directive 2014/30/EU, RE Directive 2014/53/EU,the RoHS Directive 2011/65/EU 2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points.
  • Page 7 DS-K5671B Series Face Recognition Terminal User Manual Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measure is divided into Dangers and Cautions: Dangers: Neglecting any of the warnings may cause serious injury or death.
  • Page 8 DS-K5671B Series Face Recognition Terminal User Manual Cautions: Do not drop the device or subject it to physical shock, and do not expose it to high ● electromagnetism radiation. Avoid the equipment installation on vibrations surface or places subject to shock (ignorance can cause equipment damage).
  • Page 9 DS-K5671B Series Face Recognition Terminal User Manual If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention. viii...
  • Page 10 DS-K5671B Series Face Recognition Terminal User Manual Available Models Product Name Model Face Recognition Terminal DS-K5671B-ZV DS-K5671B-ZH DS-K5671B-ZU Use only power supplies listed in the user instructions: Model Manufacturer Standard C2000IC12.0-24P-DE MOSO Power Supply Technology Co., Ltd. C2000IC12.0-24P-GB MOSO Power Supply Technology Co., Ltd.

  • Page 11: Table Of Contents

    DS-K5671B Series Face Recognition Terminal User Manual Contents Chapter 1 Overview ........................1 1.1 Overview ..........................1 1.2 Features ..........................1 Chapter 2 Appearance ........................ 2 Chapter 3 Installation ......................... 4 3.1 Installation Environment ......................4 3.2 Mount With Bracket ....................... 4 3.2.1 Preparation before Mounting with Bracket ..............
  • Page 12 DS-K5671B Series Face Recognition Terminal User Manual 6.6 Privacy Settings ........................39 6.7 Set Administrator ......................... 40 Chapter 7 Basic Operation ......................43 7.1 Login ............................ 43 7.1.1 Login by Administrator ....................43 7.1.2 Login by Activation Password ..................46 7.1.3 Forgot Password ......................
  • Page 13 DS-K5671B Series Face Recognition Terminal User Manual 7.6 Basic Settings ........................67 7.7 Set Biometric Parameters ....................69 7.8 Set Access Control Parameters .................... 72 7.9 Time and Attendance Status Settings .................. 73 7.9.1 Disable Attendance Mode via Device ................. 73 7.9.2 Set Manual Attendance via Device ................
  • Page 14 DS-K5671B Series Face Recognition Terminal User Manual 8.6.6 Upgrade and Maintenance ..................91 8.6.7 Log Query ........................93 8.6.8 Security Mode Settings ....................93 8.6.9 Certificate Management ..................... 94 8.6.10 Change Administrator's Password ................95 8.6.11 Account Security Settings ..................95 8.6.12 View Device Arming/Disarming Information ............
  • Page 15 DS-K5671B Series Face Recognition Terminal User Manual 9.4.1 Add Organization ...................... 136 9.4.2 Configure Basic Information ..................137 9.4.3 Issue a Card by Local Mode ..................138 9.4.4 Upload a Face Photo from Local PC ................140 9.4.5 Take a Photo via Client ....................141 9.4.6 Collect Face via Access Control Device ..............
  • Page 16 DS-K5671B Series Face Recognition Terminal User Manual 9.7.3 Configure Multi-Factor Authentication ..............164 9.7.4 Configure Card Reader Authentication Mode and Schedule ........166 9.7.5 Configure First Person In ................... 168 9.7.6 Configure Anti-Passback ................... 169 9.7.7 Configure Device Parameters ..................170 9.8 Configure Linkage Actions for Access Control ..............
  • Page 17 DS-K5671B Series Face Recognition Terminal User Manual 9.12.2 Set Picture Storage ....................212 9.12.3 Set Alarm Sound ..................... 213 9.12.4 Set Access Control and Video Intercom Parameters ..........213 9.12.5 Set File Saving Path ....................214 9.12.6 Set Email Parameters ....................214 9.13 Operation and Maintenance ....................

  • Page 18: Chapter 1 Overview

    DS-K5671B Series Face Recognition Terminal User Manual Chapter 1 Overview 1.1 Overview Face recognition terminal is a kind of access control device for face recognition, which is mainly applied in security access control systems, such as logistic centers, airports, university campuses, alarm centrals, dwellings, etc.

  • Page 19: Chapter 2 Appearance

    DS-K5671B Series Face Recognition Terminal User Manual Chapter 2 Appearance Refer to the following contents for detailed information of the face recognition terminal: Figure 2-1 Face Recognition Terminal Diagram Table 2-1 Description of Face Recognition Terminal Name Description White Light Supplement light for camera.
  • Page 20 DS-K5671B Series Face Recognition Terminal User Manual Name Description Debugging Port The debug terminal is used for debugging only. Network Interface Connect to Ethernet. TF Card Slot Reserved...

  • Page 21: Chapter 3 Installation

    DS-K5671B Series Face Recognition Terminal User Manual Chapter 3 Installation 3.1 Installation Environment Avoid backlight, direct sunlight, and indirect sunlight. ● For better recognition, there should be light source in or near the installation environment. ● The minimum bearing weight of the wall or other places should be 3 times heavier than the ●...
  • Page 22 DS-K5671B Series Face Recognition Terminal User Manual Figure 3-1 Drill Holes on Turnstile 3. Solder the other four holes, polish the surface, and implement wire drawing. 4. Solder circular tubes on the turnstile’s inner surface to avoid water from entering.

  • Page 23: Mount Bracket I

    DS-K5671B Series Face Recognition Terminal User Manual Figure 3-2 Solder Tubes 3.2.2 Mount Bracket I Steps 1. Install the base on the turnstile. 1) Align the hole on the turnstile and place the base on the turnstile. 2) Rotate the base to the acquired place and make sure the device will face a correct direction.
  • Page 24 DS-K5671B Series Face Recognition Terminal User Manual Figure 3-3 Install Base Note The arrow indication on the base and the turnstile should be approximately vertical. ● Refer to the scales and scale arrow on the base to confirm the screws position. The screws' ●...
  • Page 25 DS-K5671B Series Face Recognition Terminal User Manual Figure 3-4 Screw Position 2. Route the cables through the cable hole on the turnstile. 3. Install the bracket on the base. 1) Place the device with bracket on the base and make sure the arrow on the base is aligned with the arrow shaped slot on the bracket.
  • Page 26 DS-K5671B Series Face Recognition Terminal User Manual Figure 3-5 Secure Lower Cover and Turnstile 4. Secure the upper cover. 1) Align the arrow indication on the base with that inside the upper cover. 2) Place the upper cover in the lower cover.

  • Page 27: Mount Bracket Ii

    DS-K5671B Series Face Recognition Terminal User Manual Figure 3-6 Secure Upper Cover 5. After installation, for the proper use of the device (outdoor use), stick the protection film (parts of models supplied) on the screen. 3.2.3 Mount Bracket II Steps...
  • Page 28 DS-K5671B Series Face Recognition Terminal User Manual Figure 3-7 Remove Lower Cover 2. Route the cables through the cable hole on the turnstile. 3. Align the holes on the base with those on the turnstile and place the device with bracket on the turnstile.
  • Page 29 DS-K5671B Series Face Recognition Terminal User Manual Figure 3-8 Secure Bracket and Turnstile 5. Install the lower cover back on the base and rotate to secure. 6. Adjust the device elevation. 1) Loosen the screws inside. 2) Adjust the device elevation.

  • Page 30: Mount Bracket Iii

    DS-K5671B Series Face Recognition Terminal User Manual Figure 3-10 Adjust Elevation 7. After installation, for the proper use of the device (outdoor use), stick the protection film (parts of models supplied) on the screen. 3.2.4 Mount Bracket III Steps 1. Route the cables through the cable hole on the turnstile.
  • Page 31 DS-K5671B Series Face Recognition Terminal User Manual Figure 3-11 Install Bracket on Turnstile 3. Optional: By default, a decoration sheet is on the bracket. You can replace it by the arch shaped decoration (supplied) when the default one cannot cover all holes on the turnstile.
  • Page 32 DS-K5671B Series Face Recognition Terminal User Manual Figure 3-12 Remove Screws 2) Align the screw holes on the arch shaped decoration with the those on the bracket and secure them with 2 screws. Figure 3-13 Arch Shaped Decoration 4. Rotate to adjust the bracket's angle and secure the bracket on the turnstile with 2 screws.
  • Page 33 DS-K5671B Series Face Recognition Terminal User Manual Figure 3-14 Secure Bracket 5. Align the device with the bracket and slide the device in the bracket. Make sure the two sheets of the mounting plate are in the slots.
  • Page 34 DS-K5671B Series Face Recognition Terminal User Manual Figure 3-15 Install Device 6. Secure the device and the bracket with a screw.
  • Page 35 DS-K5671B Series Face Recognition Terminal User Manual Figure 3-16 Secure Device 7. After installation, for the proper use of the device (outdoor use), stick the protection film (parts of models supplied) on the screen.

  • Page 36: Chapter 4 Wiring

    DS-K5671B Series Face Recognition Terminal User Manual Chapter 4 Wiring You can connect the RS-485 terminal with the RS-485 card reader, connect the NC and COM terminal with the door lock, connect the SENSOR terminal with the door contact, the BTN/GND...
  • Page 37 DS-K5671B Series Face Recognition Terminal User Manual Figure 4-1 Terminal Diagram The descriptions of the terminals are as follows:...
  • Page 38 DS-K5671B Series Face Recognition Terminal User Manual Table 4-1 Terminal Descriptions Group Function Color Name Description Group A Power Input +12 V 12 VDC Power Supply Black Ground Group B Alarm Input Yellow/Blue Alarm Input 1 Yellow/Black Ground Yellow/Orange IN2...

  • Page 39: Wire Normal Device

    DS-K5671B Series Face Recognition Terminal User Manual Group Function Color Name Description Yellow/Green SENSOR Door Contact Yellow/Gray Exit Door Wiring 4.2 Wire Normal Device You can connect the terminal with normal peripherals. The wiring diagram without secure door control unit is as follows.

  • Page 40: Wire Secure Door Control Unit

    DS-K5671B Series Face Recognition Terminal User Manual 4.3 Wire Secure Door Control Unit You can connect the terminal with the secure door control unit. The wiring diagram is as follows. Figure 4-3 Secure Door Control Unit Wiring Note The secure door control unit should connect to an external power supply separately. The ●...

  • Page 41: Chapter 5 Activation

    DS-K5671B Series Face Recognition Terminal User Manual Chapter 5 Activation You should activate the device before the first login. After powering on the device, the system will switch to Device Activation page. Activation via the device, SADP tool and the client software are supported.
  • Page 42 DS-K5671B Series Face Recognition Terminal User Manual Figure 5-1 Activation Page Caution The password strength of the device can be automatically checked. We highly recommend you change the password of your own choosing (using a minimum of 8 characters, including at least...

  • Page 43: Activate Via Web Browser

    DS-K5671B Series Face Recognition Terminal User Manual characters) in order to increase the security of your product. And we recommend you change your password regularly, especially in the high security system, changing the password monthly or weekly can better protect your product.
  • Page 44 Get the SADP software from the supplied disk or the official website http:// ● www.hikvision.com/en/ , and install the SADP according to the prompts. The device and the PC that runs the SADP tool should be within the same subnet.

  • Page 45: Activate Device Via Client Software

    DS-K5671B Series Face Recognition Terminal User Manual 2) Change the device IP address to the same subnet as your computer by either modifying the IP address manually or checking Enable DHCP. 3) Input the admin password and click Modify to activate your IP address modification.

  • Page 46: Chapter 6 Quick Operation

    DS-K5671B Series Face Recognition Terminal User Manual Chapter 6 Quick Operation 6.1 Select Language You can select a language for the device system. After the device activation, you can select a language for the device system.
  • Page 47 DS-K5671B Series Face Recognition Terminal User Manual Figure 6-1 Select System Language By default, the system language is English.

  • Page 48: Set Password Change Type

    DS-K5671B Series Face Recognition Terminal User Manual 6.2 Set Password Change Type After activating the device, you can set the password change type as reserved email address or security questions. Once you forgot the device password, you can change the password via the selected change type.
  • Page 49 DS-K5671B Series Face Recognition Terminal User Manual Figure 6-2 Password Change Page Change via Security Questions If you need to change password via security questions, you can tap Change to Security Questions on the right corner. Select the security questions and enter the answers. Click Next.

  • Page 50: Set Application Mode

    DS-K5671B Series Face Recognition Terminal User Manual Note You can only select one type to change password. If you need, you can enter the web page to set both of the changing types. 6.3 Set Application Mode After activating the device, you should select an application mode for better device application.
  • Page 51 DS-K5671B Series Face Recognition Terminal User Manual Figure 6-3 Welcome Page 2. Tap OK to save. Note You can also change the settings in System Settings. ● If you install the device indoors near the window or the face recognition function is not ●...

  • Page 52: Set Network Parameters

    DS-K5671B Series Face Recognition Terminal User Manual If you do not configure the application mode and tap Next, the system will select Indoor by ● default. If you activate the device via other tools remotely, the system will select Indoor as the ●...
  • Page 53 DS-K5671B Series Face Recognition Terminal User Manual Figure 6-4 Select Network Note Disconnect the wired network before connecting a Wi-Fi. 2. Tap Next. Wired Network Note Make sure the device has connected to a network.

  • Page 54: Access To Platform

    DS-K5671B Series Face Recognition Terminal User Manual If enable DHCP, the system will assign the IP address and other parameters automatically. If disable DHCP, you should set the IP address, the subnet mask, and the gateway. Note IP address of 192.168.1.64, and 192.168.1.7 are not suggested to use.
  • Page 55 DS-K5671B Series Face Recognition Terminal User Manual Figure 6-5 Access to Hik-Connect 2. Tap Next. 3. Optional: Tap Skip to skip the step. 4. Optional: Tap Previous to go to the previous page. Note If you tap Previous to return to the Wi-Fi configuration page, you need to tap the connected Wi-...

  • Page 56: Privacy Settings

    DS-K5671B Series Face Recognition Terminal User Manual 6.6 Privacy Settings After activation, selecting application mode, and selecting network, you should set the privacy parameters, including the picture uploading and storage. Select parameters according to your actual needs. Figure 6-6 Privacy...

  • Page 57: Set Administrator

    DS-K5671B Series Face Recognition Terminal User Manual Upload Captured Pic. When Auth. (Upload Captured Picture When Authenticating) Upload the pictures captured when authenticating to the platform automatically. Save Captured Pic. When Auth. (Save Captured Picture When Authenticating) If you enable this function, you can save the picture when Authenticating to the device.
  • Page 58 DS-K5671B Series Face Recognition Terminal User Manual Figure 6-7 Add Administrator Page 3. Select a credential to add. Note Up to one credential should be added. : Face forward at the camera. Make sure the face is in the face recognition area. Click capture and click to confirm.
  • Page 59 DS-K5671B Series Face Recognition Terminal User Manual : Enter the card No. or present card on the card presenting area. Click OK. 4. Click OK. You will enter the authentication page. Status Icon Description Device is armed/not armed. Hik-Connect is enabled/disabled.

  • Page 60: Chapter 7 Basic Operation

    DS-K5671B Series Face Recognition Terminal User Manual Chapter 7 Basic Operation 7.1 Login Login the device to set the device basic parameters. 7.1.1 Login by Administrator If you have added an administrator for the device, only the administrator can login the device for device operation.
  • Page 61 DS-K5671B Series Face Recognition Terminal User Manual Figure 7-1 Admin Login 2. Authenticate the administrator's face or card to enter the home page.
  • Page 62 DS-K5671B Series Face Recognition Terminal User Manual Figure 7-2 Home Page Note The device will be locked for 30 minutes after 5 failed attempts. 3. Optional: Tap and you can enter the device activation password for login. 4. Optional: Tap...

  • Page 63: Login By Activation Password

    DS-K5671B Series Face Recognition Terminal User Manual 7.1.2 Login by Activation Password You should login the system before other device operations. If you do not configure an administrator, you should follow the instructions below to login. Steps 1. Long tap on the initial page for 3 s and slide to the left/right by following the gesture to enter password entering page.

  • Page 64: Forgot Password

    DS-K5671B Series Face Recognition Terminal User Manual Figure 7-3 Home Page 7.1.3 Forgot Password If you forget the password during authentication, you can change the password.
  • Page 65 DS-K5671B Series Face Recognition Terminal User Manual Steps 1. Hold the initial page for 3 s and slide to the left/right by following the gesture and log in the page. 2. Optional: If you have set an administrator, tap in the pop-up admin authentication page.

  • Page 66: Communication Settings

    DS-K5671B Series Face Recognition Terminal User Manual Note If you have only set 1 password change type, you will go to the corresponded password change page for further settings. 5. Answer the security questions or change the password according to email address.
  • Page 67 DS-K5671B Series Face Recognition Terminal User Manual Figure 7-5 Wired Network Settings 3. Set IPv4/IPv6 IP Address, Subnet Mask, and Gateway. - Enable DHCP, and the system will assign IP address, subnet mask, and gateway automatically. - Disable DHCP, and you should set the IP address, subnet mask, and gateway manually.

  • Page 68: Set Wi-Fi Parameters

    DS-K5671B Series Face Recognition Terminal User Manual 4. Set the DNS parameters. You can enable Auto Obtain DNS, set the preferred DNS server and the alternate DNS server. 7.2.2 Set Wi-Fi Parameters You can enable the Wi-Fi function and set the Wi-Fi related parameters.
  • Page 69 DS-K5671B Series Face Recognition Terminal User Manual Figure 7-6 Wi-Fi Settings 3. Enable the Wi-Fi function. 4. Configure the Wi-Fi parameters. - Select a Wi-Fi from the list, and enter the Wi-Fi's password. Tap OK. - If the target Wi-Fi is not in the list,tap Add Wi-Fi. Enter the Wi-Fi's name and password. And tap OK.

  • Page 70: Set Rs-485 Parameters

    DS-K5671B Series Face Recognition Terminal User Manual 6. Tap OK to save the settings and go back to the Wi-Fi tab. 7. Tap to save the network parameters. 7.2.3 Set RS-485 Parameters The face recognition terminal can connect external access controller, secure door control unit or card reader via the RS-485 terminal.
  • Page 71 DS-K5671B Series Face Recognition Terminal User Manual Figure 7-7 Set RS-485 Parameters 3. Enable RS-485 Settings. 4. Select an peripheral type according to your actual needs.

  • Page 72: Set Wiegand Parameters

    DS-K5671B Series Face Recognition Terminal User Manual Note If you select Access Controller: If connect the device to a terminal via the RS-485 interface, set the RS-485 address as 2. If you connect the device to a controller, set the RS-485 address according to the door No.

  • Page 73: Set Isup Parameters

    DS-K5671B Series Face Recognition Terminal User Manual 3. Enable the Wiegand function. 4. Select a transmission direction. Output: A face recognition terminal can connect an external access controller. And the two ● devices will transmit the card No. via Wiegand 26 or Wiegand 34.
  • Page 74 DS-K5671B Series Face Recognition Terminal User Manual Figure 7-9 ISUP Settings 2. Enable the ISUP function and set the ISUP server parameters. ISUP Version Set the ISUP version according to your actual needs. Central Group Enable central group and the data will be uploaded to the center group.

  • Page 75: Platform Access

    DS-K5671B Series Face Recognition Terminal User Manual Set the ISUP server's IP address. Port No. Set the ISUP server's port No. Note Port No. Range: 0 to 65535. Device ID Set device serial no. ISUP Key If you choose V5.0, you should create an account and ISUP key. If you choose other version, you should create an ISUP account only.

  • Page 76: Add Administrator

    DS-K5671B Series Face Recognition Terminal User Manual 7.3.1 Add Administrator The administrator can log in the device backend and configure the device parameters. Steps 1. Long tap on the initial page for 3 s and slide to the left/right by following the gesture and enter the device backend.

  • Page 77: Add Face Picture

    DS-K5671B Series Face Recognition Terminal User Manual 3. Edit the employee ID. Note The employee ID should be less than 32 characters. And it can be a combination of lower ● letters, upper letters, and numbers. The employee ID should not be duplicated.
  • Page 78 DS-K5671B Series Face Recognition Terminal User Manual Note Numbers, upper case letters, lower case letters, and special characters are allowed in the user ● name. The suggested user name should be within 32 characters. ● 5. Tap the Face Picture field to enter the face picture adding page.

  • Page 79: Add Card

    DS-K5671B Series Face Recognition Terminal User Manual 6. Look at the camera. Note Make sure your face picture is in the face picture outline when adding the face picture. ● Make sure the captured face picture is in good quality and is accurate.

  • Page 80: View Pin Code

    DS-K5671B Series Face Recognition Terminal User Manual Note Numbers, upper case letters, lower case letters, and special characters are allowed in the user ● name. The suggested user name should be within 32 characters. ● 6. Tap the Card field and tap +.

  • Page 81: Set Authentication Mode

    DS-K5671B Series Face Recognition Terminal User Manual Note Numbers, upper case letters, lower case letters, and special characters are allowed in the user ● name. The suggested user name should be within 32 characters. ● 5. Tap the PIN code to view the PIN code.

  • Page 82: Data Management

    DS-K5671B Series Face Recognition Terminal User Manual Search User On the User Management page, Tap the search area to enter the Search User page. Tap Card on the left of the page and select a search type from the drop-down list. Enter the employee ID, card No., or the user name for search.

  • Page 83: Export Data

    DS-K5671B Series Face Recognition Terminal User Manual The imported pictures should be saved in the folder (named enroll_pic) of the root directory ● and the picture's name should be follow the rule below: Card No._Name_Department_Employee ID_Gender.jpg If the folder enroll_pic cannot save all imported pictures, you can create another folders, ●...

  • Page 84: Authenticate Via Multiple Credential

    DS-K5671B Series Face Recognition Terminal User Manual Face forward at the camera and start authentication via face. Card Present the card on the card presenting area and start authentication via card. Note The card can be normal IC card, or encrypted card.
  • Page 85 DS-K5671B Series Face Recognition Terminal User Manual Figure 7-11 Basic Settings Page Voice Settings You can enable/disable the voice prompt function and adjust the voice volume. Note You can set the voice volume between 0 and 10. Time Settings...

  • Page 86: Set Biometric Parameters

    DS-K5671B Series Face Recognition Terminal User Manual Set the time zone, the device time and the DST. Sleeping (s) Set the device sleeping waiting time (minute). When you are on the initial page and if you set the sleeping time to 30 min, the device will sleep after 30 min without any operation.
  • Page 87 DS-K5671B Series Face Recognition Terminal User Manual Table 7-1 Face Picture Parameters Parameter Description Application Mode Select either others or indoor according to actual environment. Face Liveness Level After enabling face anti-​ s poofing function, you can set the matching security level when performing live face authentication.
  • Page 88 DS-K5671B Series Face Recognition Terminal User Manual Parameter Description Set the matching threshold when authenticating via ECO mode 1:N matching mode. The larger the value, the smaller the false accept rate and the larger the false rejection rate Face with Mask & Face(1:1 ECO) Set the matching value when authenticating with face mask via ECO mode 1:1 matching mode.

  • Page 89: Set Access Control Parameters

    DS-K5671B Series Face Recognition Terminal User Manual 7.8 Set Access Control Parameters You can set the access control permissions, including the functions of authentication mode, enable M1 card, door contact, open duration (s) and authentication interval (s). On the Home page, tap ACS (Access Control Settings) to enter the Access Control Settings page.

  • Page 90: Time And Attendance Status Settings

    DS-K5671B Series Face Recognition Terminal User Manual 7.9 Time and Attendance Status Settings You can set the attendance mode as check in, check out, break out, break in, overtime in, and overtime out according to your actual situation. Note The function should be used cooperatively with time and attendance function on the client software.
  • Page 91 DS-K5671B Series Face Recognition Terminal User Manual Steps 1. Tap T&A Status to enter the T&A Status page. 2. Set the Attendance Mode as Manual. Figure 7-13 Manual Attendance Mode 3. Enable the Attendance Status Required. 4. Enable a group of attendance status.

  • Page 92: Set Auto Attendance Via Device

    DS-K5671B Series Face Recognition Terminal User Manual 7.9.3 Set Auto Attendance via Device Set the attendance mode as auto, and you can set the attendance status and its available schedule. The system will automatically change the attendance status according to the configured schedule.

  • Page 93: Set Manual And Auto Attendance Via Device

    DS-K5671B Series Face Recognition Terminal User Manual 4) Tap Confirm. 5) Repeat step 1 to 4 according to your actual needs. Note The attendance status will be valid within the configured schedule. Result When you authenticate on the initial page, the authentication will be marked as the configured attendance status according to the configured schedule.
  • Page 94 DS-K5671B Series Face Recognition Terminal User Manual Figure 7-15 Manual and Auto Mode 3. Enable the Attendance Status function. 4. Enable a group of attendance status. Note The Attendance Property will not be changed. 5. Optional: Select an status and change its name if required.

  • Page 95: System Maintenance

    DS-K5671B Series Face Recognition Terminal User Manual Example If set the Break Out as Monday 11:00, and Break In as Monday 12:00, the valid user's authentication from Monday 11:00 to 12:00 will be marked as break. 7.10 System Maintenance You can view the system information and the capacity. You can also upgrade the device, restore to factory settings, restore to default settings, and reboot the device.

  • Page 96: Preference Settings

    DS-K5671B Series Face Recognition Terminal User Manual You can view the device model, serial No., versions, address, production data, QR code, and open source code license. Note The page may vary according to different device models. Refers to the actual page for details.
  • Page 97 DS-K5671B Series Face Recognition Terminal User Manual Figure 7-17 Preference Settings Shortcut Key Choose the shortcut key that displayed on the authentication page, including the call function, call type, and the password entering function. Note You can select call type from Call Room, Call Center, Call Specified Room No. and Call APP.

  • Page 98: Video Intercom

    DS-K5671B Series Face Recognition Terminal User Manual Call Room When you tap the call button on the authentication page, you should dial a room No. to call. Call Center When you tap the call button on the authentication page, you can call the center directly.

  • Page 99: Call Client Software From Device

    DS-K5671B Series Face Recognition Terminal User Manual 7.12.1 Call Client Software from Device Steps 1. Get the client software from the supplied disk or the official website, and install the software according to the prompts. 2. Run the client software and the control panel of the software pops up.

  • Page 100: Call Device From Client Software

    DS-K5671B Series Face Recognition Terminal User Manual Note The device will call the main station in priority. 7.12.3 Call Device from Client Software Steps 1. Get the client software from the supplied disk or the official website, and install the software according to the prompts.

  • Page 101: Call Mobile Client From Device

    DS-K5671B Series Face Recognition Terminal User Manual 7.12.5 Call Mobile Client from Device Steps 1. Get the mobile mobile client from the supplied disk or the official website, and install the software according to the prompts. 2. Run the mobile client and add the device to the mobile client.

  • Page 102: Chapter 8 Operation Via Web Browser

    Answer the security questions. E-mail Verification 1. Export the QR code and send it to pw_recovery@hikvision.com as attachment. 2. You will receive a verification code within 5 minutes in your reserved email. 3. Enter the verification code into the verification code field to verify your identification.
  • Page 103 DS-K5671B Series Face Recognition Terminal User Manual Figure 8-1 Live View Page Function Descriptions: Select the image size when starting live view. Set the volume when starting live view. Note If you adjust the volume when starting two-way audio, you may hear a repeated sounds.

  • Page 104: Person Management

    DS-K5671B Series Face Recognition Terminal User Manual Select the window division type when starting live view. Full screen view. 8.4 Person Management Click and add the person's information, including the basic information, authentication mode, card, and fingerprint. And you can also edit user information, view user picture and search user information in the user list.

  • Page 105: Search Event

    DS-K5671B Series Face Recognition Terminal User Manual Click Add Card, enter the Card No. and select the Property, and click OK to add the card. Click OK to save the settings. Add Fingerprint Note Only devices supporting the fingerprint function can add the fingerprint.

  • Page 106: Configuration

    DS-K5671B Series Face Recognition Terminal User Manual Figure 8-2 Search Event Enter the search conditions, including the event type, the employee ID, the name, the card No., the start time, and the end time, and click Search. The results will be displayed on the right panel.

  • Page 107: View Device Information

    DS-K5671B Series Face Recognition Terminal User Manual Set Captured Pictures and Clips Saving Path Click Configuration → Local to enter the Local page. Select a saving path from your local computer and click Save. You can also click Open to open the file folder to view details.

  • Page 108: Set Dst

    DS-K5671B Series Face Recognition Terminal User Manual You should set the alarm receiver type, NTP server's IP address, port No., and interval. Manual By default, the device time should be synchronized manually. You can set the device time manually or check Sync. with Computer Time to synchronize the device time with the computer's time.
  • Page 109 DS-K5671B Series Face Recognition Terminal User Manual Figure 8-5 Upgrade and Maintenance Page Click Reboot to start reboot the device. Restore Parameters Click Configuration → System → Maintenance → Upgrade & Maintenance . Restore All All parameters will be restored to the factory settings. You should activate the device before usage.

  • Page 110: Log Query

    DS-K5671B Series Face Recognition Terminal User Manual Import Click and select the file to import. Click Import to start import configuration file. Upgrade Click Configuration → System → Maintenance → Upgrade & Maintenance . Select an upgrade type from the drop-down list. Click and select the upgrade file from your local PC.

  • Page 111: Certificate Management

    DS-K5671B Series Face Recognition Terminal User Manual In order to increase the network security level when visiting websites, you can enable HTTP to acquire a more secure and encrypted network communication environment. The communication should authenticated by identity and encryption password after enabling HTTP, which is save.

  • Page 112: Change Administrator's Password

    DS-K5671B Series Face Recognition Terminal User Manual Install CA Certificate Before You Start Prepare a CA certificate in advance. Steps 1. Go to Configuration → System → Security → Certificate Management . 2. Create an ID in the Inport CA Certificate area.

  • Page 113: View Device Arming/Disarming Information

    DS-K5671B Series Face Recognition Terminal User Manual 3. Enter the device password and click OK to confirm changing. 8.6.12 View Device Arming/Disarming Information View device arming type and arming IP address. Go to Configuration → User Management → Arming/Disarming Information .
  • Page 114 DS-K5671B Series Face Recognition Terminal User Manual Figure 8-6 TCP/IP Settings Page Set the parameters and click Save to save the settings. Network Card Select network card according to your actual needs. DHCP If uncheck the function, you should set the IPv4 address, IPv4 subnet mask, IPv4 default gateway, IPv6 mode, IPv6 address, IPv6 subnet prefix length, IPv6 default gateway, Mac address, and MTU.
  • Page 115 DS-K5671B Series Face Recognition Terminal User Manual DNS Server Set the preferred DNS server and the Alternate DNS server according to your actual need. Set Port Parameters Set the HTTP, RTSP, HTTPS and Server port parmaeters. Click Configuration → Network → Basic Settings → Port .
  • Page 116 DS-K5671B Series Face Recognition Terminal User Manual Figure 8-7 Wi-Fi Settings Page 2. Check Wi-Fi. 3. Select a Wi-Fi - Click of a Wi-Fi in the list and enter the Wi-Fi password. - Click Add, and enter the SSID, working mode, and encryption type. Click Connect. When the Wi-Fi is connected, click OK.
  • Page 117 DS-K5671B Series Face Recognition Terminal User Manual Note N1 refers to wired network. Set ISUP Parameters Set the ISUP parameters for accessing device via ISUP protocol. Steps Note The function should be supported by the device. 1. Click Configuration → Network → Advanced Settings → Platform .

  • Page 118: Set Video And Audio Parameters

    DS-K5671B Series Face Recognition Terminal User Manual 6. Click Save to enable the settings. Configure HTTP Listening The device can send alarm information to the event alarm IP address or domain name via HTTP protocol/HTTPS protocol. Before You Start The event alarm IP address or domain name should support the HTTP protocol/HTTPS protocol to receive the alarm information.
  • Page 119 DS-K5671B Series Face Recognition Terminal User Manual Figure 8-8 Video Settings Page Set the video channel, camera name, stream type, the video type, the bitrate type, the frame rate, the Max. bitrate, the video encoding, and I Frame Interval. Click Save to save the settings after the configuration.

  • Page 120: Customize Audio Content

    DS-K5671B Series Face Recognition Terminal User Manual 8.6.15 Customize Audio Content Customize the output audio content when authentication succeeded and failed. Steps 1. Click Configuration → Video/Audio → Prompt . Figure 8-9 Customize Audio Content 2. Select Prompt as TTS(Text to Speech) to turn the text to audio content.

  • Page 121: Set Image Parameters

    DS-K5671B Series Face Recognition Terminal User Manual 5) Optional: Click to delete the configured time duration. 7. Set the time duration when authentication failed. 1) Click Add. 2) Set the time duration and the language. Note If authentication is failed in the configured time duration, the device will broadcast the configured content.

  • Page 122: Time And Attendance Settings

    DS-K5671B Series Face Recognition Terminal User Manual Start/end recording video. Capture the image. 3. Click Default to restore the parameters to the default settings. 8.6.17 Time and Attendance Settings If you want to track and monitor when the persons start/stop work and monitor their working...
  • Page 123 DS-K5671B Series Face Recognition Terminal User Manual Set Manual Attendance via Web Set the attendance mode as manual, and you should select a status manually when you take attendance. Before You Start Add at least one user, and set the user's authentication mode. For details, see User Management.

  • Page 124: General Settings

    DS-K5671B Series Face Recognition Terminal User Manual Set Manual and Auto Attendance via Web Set the attendance mode as Manual and Auto, and the system will automatically change the attendance status according to the configured schedule. At the same time you can manually change the attendance status after the authentication.
  • Page 125 DS-K5671B Series Face Recognition Terminal User Manual Main Card Reader You can configure the device card reader's parameters. Sub Card Reader You can configure the connected peripheral card reader's parameters. If select Main Card Reader: Card Reader Type/Card Reader Description Get card reader type and description.
  • Page 126 DS-K5671B Series Face Recognition Terminal User Manual Select an authentication mode according to your actual needs from the drop-down list. Multiple People Authentication Multiple people can be authenticated at the same time. Recognition Interval If the interval between card presenting of the same card is less than the configured value, the card presenting is invalid.
  • Page 127 DS-K5671B Series Face Recognition Terminal User Manual The earliest 5% events will be deleted when the system detects the stored events has been over 95% of the full space. Authentication Settings Display Authentication Result You can check Face Picture, Name, and Employee ID, to display the authentication result.
  • Page 128 DS-K5671B Series Face Recognition Terminal User Manual Set Card Security Click Configuration → General → Card Security to enter the settings page. Set the parameters and click Save. Enable M1 Card Enable M1 card and authenticating by presenting M1 card is available.

  • Page 129: Video Intercom Settings

    DS-K5671B Series Face Recognition Terminal User Manual 8.6.19 Video Intercom Settings Set Video Intercom Parameters The device can be used as a door station, outer door station, or access control device. You should set the device No. before usage. Click Configuration → Intercom → Device No. .
  • Page 130 DS-K5671B Series Face Recognition Terminal User Manual Door Station No. Set the device installed floor No. Note If you change the No., you should reboot the device. ● The main door station No. is 0, and the sub door station No. ranges from 1 to 16.

  • Page 131: Access Control Settings

    DS-K5671B Series Face Recognition Terminal User Manual Click Save. Press Button to Call Steps 1. Click Intercom → Press Button to Call to enter the settings page. 2. Check Call Indoor Station, Call Specified Indoor Station, Call Management Center or APP at your needs.
  • Page 132 DS-K5671B Series Face Recognition Terminal User Manual Select the device corresponded door No. Name You can create a name for the door. Open Duration Set the door unlocking duration. If the door is not opened for the set time, the door will be locked.
  • Page 133 DS-K5671B Series Face Recognition Terminal User Manual Figure 8-12 Access Control and Elevator Control 2. Check Enable Elevator Control. 3. Set the elevator parameters. Elevator No. Select an elevator No. for configuration from the drop-down list. Elevator Controller Type Select an elevator controller from the drop-down list.
  • Page 134 DS-K5671B Series Face Recognition Terminal User Manual Click Configuration → Access Control → RS-485 Settings . Check Enable RS-485, and set the parameters. Click Save to save the settings after the configuration. Set the RS-485 No. Peripheral Type Select a peripheral from the drop-down list according the actual situation. You can select from Card Reader, Extension Module, Access Controller, or Disable.

  • Page 135: Set Biometric Parameters

    DS-K5671B Series Face Recognition Terminal User Manual Figure 8-13 Wiegand Page 2. Check Wiegand to enable the Wiegand function. 3. Set a transmission direction. Input The device can connect a Wiegand card reader. Output The can connect an external access controller. And the two devices will transmit the card No.
  • Page 136 DS-K5671B Series Face Recognition Terminal User Manual Figure 8-14 Smart Settings Page Click Save to save the settings after the configuration. Face Anti-spoofing...
  • Page 137 DS-K5671B Series Face Recognition Terminal User Manual Enable or disable the live face detection function. If enabling the function, the device can recognize whether the person is a live one or not. Note Biometric recognition products are not 100% applicable to anti-spoofing environments. If you require a higher security level, use multiple authentication modes.
  • Page 138 DS-K5671B Series Face Recognition Terminal User Manual Enable Hard Hat Detection After enabling the hard hat detection, you can set the strategy. None The function is disabled. The device will not detect whether a person is wearing a hard hat or not.

  • Page 139: Set Theme

    DS-K5671B Series Face Recognition Terminal User Manual Face with Mask 1:N Matching Threshold (ECO Mode) Set the matching threshold when authenticating with face mask via ECO mode 1:N matching mode. The larger the value, the smaller the false accept rate and the larger the false rejection rate.
  • Page 140 DS-K5671B Series Face Recognition Terminal User Manual Slide Show Interval Drag the block or enter the number to set the slide show interval. The picture will be changed according to the interval. Add Media Click Configuration → Media Database .

  • Page 141: Chapter 9 Client Software Configuration

    DS-K5671B Series Face Recognition Terminal User Manual Chapter 9 Client Software Configuration 9.1 Configuration Flow of Client Software Follow the flow diagram below to configure on the client software. Figure 9-1 Flow Diagram of Configuration on Client Software 9.2 Device Management...

  • Page 142: Add Device

    DS-K5671B Series Face Recognition Terminal User Manual Example You can control entrance & exit and manage attendance after adding access control devices to the client; you can perform video intercom with the indoor stations and door stations. 9.2.1 Add Device The client provides three device adding modes including by IP/domain, IP segment, and ISUP protocol.
  • Page 143 DS-K5671B Series Face Recognition Terminal User Manual 3. In the Online Device area, check one or more online device(s), and click Add to open the device adding window. Figure 9-3 Add Single Online Device Figure 9-4 Add Multiple Online Devices...
  • Page 144 DS-K5671B Series Face Recognition Terminal User Manual Name Enter a descriptive name for the device. IP Address Enter the device's IP address. The IP address of the device is obtained automatically in this adding mode. Port You can customize the port number. The port number of the device is obtained automatically in this adding mode.
  • Page 145 DS-K5671B Series Face Recognition Terminal User Manual Add Multiple Detected Online Devices For detected online devices sharing the same user name and password, you can add them to the client in a batch. Before You Start Make sure the to-be-added devices are online.
  • Page 146 DS-K5671B Series Face Recognition Terminal User Manual 9. Click Add to add the devices. Add Device by IP Address or Domain Name If you know the IP address or domain name of the device to add, you can add devices to the client by specifying the IP address (or domain name), user name, password, etc.
  • Page 147 DS-K5671B Series Face Recognition Terminal User Manual Note This function should be supported by the device. ● If you have enabled Certificate Verification, you should click Open Certificate Directory to ● open the default folder, and copy the certificate file exported from the device to this default directory to strengthen the security.
  • Page 148 DS-K5671B Series Face Recognition Terminal User Manual Enter the device password. Caution The password strength of the device can be automatically checked. We highly recommend you change the password of your own choosing (using a minimum of 8 characters, including at least three kinds of following categories: upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product.
  • Page 149 DS-K5671B Series Face Recognition Terminal User Manual Device Account Enter the account name registered on ISUP protocol. ISUP Key For ISUP 5.0 devices, enter the ISUP key if you have set it when configuring network center parameter for the device.

  • Page 150: Reset Device Password

    DS-K5671B Series Face Recognition Terminal User Manual Adding Mode Enter 0 or 1 or 2. Address Edit the address of the device. Port Enter the device port number. The default port number is 8000. User Name Enter the device user name. By default, the user name is admin.

  • Page 151: Group Management

    DS-K5671B Series Face Recognition Terminal User Manual Note For the following operations for resetting the password, contact our technical support. Caution The password strength of the device can be automatically checked. We highly recommend you change the password of your own choosing (using a minimum of 8 characters, including at least three kinds of following categories: upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product.

  • Page 152: Import Resources To Group

    DS-K5671B Series Face Recognition Terminal User Manual 9.3.2 Import Resources to Group You can import the device resources (such as alarm inputs/outputs, access points, etc.) to the added group in a batch. Before You Start Add a group for managing devices. Refer to Add Group .

  • Page 153: Person Management

    DS-K5671B Series Face Recognition Terminal User Manual Steps 1. Enter the Device Management module. 2. Click Device Management → Group to enter the group management page. All the added groups are displayed on the left. 3. Click a group to show the resources added to this group.

  • Page 154: Configure Basic Information

    DS-K5671B Series Face Recognition Terminal User Manual 9.4.2 Configure Basic Information You can add person to the client one by one and configure the person's basic information such as name, gender, email, phone number, etc. Steps 1. Enter Person module.

  • Page 155: Issue A Card By Local Mode

    DS-K5671B Series Face Recognition Terminal User Manual - Click Add and New to add the person and continue to add other persons. 9.4.3 Issue a Card by Local Mode If a card enrollment station is available, you can issue a card by local mode. To read the card number, you should connect the card enrollment station to the PC running the client by USB interface or COM, and place the card on the card enrollment station.
  • Page 156 DS-K5671B Series Face Recognition Terminal User Manual Figure 9-6 Issue a Card by Local Mode 6. Set other related parameters. Card Enrollment Station Select the model of the connected card enrollment station. Note Currently, the supported card enrollment station models include DS-K1F100-D8, DS-K1F100- M, DS-K1F100-D8E, and DS-K1F180-D8E.

  • Page 157: Upload A Face Photo From Local Pc

    DS-K5671B Series Face Recognition Terminal User Manual Enable or disable the buzzing when the card number is read successfully. Card No. Type Select the type of the card number according to actual needs. M1 Card Encryption This field is only available when the model is DS-K1F100-D8, DS-K1F100-D8E, or DS-K1F180- D8E.

  • Page 158: Take A Photo Via Client

    DS-K5671B Series Face Recognition Terminal User Manual 9.4.5 Take a Photo via Client When adding a person, you can take a photo of the her/him via the client and set this photo as the person's profile. Before You Start Make sure PC running the client has a camera or you have connected other USB camera to the PC.

  • Page 159: Collect Face Via Access Control Device

    DS-K5671B Series Face Recognition Terminal User Manual Figure 9-7 Take a Photo via Client 7. Confirm to add the person. - Click Add to add the person and close the Add Person window. - Click Add and New to add the person and continue to add other persons.

  • Page 160: Configure Access Control Information

    DS-K5671B Series Face Recognition Terminal User Manual Note If you select the enrollment station, you should click Login to set related parameters of the device including IP address, port No., user name, and password. Also, you can check Face Anti- Spoofing and select the liveness level as Low, Medium, or High.
  • Page 161 DS-K5671B Series Face Recognition Terminal User Manual Figure 9-8 Configure Access Control Information 4. Set a unique PIN code for the person which can be used for access authentication. - Manually enter a PIN code containing 4 to 8 digits.

  • Page 162: Customize Person Information

    DS-K5671B Series Face Recognition Terminal User Manual Note The valid times for visit is between 1 and 100. You can also check No Limit, then there are no limited times for the visitor to access doors/floors. Device Operator For person with device operator role, he/she is authorized to operate on the access control devices.

  • Page 163: Configure Resident Information

    DS-K5671B Series Face Recognition Terminal User Manual 9.4.9 Configure Resident Information If the person is resident, for video intercom purpose, you need to set the room number for her/him and bind an indoor station. After bound, you can call this person by calling the indoor station and perform video intercom with her/him.

  • Page 164: Import And Export Person Identify Information

    DS-K5671B Series Face Recognition Terminal User Manual 9.4.11 Import and Export Person Identify Information You can import the information and pictures of multiple persons to the client software in a batch. Meanwhile, you can also export the person information and pictures and save them in your PC.

  • Page 165: Export Person Information

    DS-K5671B Series Face Recognition Terminal User Manual 2. Select an added organization in the list, or click Add in the upper-left corner to add an organization and then select it. 3. Click Import to open the Import panel and check Face.

  • Page 166: Delete Registered Pictures

    DS-K5671B Series Face Recognition Terminal User Manual Note All persons' face pictures will be exported if you do not select any organization. 3. Click Export to open the Export panel and check Face as the content to export. 4. Click Export to start exporting.

  • Page 167: Move Persons To Another Organization

    DS-K5671B Series Face Recognition Terminal User Manual Note If you select the enrollment station, you should click Login, and set IP address, port No., user name and password of the device. 5. Click Import to start importing the person information to the client.

  • Page 168: Report Card Loss

    DS-K5671B Series Face Recognition Terminal User Manual - Place the card on the card enrollment station. - Swipe the card on the card reader. - Manually enter the card number and press the Enter key. The person(s) in the list will be issued with card(s).

  • Page 169: Configure Schedule And Template

    DS-K5671B Series Face Recognition Terminal User Manual Note Currently, the supported card enrollment station models include DS-K1F100-D8, DS-K1F100-M, DS-K1F100-D8E, and DS-K1F180-D8E. Card Type This field is only available when the model is DS-K1F100-D8E or DS-K1F180-D8E. Select the card type as EM card or IC card according to the actual card type.

  • Page 170: Add Template

    DS-K5671B Series Face Recognition Terminal User Manual Steps Note You can add up to 64 holidays in the software system. 1. Click Access Control → Schedule → Holiday to enter the Holiday page. 2. Click Add on the left panel.
  • Page 171 DS-K5671B Series Face Recognition Terminal User Manual 1. Click Access Control → Schedule → Template to enter the Template page. Note There are two default templates: All-Day Authorized and All-Day Denied, and they cannot be edited or deleted. All-Day Authorized The access authorization is valid in each day of the week and it has no holiday.

  • Page 172: Set Access Group To Assign Access Authorization To Persons

    DS-K5671B Series Face Recognition Terminal User Manual 9.6 Set Access Group to Assign Access Authorization to Persons After adding the person and configuring the person's credentials, you can create the access groups to define which person(s) can get access to which door(s) and then apply the access group to the access control device to take effect.
  • Page 173 DS-K5671B Series Face Recognition Terminal User Manual Figure 9-9 Display the Selected Person(s) and Access Point(s) 8. After adding the access groups, you need to apply them to the access control device to take effect. 1) Select the access group(s) to apply to the access control device.

  • Page 174: Configure Advanced Functions

    DS-K5671B Series Face Recognition Terminal User Manual Note If you change the persons' access information or other related information, you will view the promptAccess Group to Be Applied on the right corner of the client. You can click the prompt to apply the changed data to the device. You can select either Apply Now or Apply Later.
  • Page 175 DS-K5671B Series Face Recognition Terminal User Manual Configure Parameters for Access Control Device After adding the access control device, you can configure its parameters, including overlaying user information on picture, uploading pictures after capturing, saving captured pictures, etc. Steps 1. Click Access Control → Advanced Function → Device Parameter .
  • Page 176 DS-K5671B Series Face Recognition Terminal User Manual Note If the peripheral card reader supports presenting EM card, the function is also supported to enable/disable the EM card function. 4. Click OK. 5. Optional: Click Copy to, and then select the access control device(s) to copy the parameters in the page to the selected device(s).
  • Page 177 DS-K5671B Series Face Recognition Terminal User Manual Extended Open Duration The door contact can be enabled with appropriate delay after person with extended accesss needs swipes her/his card. Duress Code The door can open by inputting the duress code when there is duress. At the same time, the client can report the duress event.
  • Page 178 DS-K5671B Series Face Recognition Terminal User Manual Alarm of Max. Failed Attempts Enable to report alarm when the card reading attempts reach the set value. Card Reader Type/Card Reader Description Get card reader type and description. They are read-only. Advanced Enable Card Reader Enable the function and e device can be used as an card reader.

  • Page 179: Configure Remaining Open/Closed

    DS-K5671B Series Face Recognition Terminal User Manual After enabling the Live Face Detection function, the system will lock the user's face for 5 minutes if the live face detection is failed for more than the configured attempts. The same user cannot authenticate via the fake face within 5 minutes. Within the 5 minutes, the user can authenticate via the real face twice continuously to unlock.
  • Page 180 DS-K5671B Series Face Recognition Terminal User Manual 2. Select the door that need to be configured on the left panel. 3. To set the door status during the work day, click the Week Schedule and perform the following operations. 1) Click Remain Open or Remain Closed.

  • Page 181: Configure Multi-Factor Authentication

    DS-K5671B Series Face Recognition Terminal User Manual 8) Optional: Click in the Operation column to delete this added holiday period from the holiday list. 9) Click Save. 5. Optional: Click Copy to to copy the door status settings of this door to other door(s).
  • Page 182 DS-K5671B Series Face Recognition Terminal User Manual 3) Select the authentication type as Local Authentication, Local Authentication and Remotely Open Door, or Local Authentication and Super Password from the drop-down list. Local Authentication Authentication by the access control device. Local Authentication and Remotely Open Door Authentication by the access control device and by the client.

  • Page 183: Configure Card Reader Authentication Mode And Schedule

    DS-K5671B Series Face Recognition Terminal User Manual Note For each access control point (door), up to four authentication groups can be added. ● For the authentication group of which authentication type is Local Authentication, up to 8 ● person/card groups can be added to the authentication group.
  • Page 184 DS-K5671B Series Face Recognition Terminal User Manual Figure 9-13 Select Card Reader Authentication Mode Note PIN refers to the PIN code set to open the door. Refer to Configure Access Control Information . 2) Check the modes in the Available Mode list and they will be added to the selected modes list.

  • Page 185: Configure First Person In

    DS-K5671B Series Face Recognition Terminal User Manual Figure 9-14 Set Authentication Modes for Card Readers 6. Optional: Select a configured day and click Copy to Week to copy the same settings to the whole week. 7. Optional: Click Copy to to copy the settings to other card readers.

  • Page 186: Configure Anti-Passback

    DS-K5671B Series Face Recognition Terminal User Manual The door remains open for the configured time duration after the first person is authorized until the remain open duration ends. If you select this mode, you should set the remain open duration.

  • Page 187: Configure Device Parameters

    DS-K5671B Series Face Recognition Terminal User Manual 4. Click of the selected first card reader in the Card Reader Afterward column to open the select card reader dialog. 5. Select the afterward card readers for the first card reader. Note Up to four afterward card readers can be added as afterward card readers for one card reader.
  • Page 188 DS-K5671B Series Face Recognition Terminal User Manual The maximum transmission unit (MTU) of the network interface. 6. Click Save. Set Network Parameters After adding the access control device, you can set the device log uploading mode, and create ISUP account via wired network.
  • Page 189 DS-K5671B Series Face Recognition Terminal User Manual Note The port number of the wireless network and wired network should be consistent with the port number of ISUP. 8. Select the Protocol Type as ISUP. Note If set the ISUP version as 5.0, you should create an ISUP key for the ISUP account.
  • Page 190 DS-K5671B Series Face Recognition Terminal User Manual 5. Set the capture times once triggered which defines how many pictures will be captures for one time. 6. If the capture times is more than 1, set the interval for each capture.
  • Page 191 DS-K5671B Series Face Recognition Terminal User Manual Note These parameters displayed vary according to different device models. Algorithm Select Deep Learning as the face picture database. Save Authentication Picture If enabled, the captured face picture when authenticating will be saved on the device.
  • Page 192 DS-K5671B Series Face Recognition Terminal User Manual 3. Select an access control device in the device list and click M1 Card Encryption Verification to enter the M1 Card Encryption Verification page. 4. Set the switch to on to enable the M1 card encryption function.

  • Page 193: Configure Linkage Actions For Access Control

    DS-K5671B Series Face Recognition Terminal User Manual 2. On the navigation bar on the left, enter Advanced Function → More Parameters . 3. Select an access control device in the device list and click Wiegand to enter the Wiegand Settings page.

  • Page 194: Configure Device Actions For Access Event

    DS-K5671B Series Face Recognition Terminal User Manual 3. Select the event(s) and click Edit Priority to define the priority for the event(s), which can be used to filter events in the Event Center. 4. Set the linkage actions of the event.

  • Page 195: Configure Device Actions For Card Swiping

    DS-K5671B Series Face Recognition Terminal User Manual Capture The real-time capture will be triggered. Access Point The door status of open, close, remain open, and remain close will be triggered. Note The target door and the source door cannot be the same one.

  • Page 196: Configure Device Actions For Person Id

    DS-K5671B Series Face Recognition Terminal User Manual 9. Optional: After adding the device linkage, you can do one or more of the following: Delete Linkage Select the configured linkage settings in the device list and click Delete to Settings delete it.

  • Page 197: Door Control

    DS-K5671B Series Face Recognition Terminal User Manual Delete Linkage Select the configured linkage settings in the device list and click Delete to Settings delete it. Edit Linkage Select the configured linkage settings in the device list and you can edit its Settings event source parameters, including event source and linkage target.

  • Page 198: Check Real-Time Access Records

    DS-K5671B Series Face Recognition Terminal User Manual Unlock When the door is locked, unlock it and it will be open for once. After the open duration, the door will be closed and locked again automatically. Lock When the door is unlocked, lock it and it will be closed. The person who has the access authorization can access the door with credentials.

  • Page 199: Event Center

    DS-K5671B Series Face Recognition Terminal User Manual 2. Optional: Check the event type and event status so that these events will show in the list if the events are detected. The events of unchecked type or status will not be displayed in the list.

  • Page 200: View Real-Time Events

    DS-K5671B Series Face Recognition Terminal User Manual Figure 9-15 Arm Device After turned on, the device(s) will be armed. And notifications about the events triggered by the armed device(s) will be automatically sent to the client software in real-time. 9.10.2 View Real-Time Events The real-time event information received by the client of the connected resources are displayed.

  • Page 201: Search Historical Events

    DS-K5671B Series Face Recognition Terminal User Manual Filter by Device Type and (or) Select device type(s) and (or) priorities to filter Priority events. Filter by Keywords Enter the keywords to filter the events. 3. Optional: Right-click the table header of the event list to customize the event related items to be displayed in the event list.
  • Page 202 DS-K5671B Series Face Recognition Terminal User Manual Steps 1. Click Event Center → Event Search to enter the event search page. 2. Set the filter conditions to display the required events only. Time The time when the event starts. Search by Device Search the events by device or the device's resource channels.
  • Page 203 DS-K5671B Series Face Recognition Terminal User Manual Figure 9-16 Search Historical Events Note If you have selected Access Control as device type in Step 2, you can view extra information such as card No., skin-surface temperature, and abnormal temperature (if device supports) in the...
  • Page 204 DS-K5671B Series Face Recognition Terminal User Manual Figure 9-17 Search Historical Event 4. Optional: Right click the table header of the event list to customize the event related items to be displayed in the event list. 5. Select an event in the event list to view the event details.

  • Page 205: Time And Attendance

    DS-K5671B Series Face Recognition Terminal User Manual Auto-Play Video Check Auto-Play Video to automatically play video when displaying event details. Enlarge Video or Double click the video image to view video in a larger window. ● Picture Put the cursor on the picture, and click to view picture in a larger ●...
  • Page 206 DS-K5671B Series Face Recognition Terminal User Manual Steps Note The parameters configured here will be set as default for the newly added time period. It will not affect the existed one(s). 1. Enter Time & Attendance module. 2. Click Attendance Settings → General Rule .
  • Page 207 DS-K5671B Series Face Recognition Terminal User Manual By default, all card readers of the added access control devices are set as start/end-work check points. If you need to edit check point function of card reader(s), you can perform the following operations.
  • Page 208 DS-K5671B Series Face Recognition Terminal User Manual Add Regular Holiday You can configure a holiday which will take effect annually on regular days during the effective period, such as New Year's Day, Independence Day, Christmas Day, etc. Steps 1. Enter the Time & Attendance module.
  • Page 209 DS-K5671B Series Face Recognition Terminal User Manual 10. Click OK. The added holiday will display in the holiday list and calendar. If the date is selected as different holidays, it will be recorded as the first-added holiday. 11. Optional: After adding the holiday, perform one of the following operations.
  • Page 210 DS-K5671B Series Face Recognition Terminal User Manual Note If you select MySQL, you should import the configuration file (libmysql.dll) from local PC. 5. Set the other required parameters of the third-party database, including server IP address, port No., database name, user name and password.
  • Page 211 DS-K5671B Series Face Recognition Terminal User Manual Must Check The break duration will be calculated and excluded from work hours according to actual check-in and check-out time. Return from Break Early for The actual check-in and check-out time does not exceed the break time, and can be marked as normal work or work overtime.

  • Page 212: Add General Timetable

    DS-K5671B Series Face Recognition Terminal User Manual Enter the mark and select the color. The related fields of attendance status in the report will display with the mark and color. Weekend Mark Enter the mark and select the color. The weekend fields in the report will display with the mark and color.
  • Page 213 DS-K5671B Series Face Recognition Terminal User Manual Figure 9-18 Add Timetable 3. Create a name for the timetable. Note You can click the color icon beside the name to customize the color for the valid timetable on the time bar in the Configuration Result area.
  • Page 214 DS-K5671B Series Face Recognition Terminal User Manual You need to set Valid Authentication Interval for this calculation method. For example, if the interval between card swiping of the same card is less than the set value, the card swiping is invalid.

  • Page 215: Add Shift

    DS-K5671B Series Face Recognition Terminal User Manual Delete Timetable Select a timetable from the list and click Delete to delete it. 9.11.3 Add Shift You can add shift for employees including setting shift period (day, week, month) and the effective attendance time.
  • Page 216 DS-K5671B Series Face Recognition Terminal User Manual Figure 9-19 Add Shift Note You can select more than one timetables. The start and end work time and the valid check-in and out time in different time tables can not be overlapped.
  • Page 217 DS-K5671B Series Face Recognition Terminal User Manual Figure 9-20 Add Multiple Timetables 6. Click Save. The added shift lists on the left panel of the page. At most 64 shifts can be added. 7. Optional: Assign the shift to organization or person for a quick shift schedule.

  • Page 218: Manage Shift Schedule

    DS-K5671B Series Face Recognition Terminal User Manual On the holidays, this schedule is still effective and the persons needs to go to work according to the schedule. Effective for Overtime The persons' overtime will be recorded for this schedule. 5) Click Save to save the quick shift schedule.
  • Page 219 DS-K5671B Series Face Recognition Terminal User Manual If the multiple shift schedules contains three timetables: 00:00 to 07:00, 08:00 to 15:00 and 16:00 to 23:00. The attendance of the person adopting this multiple shift schedules will be effective in any of the three timetables. If the person checks in at 07:50, it will apply the nearest timetable 08:00 to 15:00 to the person's attendance.
  • Page 220 DS-K5671B Series Face Recognition Terminal User Manual Note This is only available for shift with only one timetable. Multiple Shift Schedules It contains more than one timetables. The person can check in/out in any of the timetables and the attendance will be effective.

  • Page 221: Manually Correct Check-In/Out Record

    DS-K5671B Series Face Recognition Terminal User Manual 4. Click one date or click and drag to select multiple dates for the temporary schedule. 5. Select Workday or Non-Workday from drop-down list. If Non-Workday is selected, you need to set the following parameters.

  • Page 222: Add Leave And Business Trip

    DS-K5671B Series Face Recognition Terminal User Manual Before You Start You should add organizations and persons in Person module. For details, refer to Person ● Management . The person's attendance status is incorrect. ● Steps 1. Click Time & Attendance → Attendance Handling to enter attendance handling page.

  • Page 223: Calculate Attendance Data

    DS-K5671B Series Face Recognition Terminal User Manual Before You Start You should add organizations and persons in the Person module. For details, refer to Person Management . Steps 1. Click Time & Attendance → Attendance Handling to enter attendance handling page.
  • Page 224 DS-K5671B Series Face Recognition Terminal User Manual Automatically Calculate Attendance Data You can set a schedule so that the client can automatically calculate attendance data of the previous day at the time you configured every day. Steps Note 1. Enter the Time & Attendance module.

  • Page 225: Attendance Statistics

    DS-K5671B Series Face Recognition Terminal User Manual Note The report items will be displayed in the sequence you have set. Export Report Click Export to export attendance data (CSV file) to local PC. Note The report items will be displayed in the sequence you have set.
  • Page 226 DS-K5671B Series Face Recognition Terminal User Manual Note There are two methods for getting attendance events from the device, including Online and Import File. For more details about operations, refer to Get Events from Device in the user manual of the client software.
  • Page 227 DS-K5671B Series Face Recognition Terminal User Manual Send Report Regularly The client supports multiple report types and you can pre-define the report content and it can send the report automatically to the email address you configured. Steps 1. Enter the Time & Attendance module.

  • Page 228: System Configuration

    DS-K5671B Series Face Recognition Terminal User Manual Note Up to 5 email addresses can be added. You can click + to add a new email address. 5) Optional: Click Preview to view the email details. 6. Click OK. 7. Optional: After adding the custom report, you can do one or more of the followings: Edit Report Select one added report and click Edit to edit its settings.

  • Page 229: Set Picture Storage

    DS-K5671B Series Face Recognition Terminal User Manual Save Event for Set the event deleting cycle to delete the old event. Detect New Software Version After enabled, the client can automatically detect the new software version and remind the user to upgrade the software.

  • Page 230: Set Alarm Sound

    DS-K5671B Series Face Recognition Terminal User Manual Note The default saving path is: Disk/iVMS-4200alarmPicture 5. Click Save. 9.12.3 Set Alarm Sound When the event is triggered, the client can give an audible warning to notify the security personnel. You can set the sound of the audible warning in this section.

  • Page 231: Set File Saving Path

    DS-K5671B Series Face Recognition Terminal User Manual Specify the seconds that the call with indoor station will last for at most. The maximum speaking duration between indoor station and the client can be set from 120s to 600s. Max. Speaking Duration with Door Station Specify the seconds that the call with door station will last for at most.

  • Page 232: Operation And Maintenance

    DS-K5671B Series Face Recognition Terminal User Manual Security Certificate (Optional) If your email server requires authentication, check this checkbox to use authentication to log into the server and enter the login user name and password of your email account. User Name Enter the user name of the sender email address if Server Authentication is checked.

  • Page 233: Appendix A. Tips When Collecting/Comparing Face Picture

    DS-K5671B Series Face Recognition Terminal User Manual Appendix A. Tips When Collecting/Comparing Face Picture The position when collecting or comparing face picture is as below: Positions (Recommended Distance: 0.5 m) Expression Keep your expression naturally when collecting or comparing face pictures, just like the ●...
  • Page 234 DS-K5671B Series Face Recognition Terminal User Manual Size Make sure your face is in the middle of the collecting window.

  • Page 235: Appendix B. Tips For Installation Environment

    DS-K5671B Series Face Recognition Terminal User Manual Appendix B. Tips for Installation Environment 1. Light Source Illumination Reference Value Candle: 10Lux Bulb: 100~850Lux Sunlight: More than 1200Lux 2. Install the device at least 2 meters away from the light, and at least 3 meters away from the window or door.

  • Page 236: Appendix C. Dimension

    DS-K5671B Series Face Recognition Terminal User Manual Appendix C. Dimension...

  • Page 237: Appendix D. Communication Matrix And Device Command

    Device Command Scan the following QR code to get the device common serial port commands. Note that the command list contains all commonly used serial ports commands for all Hikvision access control and video intercom devices. Figure D-2 Device Command...
  • Page 238 UD27224B-B...

This manual is also suitable for:

Ds-k5671b-zvDs-k5671b-zhDs-k5671b-zu

Table of Contents
