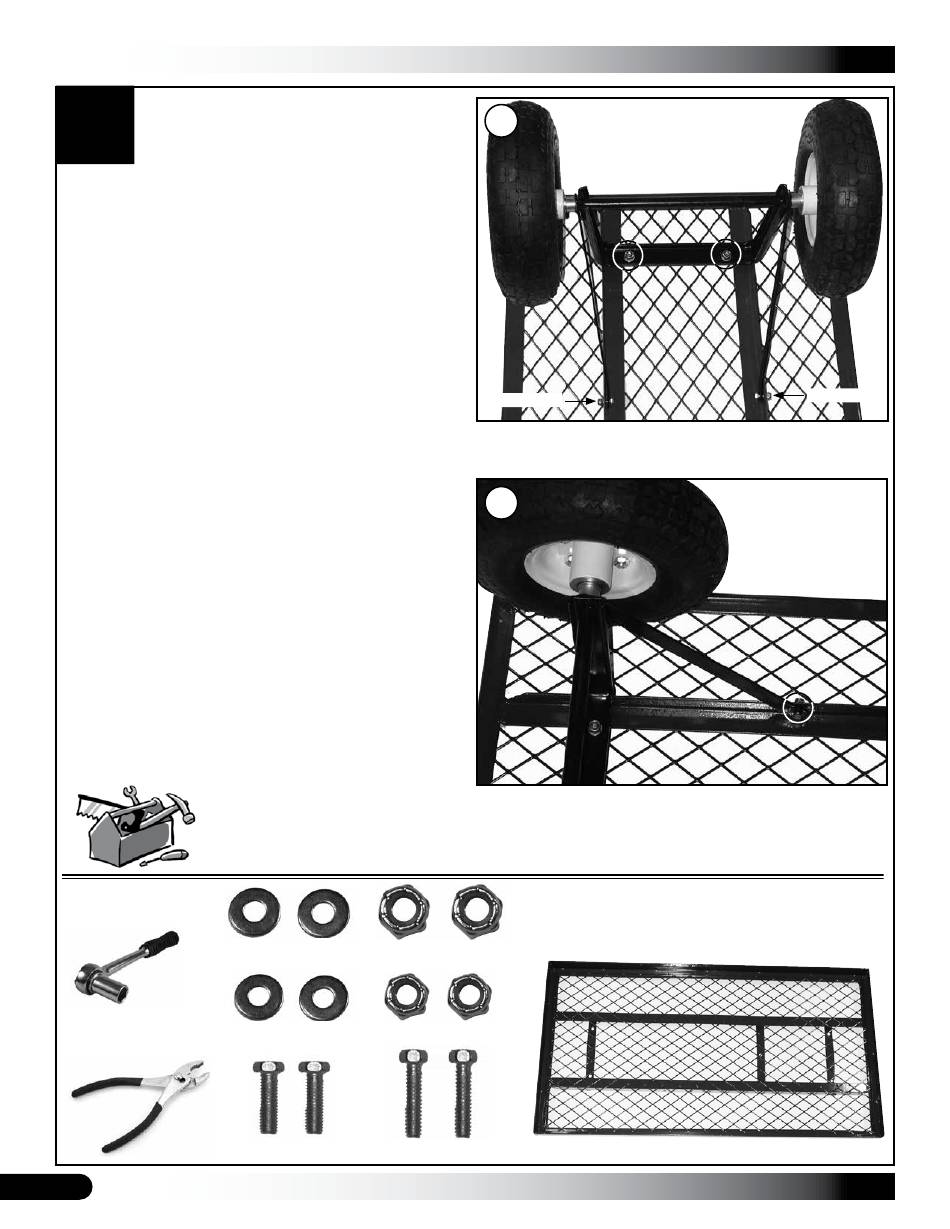

BED ASSEMBLY

1. Place the wagon bed on a flat surface with the angled
frame supports facing up. Protect the finished surface
of the bed and other parts by covering the work
surface with cardboard or similar material.
2. Place the rear axle assembly on the wagon bed
supports and align bolt holes.
3. Insert bolts through the bed frame supports and
rear axle support and secure using two (2) M8x18
hex bolts, two (2) M8 flat washers, and two (2) M8
locknuts. See diagram A.
4. Align the holes of the rear axle braces (right and left)
with holes on the wagon bed frame.
5. Secure in place using two (2) M6x20 hex bolts, two
(2) M6 flat washers, and two (2) M6 locknuts as
shown in the diagram B.
Parts List and Tools Required
M8 Washers (2)
Socket/Wrench Set
Pliers
M8x18 Hex Bolts (2) M6x20 Hex Bolts (2)
6
M8 Locknuts (2)
M6 Washers (2)
M6 Locknuts (2)
A
Step 4 & 5
Circles show where the rear axle assembly attach to the bed
frame.
B
Circle shows where the bed support is attached to the bed frame
and where to install the M6 x 20 hex bolts.
Wagon Bed (1)
Step 4 & 5
