Summary of Contents for FarmTek WD8045

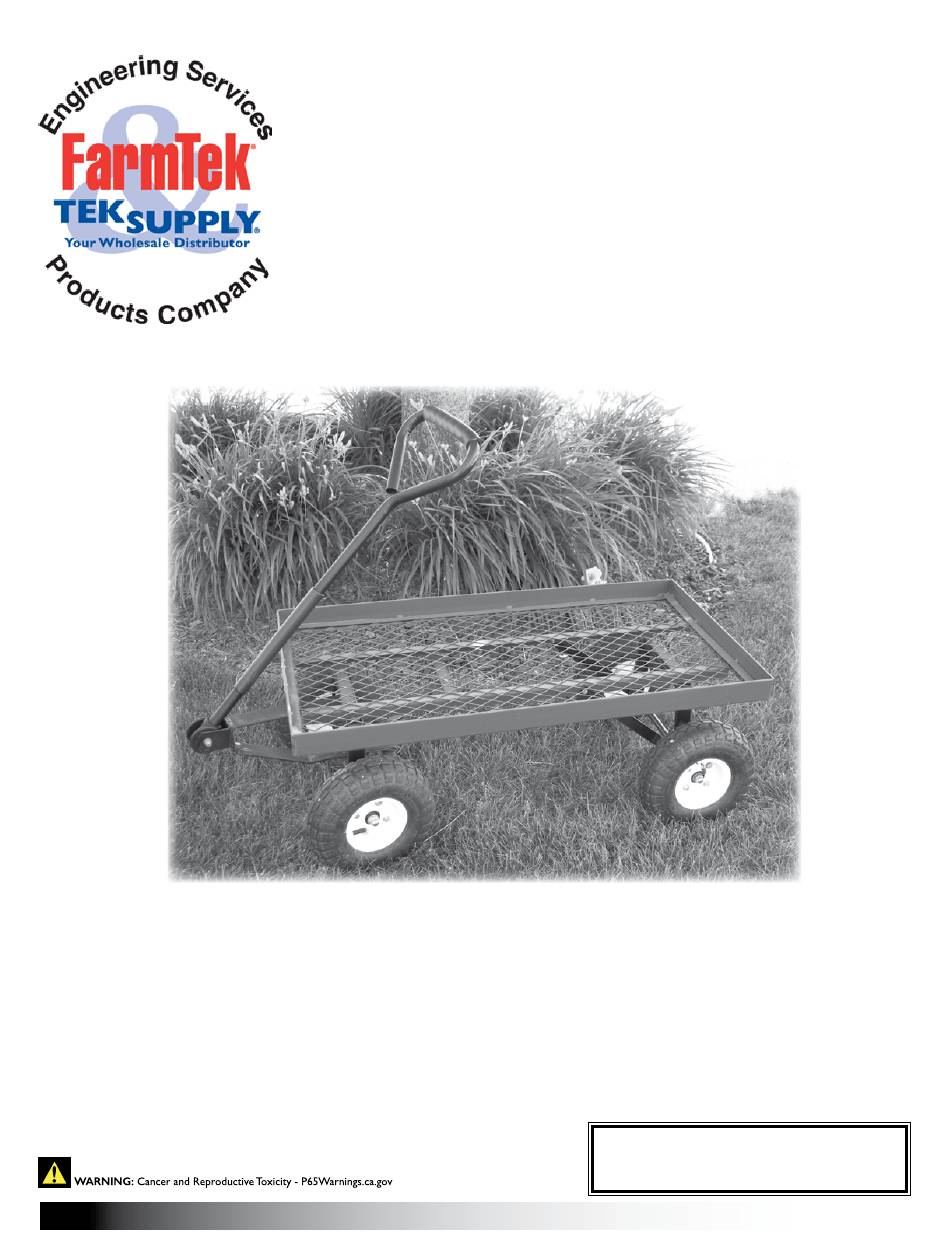

- Page 1 CARTS AND WAGONS WD8045 Nursery Wagon 12197 Wagon shown above may differ slightly in design from actual wagon. ©2009 FarmTek ® All Rights Reserved. Reproduction is prohibited without permission. STK# Description WD8045 Nursery Wagon Revision date: 07.15.09...
-
Page 2: Care And Maintenance
CARTS AND WAGONS CARE AND MAINTENANCE • Periodically check all fasteners to assure they are tight. • Clean the nursery wagon using water and mild soap. Rinse with water sprayed from a garden hose. • Check the tire pressure and adjust to recommended pressure if needed. - Page 3 CARTS AND WAGONS BACK WHEEL ASSEMBLY NOTE: Hardware may ship attached to parts. To better align the wagon, do not fully tighten the nuts and bolts until the entire wagon is assembled. 1. If needed, remove locknuts and large washers from the rear axle support.
-
Page 4: Front Wheel Assembly
CARTS AND WAGONS FRONT WHEEL ASSEMBLY Yoke NOTE: Hardware may ship attached to parts. 1. Attach steering link to the front axle support using two (2) M8x18 bolts, M6 flat washers, and M6 locknuts to secure the support as shown in diagram A. 2. - Page 5 CARTS AND WAGONS FRONT WHEEL ASSEMBLY (continued) Curved 4. Attach one end of the front axle brace to the yoke and axle support using one (1) M8x25 bolt, M6 flat washer, and M6 locknut. Secure in place as shown in diagram A. Locknut should be snug.
-
Page 6: Bed Assembly
CARTS AND WAGONS BED ASSEMBLY 1. Place the wagon bed on a flat surface with the angled frame supports facing up. Protect the finished surface of the bed and other parts by covering the work surface with cardboard or similar material. 2. - Page 7 CARTS AND WAGONS BED ASSEMBLY (continued) 6. Align the holes of the front axle assembly with the three holes remaining on the wagon bed frame. 7. Secure in place using three (3) M8x18 hex bolts, three (3) M8 flat washers, and three (3) M8 locknuts as shown diagram C.
