BASIC PULSE CONTROL

This instrument can be triggered by its own internal clock or by an external TTL trigger
signal. In either case, two output channels respond to the trigger: OUT and SYNC. The
OUT channel is the signal that is applied to the load. Its amplitude and pulse width are
variable. The SYNC pulse is a fixed-width TTL-level reference pulse used to trigger
oscilloscopes or other measurement systems. When the delay is set to a positive value
the SYNC pulse precedes the OUT pulse. When the delay is set to a negative value the
SYNC pulse follows the OUT pulse.

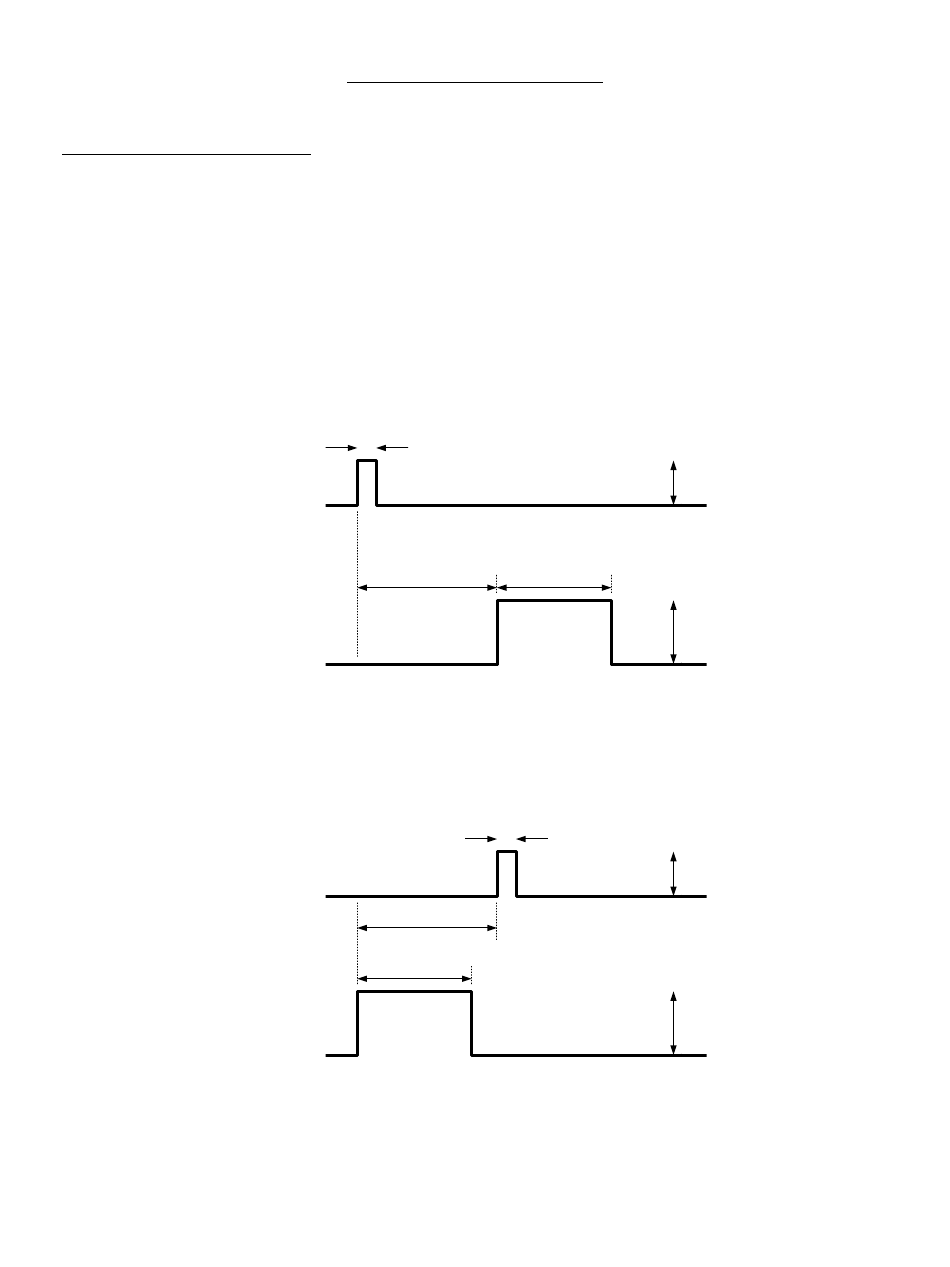

These pulses are illustrated below, assuming internal triggering and a positive delay:
SYNC OUT
(generated by the
internal oscillator)
MAIN OUTPUT
If the delay is negative, the order of the SYNC and OUT pulses is reversed:
SYNC OUT
(generated by the
internal oscillator)
MAIN OUTPUT
The next figure illustrates the relationship between the signal when an external TTL-
level trigger is used:

GENERAL INFORMATION

100 ns, FIXED
DELAY > 0 PULSE WIDTH
Figure A
DELAY < 0
PULSE WIDTH
Figure B
3V, FIXED
AMPLITUDE,
VARIABLE
100 ns, FIXED
3V, FIXED
AMPLITUDE,
VARIABLE
21
