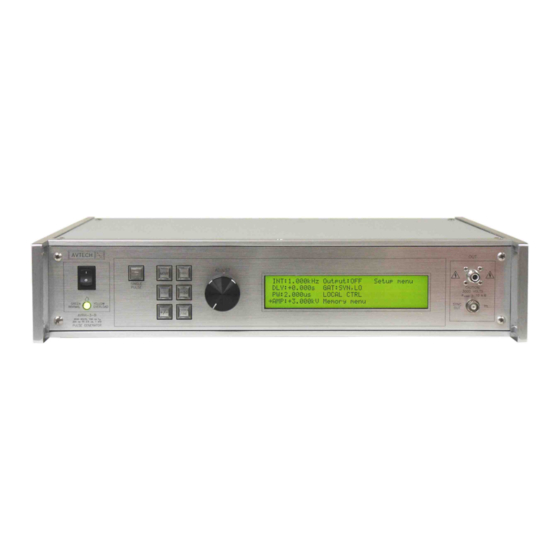

Avtech AVRH-3-B Instructions Manual

3000 volt, 100 ns rise time high performance pulse generator with ieee 488.2 and rs-232 control
Hide thumbs Also See for AVRH-3-B:
Table of Contents

Advertisement

Quick Links

Download this manual
A V T E C H
E L E C T R O S Y S T E M S
L T D .
N A N O S E C O N D
W A V E F O R M
E L E C T R O N I C S
S I N C E
1 9 7 5
info@avtechpulse.com
Tel: 888-670-8729 (USA & Canada)
BOX 5120, LCD MERIVALE
http://www.avtechpulse.com/
or +1-613-686-6675 (Worldwide)
OTTAWA, CANADA K2C3H5
INSTRUCTIONS
MODEL AVRH-3-B
3000 VOLT, 100 ns RISE TIME
HIGH PERFORMANCE PULSE GENERATOR
WITH IEEE 488.2 AND RS-232 CONTROL
SERIAL NUMBER:
14156

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AVRH-3-B and is the answer not in the manual?

Questions and answers

Related Manuals for Avtech AVRH-3-B

Summary of Contents for Avtech AVRH-3-B

  • Page 1 1 9 7 5 info@avtechpulse.com Tel: 888-670-8729 (USA & Canada) BOX 5120, LCD MERIVALE http://www.avtechpulse.com/ or +1-613-686-6675 (Worldwide) OTTAWA, CANADA K2C3H5 INSTRUCTIONS MODEL AVRH-3-B 3000 VOLT, 100 ns RISE TIME HIGH PERFORMANCE PULSE GENERATOR WITH IEEE 488.2 AND RS-232 CONTROL SERIAL NUMBER: 14156...

  • Page 2: Warranty

    Avtech product is found to be defective, Avtech shall at its option repair or replace said defective item. This warranty does not apply to units which have been dissembled, modified or subjected to conditions exceeding the applicable specifications or ratings.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS WARRANTY........................2 TECHNICAL SUPPORT....................2 TABLE OF CONTENTS....................3 INTRODUCTION.......................5 AVAILABLE OPTIONS......................5 HIGH-VOLTAGE PRECAUTIONS..................6 SPECIFICATIONS......................7 REGULATORY NOTES....................8 FCC PART 18.......................... 8 EC DECLARATION OF CONFORMITY..................8 DIRECTIVE 2011/65/EU (RoHS).....................9 DIRECTIVE 2002/96/EC (WEEE)....................9 FIRMWARE LICENSING.......................10 INSTALLATION......................11 VISUAL CHECK........................11 POWER RATINGS........................ 11 CONNECTION TO THE POWER SUPPLY................11 PROTECTION FROM ELECTRIC SHOCK................12 ENVIRONMENTAL CONDITIONS..................13...
  • Page 4 PCB 183A-S AND 183A-P CAPACITOR BANKS..............38 PCB 94H - ALARM BOARD....................39 PCB 104G - KEYPAD / DISPLAY BOARD................40 MAIN WIRING - POSITIVE UNITS (-P).................41 PERFORMANCE CHECKSHEET..................42 Manual Reference: /fileserver2/officefiles/instructword/avrh/AVRH-3-B,ed14.odt. Last modified September 7, 2021. Copyright © 2021 Avtech Electrosystems Ltd, All Rights Reserved.

  • Page 5: Introduction

    "-N" model suffix can generate up to -3000V. Instruments with the "-PN" suffix can generate both polarities. The AVRH-3-B is a highly flexible instrument. Aside from the internal trigger source, it can also be triggered or gated by external TTL-level signals. A front-panel pushbutton or a computer command can also be used to trigger the instrument.

  • Page 6: High-Voltage Precautions

    4. Keep in mind that all cables, connectors, oscilloscope probes, and loads must have an appropriate voltage rating. 5. Do not attempt any repairs on the instrument, beyond the fuse replacement procedures described in this manual. Contact Avtech technical support (see page 2 for contact information) if the instrument requires servicing.

  • Page 7: Specifications

    ISO/IEC 17025:2005 accredited calibration laboratory. However, Avtech itself does not claim any accreditation. For applications requiring traceable performance, use a calibrated measurement system rather than relying on the accuracy of the pulse generator settings.

  • Page 8: Regulatory Notes

    If interference is observed, check that appropriate well-shielded cabling is used on the output connectors. Contact Avtech (info@avtechpulse.com) for advice if you are unsure of the most appropriate cabling. Also, check that your load is adequately shielded. It may be necessary to enclose the load in a metal enclosure.

  • Page 9: Directive 2011/65/Eu (Rohs)

    < 1000 ppm (0.1% by mass) DIRECTIVE 2002/96/EC (WEEE) European customers who have purchased this equipment directly from Avtech will have completed a “WEEE Responsibility Agreement” form, accepting responsibility for WEEE compliance (as mandated in Directive 2002/96/EC of the European Union and local...

  • Page 10: Firmware Licensing

    Article 9 of Directive 2002/96/EC. Customers who have purchased Avtech equipment through local representatives should consult with the representative to determine who has responsibility for WEEE compliance. Normally, such responsibilities with lie with the representative, unless other arrangements (under Article 9) have been made.

  • Page 11: Installation

    INSTALLATION VISUAL CHECK After unpacking the instrument, examine to ensure that it has not been damaged in shipment. Visually inspect all connectors, knobs, liquid crystal displays (LCDs), and the handles. Confirm that a power cord, a GPIB cable, and two instrumentation manuals (this manual and the “Programming Manual for -B Instruments”) are with the instrument.

  • Page 12: Protection From Electric Shock

    5. Do not attempt any repairs on the instrument, beyond the fuse replacement procedures described in this manual. Contact Avtech technical support (see page 2 for contact information) if the instrument requires servicing. Service is to...

  • Page 13: Environmental Conditions

    6. no pollution or only dry, non-conductive pollution. LABVIEW DRIVERS A LabVIEW driver for this instrument is available for download on the Avtech web site, at http://www.avtechpulse.com/labview. A copy is also available in National Instruments' Instrument Driver Library at http://www.natinst.com/.

  • Page 14: Fuses

    FUSES This instrument contains four fuses. All are accessible from the rear-panel. Two protect the AC prime power input, and two protect the internal DC power supplies. The locations of the fuses on the rear panel are shown in the figure below: Fuses #1 and #2 Fuse #4 Fuse #3...

  • Page 15: Dc Fuse Replacement

    DC FUSE REPLACEMENT The DC fuses may be replaced by inserting the tip of a flat-head screwdriver into the fuse holder slot, and rotating the slot counter-clockwise. The fuse and its carrier will then pop out. FUSE RATINGS The following table lists the required fuses: Recommended Replacement Part Nominal Fuses...

  • Page 16: Front Panel Controls

    FRONT PANEL CONTROLS 1. POWER Switch . This is the main power switch. When turning the instrument on, there is normally a delay of 10 seconds before anything is shown on the main display, as the internal operating system boots up. If the main menu does not appear after 30 seconds, turn off the instrument and leave it off for at least 60 seconds before applying power again.
  • Page 17 output by a duration set by the "DELAY" controls and has an approximate amplitude of +3 Volts to R > 1kΩ with a pulse width of approximately 100 ns. 5. LIQUID CRYSTAL DISPLAY (LCD) . This LCD is used in conjunction with the keypad to change the instrument settings.

  • Page 18: Rear Panel Controls

    REAR PANEL CONTROLS GATE LOCK TRIG RS-232 GPIB Note: some connectors may be in different positions than shown above, depending on the exact combination of options ordered. 1. AC POWER INPUT . An IEC-320 C14 three-pronged recessed male socket is provided on the back panel for AC power connection to the instrument.
  • Page 19 When triggering externally, the instrument can be set such that the output pulse width tracks the pulse width on this input, or the output pulse width can be set independently. 6. GPIB Connector . A standard GPIB cable can be attached to this connector to allow the instrument to be computer-controlled.

  • Page 20: General Information

    GENERAL INFORMATION BASIC PULSE CONTROL This instrument can be triggered by its own internal clock or by an external TTL trigger signal. In either case, two output channels respond to the trigger: OUT and SYNC. The OUT channel is the signal that is applied to the load. Its amplitude and pulse width are variable.
  • Page 21 > 50 ns TRIG TTL LEVELS (external input) (0V and 3V-5V) PROPAGATION DELAY (FIXED) 100 ns, FIXED SYNC OUT 3V, FIXED DELAY > 0 PULSE WIDTH AMPLITUDE, VARIABLE MAIN OUTPUT Figure C As before, if the delay is negative, the order of the SYNC and OUT pulses is reversed. The last figure illustrates the relationship between the signal when an external TTL-level trigger is used in the PW mode.

  • Page 22: Trigger Modes

    TRIGGER MODES This instrument has four trigger modes:  Internal Trigger: the instrument controls the trigger frequency, and generates the clock internally.  External Trigger: the instrument is triggered by an external TTL-level clock on the back-panel TRIG connector.  Manual Trigger: the instrument is triggered by the front-panel “SINGLE PULSE”...

  • Page 23: System Description

    SYSTEM DESCRIPTION The AVRH-3-B generates a 3000 Volt pulse by first generating a 750 Volt pulse of the desired width. This pulse is then supplied to a x4 transformer which increases the output amplitude to 3000 Volts (to R > 10 kΩ). DC potentials as high as 800 Volts are employed in the generation of the 750 Volt pulse so extreme caution must be employed when repairing this instrument.

  • Page 24: Optional Features

    MALE to BNC FEMALE adapter, as shown below: Plugs into SHV jack on front panel SHV Plug MHV Female BNC Female MHV Male The two adapters may be used together to provide an SHV-to-BNC function for the Avtech AVR-8A and AVRH families of high-voltage pulse generators.

  • Page 25: Protecting Your Instrument

    PROTECTING YOUR INSTRUMENT TURN OFF INSTRUMENT WHEN NOT IN USE The lifetime of the switching elements in the pulse generator module is proportional to the running time of the instrument. For this reason the prime power to the instrument should be turned off when the instrument is not in use. In the case of failure, the switching elements are easily replaced following the procedure described in a following section.

  • Page 26: Operational Check

    Instruments” thoroughly. The “Local Control” section describes the front panel controls used in this operational check - in particular, the MOVE, CHANGE, and ADJUST controls. REAL-TIME AVTECH OSCILLOSCOPE AVRH-3-B R1, 10 kΩ, > 10 Watts scope probe CHANNEL A POWER R2, 1 kΩ,...
  • Page 27 2. Turn on the AVRH-3-B. The main menu will appear on the LCD. 3. To set the AVRH-3-B to trigger from the internal clock at a PRF of 100 Hz: a) The arrow pointer should be pointing at the frequency menu item. If it is not, press the MOVE button until it is.
  • Page 28 a) Press the MOVE button until the arrow pointer is pointing at the pulse width menu item. b) Press the CHANGE button. The pulse width submenu will appear. Rotate the ADJUST knob until the pulse width is set at 500 ns. c) The arrow pointer should be pointing at the “Normal”...
  • Page 29 value. This completes the operational check.

  • Page 30: Programming Your Pulse Generator

    PROGRAMMING YOUR PULSE GENERATOR KEY PROGRAMMING COMMANDS The “Programming Manual for -B Instruments” describes in detail how to connect the pulse generator to your computer, and the programming commands themselves. A large number of commands are available; however, normally you will only need a few of these.

  • Page 31: All Programming Commands

    *rst (resets the instrument) trigger:source external (selects external triggering) pulse:width in = PW output on (turns on the output) volt:ampl 1500 (sets the amplitude to +1500 V) ("-N" units should use "volt:ampl -1500) These commands will satisfy 90% of your programming needs. ALL PROGRAMMING COMMANDS For more advanced programmers, a complete list of the available commands is given below.
  • Page 32 :COMMunicate :GPIB :ADDRess <numeric value> :SERial :CONTrol :RTS ON | IBFull | RFR :[RECeive] :BAUD 1200 | 2400 | 4800 | 9600 | 19200 | 38400 | 57600 | 115200 :ERRor :[NEXT]? [query only] :COUNT? [query only] :VERSion? [query only] TRIGger: :SOURce INTernal | EXTernal | MANual | HOLD | IMMediate...

  • Page 33: Mechanical Information

    There are no user-adjustable internal circuits. For repairs other than fuse replacement, please contact Avtech (info@avtechpulse.com) to arrange for the instrument to be returned to the factory for repair. Service is to be performed solely by qualified service personnel.

  • Page 34: Maintenance

    MAINTENANCE REGULAR MAINTENANCE This instrument does not require any regular maintenance. On occasion, one or more of the four rear-panel fuses may require replacement. All fuses can be accessed from the rear panel. See the “FUSES” section for details. CLEANING If desired, the interior of the instrument may be cleaned using compressed air to dislodge any accumulated dust.

  • Page 35: Wiring Diagrams

    WIRING DIAGRAMS WIRING OF AC POWER...

  • Page 36: Pcb 158R5 - Low Voltage Power Supply

    PCB 158R5 - LOW VOLTAGE POWER SUPPLY...

  • Page 37: Pcb 170C - High-Voltage Power Supply

    PCB 1 70C - HIGH-VOLTAGE POWER SUPPLY...

  • Page 38: Pcb 183A-S And 183A-P Capacitor Banks

    PCB 183A-S AND 183A-P CAPACITOR BANKS 183A-S (SERIES CAPACIT OR BANK) 7 2 00 K -ND, Mfg . 7 2 0 0, 4-4 0 th read stando ff 3 /8" HV + GN D 7 2 00 K -ND, Mfg . 7 2 0 0, 4-4 0 th read stando ff 3 /8" X1 1 7 2 00 K -ND, Mfg .

  • Page 39: Pcb 94H - Alarm Board

    PCB 94H - ALARM BOARD...

  • Page 40: Pcb 104G - Keypad / Display Board

    PCB 104G - KEYPAD / DISPLAY BOARD...

  • Page 41: Main Wiring - Positive Units (-P)

    MAIN WIRING - POSITIVE UNITS (-P)

  • Page 42: Performance Checksheet

    PERFORMANCE CHECKSHEET...
