INSTRUCTIONS

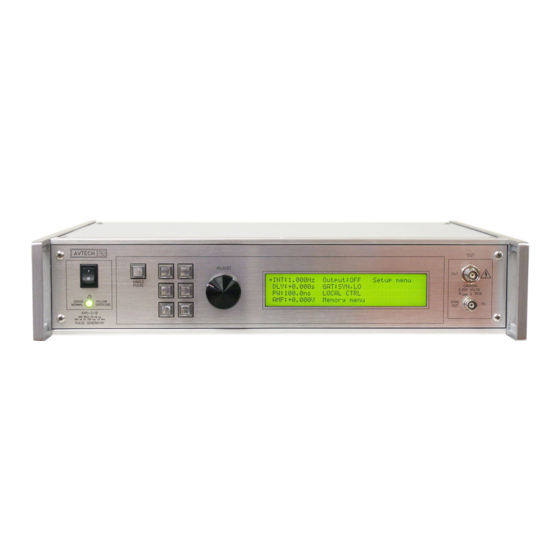

MODEL AVR-E3-B
100 VOLTS, 500 ps RISE TIME
HIGH PERFORMANCE PULSE GENERATOR
WITH IEEE 488.2 AND RS-232 CONTROL
SERIAL NUMBER: ____________
E L E C T R O S Y S T E M S
N A N O S E C O N D
W A V E F O R M
S I N C E
-
http://www.avtechpulse.com/
E L E C T R O N I C S
1 9 7 5
BOX 5120, LCD MERIVALE
X
OTTAWA, ONTARIO
CANADA K2C 3H5
L T D .
Advertisement
Table of Contents
Related Manuals for Avtech AVR-E3-B
Summary of Contents for Avtech AVR-E3-B
- Page 1 OGDENSBURG, NY FAX: 800-561-1970 (USA & Canada) or +1-613-686-6679 (Intl) OTTAWA, ONTARIO U.S.A. 13669-0265 CANADA K2C 3H5 info@avtechpulse.com http://www.avtechpulse.com/ INSTRUCTIONS MODEL AVR-E3-B 100 VOLTS, 500 ps RISE TIME HIGH PERFORMANCE PULSE GENERATOR WITH IEEE 488.2 AND RS-232 CONTROL SERIAL NUMBER: ____________...
-
Page 2: Warranty
Avtech product is found to be defective, Avtech shall at its option repair or replace said defective item. This warranty does not apply to units which have been dissembled, modified or subjected to conditions exceeding the applicable specifications or ratings. -
Page 3: Table Of Contents
TABLE OF CONTENTS WARRANTY........................2 TECHNICAL SUPPORT....................2 TABLE OF CONTENTS....................3 INTRODUCTION.......................6 AVAILABLE OPTIONS......................7 SPECIFICATIONS......................8 REGULATORY NOTES.....................9 FCC PART 18.......................... 9 EC DECLARATION OF CONFORMITY...................9 DIRECTIVE 2011/65/EU (RoHS)...................10 DIRECTIVE 2002/96/EC (WEEE)..................10 AC POWER SUPPLY REGULATORY NOTES..............11 FIRMWARE LICENSING......................11 INSTALLATION.......................13 VISUAL CHECK........................13 POWER RATINGS......................... - Page 4 DC OFFSET, -OS OPTION....................25 ELECTRONIC AMPLITUDE CONTROL, -EA OPTION............25 PROTECTING YOUR INSTRUMENT................26 TURN OFF INSTRUMENT WHEN NOT IN USE..............26 DO NOT EXCEED 100 kHz (20 kHz FOR -W2 & -W3 UNITS)..........26 USE A 50Ω LOAD......................... 26 OPERATIONAL CHECK....................27 PROGRAMMING YOUR PULSE GENERATOR............31 KEY PROGRAMMING COMMANDS..................31 ALL PROGRAMMING COMMANDS..................32 MECHANICAL INFORMATION..................34...
- Page 5 MAIN WIRING, -W3 MODELS (2 OF 2).................52 MAIN WIRING, AVR-E3-B-PN-W1-OT13-ATT-AK2-AC02.............53 PERFORMANCE CHECKSHEET...................54 Manual Reference: /fileserver2/officefiles/instructword/avr-e/AVR-E3-B,ed10.odt. Last modified July 28, 2016. Copyright © 2016 Avtech Electrosystems Ltd, All Rights Reserved.
-
Page 6: Introduction
A 50 Ohm load is required for proper operation. The output stage may be damaged if the output is not terminated into a 50Ω load. The AVR-E3-B is a highly flexible instrument. Aside from the internal trigger source, it can also be triggered or gated by external TTL-level signals. A front-panel pushbutton or a computer command can also be used to trigger the instrument. -
Page 7: Available Options
AVAILABLE OPTIONS The AVR-E3-B is available with several options, including: -ATT Option: Adds internal relay-switched 10 dB and 20 dB attenuators to provide improved low-amplitude performance. The attenuators are automatically enabled based on the programmed amplitude, and can handle the full output power of the instrument. -
Page 8: Specifications
6) Add the suffix -VXI to the model number to specify the Ethernet port.. 7) Fall time increases to < 3 ns for pulse widths less than 15 ns. A 50Ω load is required. Other loads may damage the instrument. Consult Avtech (info@avtechpulse.com) if you need to drive other load impedances. -
Page 9: Regulatory Notes
If interference is observed, check that appropriate well-shielded cabling is used on the output connectors. Contact Avtech (info@avtechpulse.com) for advice if you are unsure of the most appropriate cabling. Also, check that your load is adequately shielded. It may be necessary to enclose the load in a metal enclosure. -
Page 10: Directive 2011/65/Eu (Rohs)
< 100 ppm (0.01% by mass) DIRECTIVE 2002/96/EC (WEEE) European customers who have purchased this equipment directly from Avtech will have completed a “WEEE Responsibility Agreement” form, accepting responsibility for WEEE compliance (as mandated in Directive 2002/96/EC of the European Union and local laws) on behalf of the customer, as provided for under Article 9 of Directive 2002/96/EC. -
Page 11: Ac Power Supply Regulatory Notes
compliance. Normally, such responsibilities with lie with the representative, unless other arrangements (under Article 9) have been made. Requirements for WEEE compliance may include registration of products with local governments, reporting of recycling activities to local governments, and financing of recycling activities. - Page 12 Earlier firmware versions do not contain any open source software.
-
Page 13: Installation
INSTALLATION VISUAL CHECK After unpacking the instrument, examine to ensure that it has not been damaged in shipment. Visually inspect all connectors, knobs, liquid crystal displays (LCDs), and the handles. Confirm that a power cord, a GPIB cable, and two instrumentation manuals (this manual and the “Programming Manual for -B Instruments”) are with the instrument. -
Page 14: Protection From Electric Shock
5. Do not attempt any repairs on the instrument, beyond the fuse replacement procedures described in this manual. Contact Avtech technical support (see page 2 for contact information) if the instrument requires servicing. Service is to... -
Page 15: Environmental Conditions
6. no pollution or only dry, non-conductive pollution. LABVIEW DRIVERS A LabVIEW driver for this instrument is available for download on the Avtech web site, at http://www.avtechpulse.com/labview. A copy is also available in National Instruments' Instrument Driver Library at http://www.natinst.com/. -
Page 16: Fuses
FUSES This instrument contains four fuses. All are accessible from the rear-panel. Two protect the AC prime power input, and two protect the internal DC power supplies. The locations of the fuses on the rear panel are shown in the figure below: Fuses #1 and #2 Fuse #4 Fuse #3... -
Page 17: Dc Fuse Replacement
DC FUSE REPLACEMENT The DC fuses may be replaced by inserting the tip of a flat-head screwdriver into the fuse holder slot, and rotating the slot counter-clockwise. The fuse and its carrier will then pop out. FUSE RATINGS The following table lists the required fuses for standard models: Recommended Replacement Part Nominal Fuses... -
Page 18: Front Panel Controls
FRONT PANEL CONTROLS 1. POWER Switch. This is the main power switch. When turning the instrument on, there is normally a delay of 10 seconds before anything is shown on the main display, as the internal operating system boots up. If the main menu does not appear after 30 seconds, turn off the instrument and leave it off for at least 60 seconds before applying power again. - Page 19 for -B Instruments” describes the menus and submenus in detail. 6. KEYPAD. Control Name Function MOVE This moves the arrow pointer on the display. CHANGE This is used to enter the submenu, or to select the operating mode, pointed to by the arrow pointer. ×10 If one of the adjustable numeric parameters is displayed, this increases the setting by a factor of ten.
-
Page 20: Rear Panel Controls
REAR PANEL CONTROLS 9, 10 GATE RS-232 TRIG GPIB Note: some connectors may be in different positions than shown above, depending on the exact combination of options ordered. 1. AC POWER INPUT. An IEC-320 C14 three-pronged recessed male socket is provided on the back panel for AC power connection to the instrument. - Page 21 6. GPIB Connector. A standard GPIB cable can be attached to this connector to allow the instrument to be computer-controlled. See the “Programming Manual for -B Instruments” for more details on GPIB control. 7. RS-232 Connector. A standard serial cable with a 25-pin male connector can be attached to this connector to allow the instrument to be computer-controlled.
-
Page 22: General Information
GENERAL INFORMATION BASIC PULSE CONTROL This instrument can be triggered by its own internal clock or by an external TTL trigger signal. In either case, two output channels respond to the trigger: OUT and SYNC. OUT. This is the main output. The maximum output voltage is 100V. ... -
Page 23: Trigger Modes
The next figure illustrates the relationship between the signal when an external TTL- level trigger is used: > 50 ns TRIG TTL LEVELS (external input) (0V and 3V-5V) PROPAGATION DELAY (FIXED) 100 ns, FIXED SYNC OUT 3V, FIXED DELAY > 0 PULSE WIDTH AMPLITUDE, VARIABLE... -
Page 24: Gating Modes
GATING MODES Triggering can be suppressed by a TTL-level signal on the rear-panel GATE connector. The instrument can be set to stop triggering when this input high or low, using the front- panel gate menu or the appropriate programming commands. This input can also be set to act synchronously or asynchronously. -
Page 25: Optional Features
OPTIONAL FEATURES RACK MOUNTING, -R5 OPTION A rack mounting kit is available. The -R5 rack mount kit may be installed after first removing the one Phillips screw on the side panel adjacent to the front handle. DC OFFSET, -OS OPTION A DC offset can be added to the output signal by applying a DC voltage to the rear-panel OS connector. -
Page 26: Protecting Your Instrument
PROTECTING YOUR INSTRUMENT TURN OFF INSTRUMENT WHEN NOT IN USE The lifetime of the switching elements in the pulse generator module is proportional to the running time of the instrument. For this reason the prime power to the instrument should be turned off when the instrument is not in use. In the case of failure, the switching elements are easily replaced following the procedure described in a following section. -
Page 27: Operational Check
A 50 Ohm load is required for proper operation. The output stage may be damaged if the output is not terminated into a 50Ω load. The AVR-E3-B output may be observed using either a high-speed sampling oscilloscope, or a slower real-time oscilloscope. To accurately observe these rising and falling edges, a sampling oscilloscope with a bandwidth of 2 GHz is required. - Page 28 200 V/div for real-time scopes, and the horizontal setting at 20 ns/div. 2. Turn on the AVR-E3-B. The main menu will appear on the LCD. 3. To set the AVR-E3-B to trigger from the internal clock at a PRF of 10 kHz:...
- Page 29 a) The arrow pointer should be pointing at the frequency menu item. If it is not, press the MOVE button until it is. b) Press the CHANGE button. The frequency submenu will appear. Rotate the ADJUST knob until the frequency is set at 10 kHz. c) The arrow pointer should be pointing at the “Internal”...
- Page 30 d) Press CHANGE to return to the main menu. 8. To change the output amplitude: a) Press the MOVE button until the arrow pointer is pointing at the amplitude menu item. b) Press the CHANGE button. The amplitude submenu will appear. Rotate the ADJUST knob until the amplitude is set at +100V (or - 100V for "-N"...
-
Page 31: Programming Your Pulse Generator
PROGRAMMING YOUR PULSE GENERATOR KEY PROGRAMMING COMMANDS The “Programming Manual for -B Instruments” describes in detail how to connect the pulse generator to your computer, and the programming commands themselves. A large number of commands are available; however, normally you will only need a few of these. -
Page 32: All Programming Commands
ALL PROGRAMMING COMMANDS For more advanced programmers, a complete list of the available commands is given below. These commands are described in detail in the “Programming Manual for -B Instruments”. (Note: this manual also includes some commands that are not implemented in this instrument. - Page 33 :SOURce INTernal | EXTernal | MANual | HOLD | IMMediate *CLS [no query form] *ESE <numeric value> *ESR? [query only] *IDN? [query only] *OPC *SAV 0 | 1 | 2 | 3 [no query form] *RCL 0 | 1 | 2 | 3 [no query form] *RST [no query form]...
-
Page 34: Mechanical Information
There are no user-adjustable internal circuits. For repairs other than fuse replacement, please contact Avtech (info@avtechpulse.com) to arrange for the instrument to be returned to the factory for repair. Service is to be performed solely by qualified service personnel. -
Page 35: Maintenance
MAINTENANCE REGULAR MAINTENANCE This instrument does not require any regular maintenance. On occasion, one or more of the four rear-panel fuses may require replacement. All fuses can be accessed from the rear panel. See the “FUSES” section for details. CLEANING If desired, the interior of the instrument may be cleaned using compressed air to dislodge any accumulated dust. -
Page 36: Wiring Diagrams
WIRING DIAGRAMS WIRING OF AC POWER Mains circuits - hazardous live. Do no t attem pt a ny rep airs on this i nstr ume nt beyon d the fuse repla cement p ro cedures de scrib ed i n the manual. C ontact A v tech if the i nstr ument A3 - B LA CK r equi res serv icing. -
Page 37: Pcb 158Q - Low Voltage Power Supply, 1/3
PCB 158Q - LOW VOLTAGE POWER SUPPLY, 1/3 X1 3 6 -3 2 1 /4 " SS SC REW , 0 6 0 4 M PP 1 8 8 6 -3 2 SS EXT TO OTH W ASH ER, 0 6 W E1 8 8 X1 4 6 -3 2 1 /4 "... -
Page 38: Pcb 158Q - Low Voltage Power Supply, 2/3
PCB 158Q - LOW VOLTAGE POWER SUPPLY, 2/3 FU SEHO LD ER X2 1 PC B1 5 8 AL, V3 B RA CK ET 6 4 0 4 4 5 -6 TES T-LO OP TES T-LO OP X2 2 S1 A S1 B , OR DC S2 A , OR DC BU +... -
Page 39: Pcb 158Q - Low Voltage Power Supply, 3/3
PCB 158Q - LOW VOLTAGE POWER SUPPLY, 3/3 R2 1 1 . 5 K OY CA PB AN K R2 6 1 5 K C2 3 1 0 0 0 u F/3 5 V HV W AR NING R1 7 EX T SH OR TS OU T B AS E W HE N CH AR GING. -
Page 40: Pcb 168 - High Voltage Dc Power Supply
PCB 168 - HIGH VOLTAGE DC POWER SUPPLY 1 N 4 9 3 7 1 N 4 9 3 7 H V W A R N I N G H V W A R N I N G 6 4 0 4 4 5 - 2 6 4 0 4 4 5 - 2 1 N 4 9 3 7 1 N 4 9 3 7... -
Page 41: Pcb 235B - High Voltage Dc Power Supply
PCB 235B - HIGH VOLTAGE DC POWER SUPPLY... -
Page 42: Pcb 282A - High Voltage Dc Power Supply
PCB 282A - HIGH VOLTAGE DC POWER SUPPLY... -
Page 43: Pcb 244A - Octal Relay Driver Board
PCB 244A - OCTAL RELAY DRIVER BOARD... -
Page 44: Pcb 151C - Range / Polarity Relay Board
PCB 151C - RANGE / POLARITY RELAY BOARD U1 C U2 D U1 A 3 0 0 U1 B 4 7 0 U1 D U2 C 7 4 F0 0 2 2 0p F Q1 B 7 4 ACT08 7 4 F0 0 MPQ 60 0 2 7 4 F0 0 7 4 F0 0... -
Page 45: Pcb 104F - Keypad / Display Board, 1/3
PCB 104F - KEYPAD / DISPLAY BOARD, 1/3 Amp 5 4 9 9 9 1 0 -1 , 1 0 p in strai g h t h ead er LC D-BU TT LC D-BU TT. SCH SD A SD A SC L SC L GN D... -
Page 46: Pcb 104F - Keypad / Display Board, 2/3
PCB 104F - KEYPAD / DISPLAY BOARD, 2/3 U4 A VC C C1 0 VC C BU T1 VC C 2 . 2 u F C1 5 C1 3 0 . 1 u F 0 . 1 u F 0 . 1 u F 0 . -
Page 47: Pcb 104F - Keypad / Display Board, 3/3
PCB 104F - KEYPAD / DISPLAY BOARD, 3/3 VC C VC C 0 . 1 u F 2 . 2 u F GN D VC C VC C VC C SD A SD A SC L SC L GN D PA D3 PA D4 PC F8 5 7 4 AN (MU ST HA VE "A"... -
Page 48: Main Wiring, Standard Models
AV R-E3 A, A VO-9 H1: C7 = 330 pF CE R (2 00 kHz ) BD 1 PC B1 0 4 E K EY PAD PO L N/ C OU T CO NN 5 (AVR-E3/E3A, AVO-9G/9H/9H1) -B-P, -PN Pri nte d Re vis i on 6-Apr-2015 Z:\mjcfiles\circuits\avr-N\avr-n.Ddb - AVR-E3-B-P\WIRING V7.sc h... -
Page 49: Main Wiring, -W1 Models
OS (-P N-OS ON LY ) N/ C CO NN 6 GN D OU T AVR-E3-B-W 1, AVO-9G-B-W 1, AVO-9H-B-W 1 Pri nte d Re vis i on 6-Oct-2015 4 0 1 -2 3 0 8 (2 4 V ) -
Page 50: Main Wiring, -W2 Models
CH AN GE S RE QU IR ED ON 255 B2 1. I NS TALL C 9 = 33 00 pF (20 kH z ) BD 1 PC B1 0 4 E K EY PAD AVR-E3-B-P-W2 Pri nte d Re vis i on 1-Apr-2016 Z:\mjcfiles\circuits\avr-N\avr-n.Ddb - AVR-E3-B-P-W2\E3-B-P-W2 WIRING V1.SCH... -
Page 51: Power Supply, -W2 And -W3 Models
ZE RO R1 1 = NOT US ED R3 = NOT US ED U1 = M1 0-S 150/ A /Y AVR-E3-B, -W 1/-W 2/-W 3 HV PS Pri nte d Re vis i on 1-Apr-2016 Z:\mjcfiles\circuits\avr-N\avr-n.Ddb - AVR-E3-B-P-W3\E3-B-P-W3 PS V2.SCH... -
Page 52: Main Wiring, -W3 Models (2 Of
PG-EA C OA X = 3 6" +1 5 V +1 5 V -1 5 V -1 5 V OU T AVR-E3-B-P-W 3 GN D Pri nte d Re vis i on 6-Apr-2015 -EA-IT TO U V Z:\mjcfiles\circuits\avr-N\avr-n.Ddb - AVR-E3-B-P-W3\E3-B-P-W3 WIRING V1.SCH... -
Page 53: Main Wiring, Avr-E3-B-Pn-W1-Ot13-Att-Ak2-Ac02
AVR-E3-B-PN-W1-OT13-ATT-AK2-AC02 N. O . N. O . Pri nte d Re visi on 28-Apr-2016 4 0 1 -2 2 0 8 (12 V ) 4 0 1 -2 20 8 (1 2 V ) Z:\mjcfiles\circuits\avr-N\avr-n.Ddb - AVR-E3-B-PN-W1-OT13-AT T\E3-W1-OT13-AT T V1.sch... -
Page 54: Performance Checksheet
PERFORMANCE CHECKSHEET...
