Manual

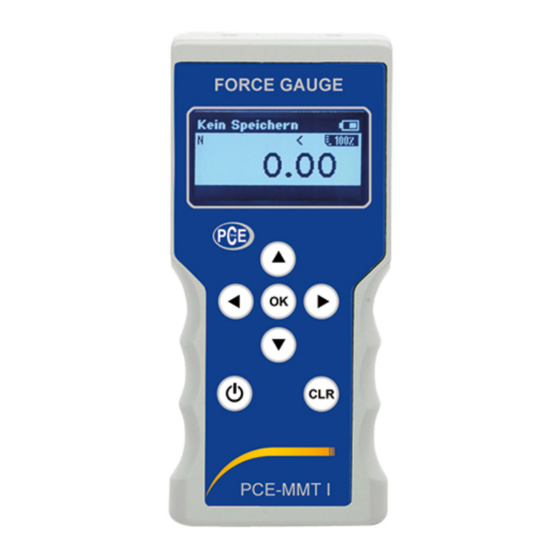

Tensile and Compressive Force Meter PCE-MMT E
Version 1.0
Date of creation: 09.03.2016
Date of last change: 08.12.2016
Advertisement
Table of Contents
Related Manuals for PCE Instruments PCE-MMT E
Summary of Contents for PCE Instruments PCE-MMT E
- Page 1 From outside UK: +44 Tel: (561) 320-9162 Tel: (0) 2380 98703 0 Fax: (561) 320-9176 Fax: (0) 2380 98703 9 info@pce-americas.com info@pce-instruments.com www.pce-instruments.com/english www.pce-instruments.com Manual Tensile and Compressive Force Meter PCE-MMT E Version 1.0 Date of creation: 09.03.2016 Date of last change: 08.12.2016...
-
Page 2: Table Of Contents
10.3 USB charger ..........................17 11 Incremental encoder (optional) ....................... 17 12 Error messages ..........................17 13 Reset function ........................... 17 14 Menu overview ..........................17 15 Disposal ............................. 18 16 Contact ............................... 19 16.1 PCE Instruments UK ........................ 19... -
Page 3: Introduction
PCE Americas .......................... 19 Introduction Thank you for purchasing a Tensile and Compressive Force Meter PCE-MMT E from PCE Instruments. This manual is published by PCE Instruments without any warranty. Our equipment complies with all the relevant safety regulations and carries the CE symbol. The CE Declaration of Conformity can be found as an attachment. -
Page 4: Delivery
Manual Delivery 1 X PCE-MMT E tensile and compressive force meter 1 X carrying case 1 X factory calibration certificate 1 X CE certificate 1 X 2 GD SD memory card 1 X USB power adapter 1 X USB cable... - Page 5 Manual retained, please, press the CLR button. The reading of the TED data will be cancelled. Mode „measure with peak value“ : delete peak Upper and lower peak value will be deleted. values Undeleted peak values remain obtained and will be displayed again when the peak mode is activated again.
-
Page 6: Operating System
Manual Operating system The hand dynamometer has its own processor and operates with a real time operating system of the latest generation. This system processes the raw data of the measurements and indicates them accordingly. In case of a switched memory functions MS Excel-compatible CSV files can be stored in the integrated data logger. - Page 7 Manual - Peak value up / down - Save the curve With you can switch between the displayed menu items and select the desired menu item with the help of Turn off the storage ("no saving") When this button is pressed, no measurement values are stored. Storing the upper and lower peak values ("peak value up / down") If you press here, the memory function of the peak values is activated.
-
Page 8: Limit Values
Manual 5.2.1.4 Display of the stored files (“Browse”) By pressing a new window is opened. In this window, the curves and peak value files stored on the meter are displayed in a tabular form. That name is presented which the file shows. To navigate is possible with the help of By pressing on one of the selected files you get a possibility to see the file information, such as time... -
Page 9: Display
Manual Example: -> upper limit -> set point = -200 N Sign = absolute value In both cases, when + 200 N as well as -200 N is exceeded the upper limit is active. -> upper limit -> set point = -200 N Sign = to be signed Only when -200 N is exceeded, the upper limit is active. - Page 10 Manual the help of "Reading Sensor" By pressing a new window is opened, which contains the physical information of the cell (for example, the measuring range). Navigate here with the help of "Reading Calibration" By pressing a new window is opened, which contains the calibration information of the measuring cell.
-
Page 11: Calibration No. (Selection Of A Characteristic)
Manual 5.2.5 Calibration No. (Selection of a characteristic) The manual selection of a characteristic is only necessary if you have no TEDs measuring cells available and use several sensors without TEDs. Connect the desired cell with the instrument and select the required curve with the help of Confirm the selection by pressing Pressing brings you back to the measurement mode. -
Page 12: Settings
Manual 5.2.6.4 In this menu the type of data transmission is selected. The choices are: Mass storage (default setting) PCE-MMT I as a mass storage Contin. PCE-MMT I transmits continuously Press to select the desired transmission type. Confirm the selection with Settings “Auto-0-”... -
Page 13: Digital Filter
Manual 5.3.3 Digital filter The following setting options are available: (no filter; factory default setting) (the smallest filter level) (middle filter level) (the highest filter level) With you can select the desired filter. Confirm the selection with Technical note to the filter function: FIR (Finite Impulse Response) are feedback-free, phase linear digital filters with finite impulse response the filtered values y (n) of which are calculated from a certain, just distant past of the input signal x. -
Page 14: Curve
Manual Curve This function allows the storage of the measurement values in a file. The duration of recording is adjustable and is limited by the size of measuring frequency (see chapter 3.2.2). Selected measuring frequency (Hz) Max. recording time (s) 2000 1000 Pressing... -
Page 15: Transmission Of Measurement Data To An Existing Terminal Program
Manual meter on, activate the mode Data Streaming and connect the meter to a free USB slot. The Windows Hardware Wizard will appear. Follow the instructions for the automatic installation. (A detailed driver installation manual is on the CD) If the driver is installed, two options open for you: Transmission of the measurement data to the optionally available data acquisition software: To use the software,... -
Page 16: Calibration
Manual Note: How the data is transferred depends on the measuring frequency set on the device. With the set measuring frequency of 100 Hz, the data is transferred directly and continuously from the start of the measurement. If the measured frequency is above 100 Hz, the measurement data is first cached in the meter due to a limitation of the USB interface and then transferred at the end of the measurement. -
Page 17: Usb Charger
Manual The installation of a power management device, for example, a wedged clamping device on the power line thread leads to a preloading and thus to a deviant voltage signal at the analog output. Option: output cable or mating connector for a socket Out 1 –... -
Page 18: Disposal
Manual 1. Level 2. Level 3. Level 4. Level User 11 Memory 1112 Function 1111 No saving 1112 Peak values +/- 1113 Save the curve 112 Quantity 1121 Value Input Peak values 113 Time Curve 1131 Value Input 114 Delete 1141 Delete Peak value 1142 Delete Curve 1143 Delete All... -
Page 19: Contact
In order to comply with the EU directive 2012/19/EU we take our devices back. We either re-use them or give them to a recycling company which disposes of the devices in line with law. If you have any questions, please contact PCE Instruments. 16 Contact If you have any questions about our range of products or measuring instruments please contact PCE Instruments.
