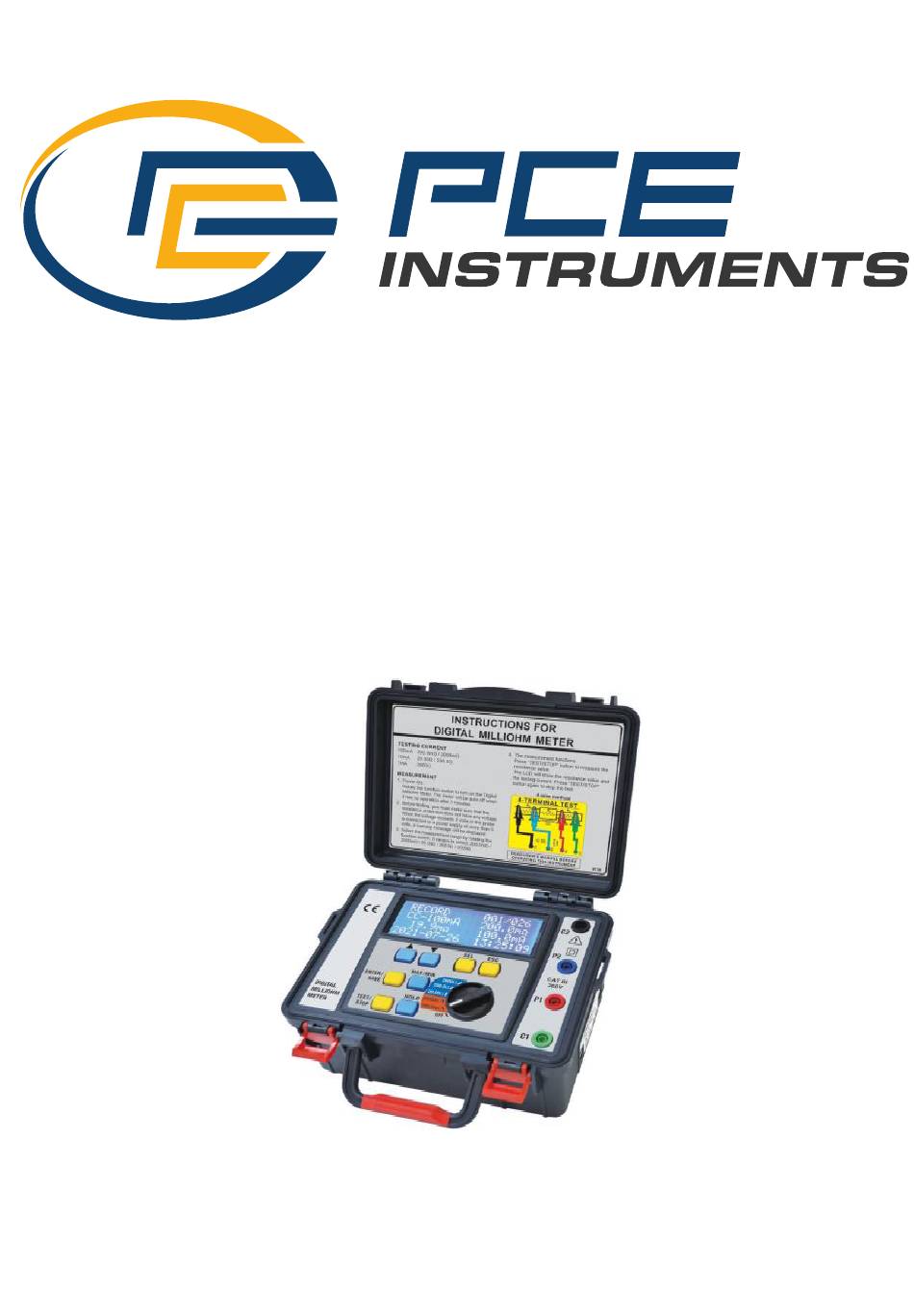

- Page 1 DIGITAL MILLIOHM METER INSTRUCTION MANUAL...
-
Page 2: Table Of Contents
INDEX PAGE 1. INTRODUCTION......2. SAFETY NOTES......3. FEATURES........4. SPECIFICATIONS......5. GENERAL........6. INSTRUMENT LAYOUT....7. MEASUREMENT......8-12 8. MAINTENANCE......9. FUSE REPLACEMENT.... -
Page 3: Introduction
1. INTRODUCTION NOTE This meter has been designed and tested According to CE Safety Requirements for Electronic Measuring Apparatus, IEC / EN 61010-1 and other safety standards. Follow all warnings to ensure safe operation. WARNING READ "SAFETY NOTES" (NEXT PAGE) BEFORE USING THE METER. -
Page 4: Safety Notes
2. SAFETY NOTES ● Read the following safety information carefully Before attempting to operate or service the meter. ● Use the meter only as specified in this manual. Otherwise, the protection provided by the meter may be impaired. ● Rated environmental conditions : (1) Indoor Use. -
Page 5: Features
3. FEATURES ● Protection class: IP65 (Lid closed) ● 4-Wire method for mΩ measurement. ● Measures down to 100µΩ (0.1mΩ). ● Maximum resolution of 100µΩ. ● 4 Lines × 20 Characters large LCD. ● 200 measurement results can be saved in the memory and recalled on the display. -
Page 6: Specifications
4. SPECIFICATIONS 0~200.0mΩ in steps of 100uΩ 0~2000mΩ in steps of 1mΩ Measuring ranges 0~20.00Ω in steps of 10mΩ (mΩ) 0~200.0Ω in steps of 100mΩ 0~2000Ω in steps of 1Ω ±0.8% of reading ±4 digits over the operating temperature range, Accuracy 0°C ~ 40°C, with the supplied test leads... -
Page 7: General
5. GENERAL ● Protection fuse: 200mA/600V × 1 ● Low Battery Indication : " LoBAT " message appears on the right lower part of the display when the battery voltage drops below accurate operating level. ● Accessories : Instruction manual Test leads Shoulder belt Batteries... -
Page 8: Instrument Layout
6. INSTRUMENT LAYOUT ① ③ ④ ⑪ ⑫ ② CAT III ⑥ 300V MAX/ ⑬ 2000 ENTER Ω 20.00Ω 200.0Ω DIGITAL SAVE HOLD TEST/ 2000mΩ MILLIOH ⑭ 200.0mΩ METER ⑦ ⑧ ⑨ ⑩ ⑤ ● Test Leads... - Page 9 ① LCD: 4 Lines × 20 Characters large LCD ② ▲ Button ③ ▼ Button ④ SEL Button For 3 different functions: ⑴ Date / Time ADJ ⑵ Record display ⑶ Record clear ⑤ ESC Button ⑥ ENTER / SAVE Button ⑦...
-
Page 10: Measurement
7. MEASUREMENT 1.Power On : Rotate the function switch to keep it from staying in the "OFF" position. The system will be auto off when it has no operation after 3 minutes. 2.Before testing, you must make sure that the resistance under test does not have any voltage. - Page 11 3.Select scale range : There are 5 scale range "200.0mΩ", "2000mΩ", "20.00Ω" , "200.0Ω" and "2000Ω" could be selected by rotating the function switch. 2000Ω scale uses the 1mA to test. 200.0Ω & 20.00Ω scales use the 10mA to test. 2000mΩ...
- Page 12 5.Record saving function When the measurement is finished, press "SAVE/ ENTER" button to save the result of measurement. At the same time, the last line will display the number of record. The memory can record up to 200 records. 6.Minor function Press "ESC/SEL"...
- Page 13 ● Date / Time ADJ Press "ESC/SEL" button to leave the Date/Time ADJ. Press "UP" or "DOWN" button to set the correct number. Press "TEST/STOP" button to switch to the next unit of date or time, and go on the required adjustment.
- Page 14 ● RECORD DISPLAY Press "UP" or "DOWN" button to reach the record that you want to look up. Press "ESC/SEL" button to return back to the minor function menu. ● RECORD CLEAR Press "SAVE/ENTER" button to clear all records in the memory. Press "ESC/SEL"...
-
Page 15: Maintenance
8. MAINTENANCE Battery replacement : When " LoBAT " message appears on the right lower part of the display, change new batteries as follows : (1) Disconnect the test leads from the instrument and turn off the power. (2) Unscrew the battery cover and replace with new batteries(1.5V "C"... -
Page 16: Fuse Replacement
9. FUSE REPLACEMENT Open the meter case, replace with a new fuse which has the same specification 200mA/600V, 5×20mm. Fuse 200mA / 600V (5 × 20 mm) Due to our policy of constant improvement and development, we reserve the right to change specifications without notice. -14-... - Page 17 For countries outside the EU, batteries and devices should be disposed of in accordance with your local waste regulations. If you have any questions, please contact PCE Instruments. PCE Instruments...
- Page 18 PCE Instruments contact information Germany France Spain PCE Deutschland GmbH PCE Instruments France EURL PCE Ibérica S.L. Im Langel 26 23, rue de Strasbourg Calle Mayor, 53 D-59872 Meschede 67250 Soultz-Sous-Forets 02500 Tobarra (Albacete) Deutschland France España Tel.: +49 (0) 2903 976 99 0 Téléphone: +33 (0) 972 3537 17...
