  • Page 1 User Manual ThermoPro...

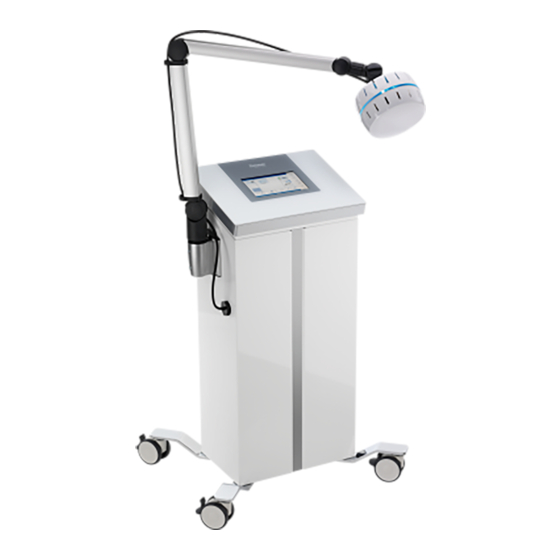

  • Page 2 Illustrations Side view of the Device Fig. 1 Device and 1 Mounting bracket with caster including locking device Operating 2 Connection for supporting arm Elements 3 Applicator cable connection 4 Supporting arm including applicator cable (4.1) and applicator (4.2) 5 Cable clip 6 Display 7 Slot for SD card...
  • Page 3 Illustrations Rear view of the Device Fig. 2 Device and Mains cable socket Operating Power switch Elements Recessed grip Identification plate Ventilation openings...
  • Page 4 Illustrations Screens / Displays Fig. 3 Displays/ 14 Status bar Therapy screen 15 Title bar 16 Buttons on screen 17 Navigation bar Fig. 4 Navigation Bar (A) Home Returns to the Start page Description of functions (B) Back Takes you one step back (C) Memory Switches to the Memory area (D) Body Area...
  • Page 5 Contents In the User Manual this symbol indicates “Danger”. In the User Manual this symbol indicates Caution "Caution" with regard to possible damage of the device. Operating instruction Follow the User Manual. Serial number Article number Manufacturer Date of manufacture Applied part type BF The unit emits non-ionizing electromagnetic radiation.

  • Page 6: Table Of Contents

    Explanation of symbols Page Indications / Contraindications Side effects Application Information Cautions and Precautions Warning Notices ThermoPro – in brief Assembling the Device Settings Operation Instructions 8.1 Performing Treatment 8.2 Display and Buttons 8.3 Body area 8.4 Favorites and Memory Lists –...
  • Page 7 Error Messages / Troubleshooting / Disposal EMC Manufacturer’s Declaration Valid for the ThermoPro device. This manual is an integral part of the device. It should be kept with the device so that the persons assigned to operate the device can access it at any time.

  • Page 8: Indications / Contraindications

    Indications / Contraindications Indications Indications for use in applying therapeutic deep heat in body tissues for the treatment of selected medical conditions such as disorders of the musculoskeletal system, muscle spasm, joint stiffness, contractures, and chronic inflammatory or infective conditions such as tenosynovitis, bursitis, synovitis and chronic inflammatory pelvic diseases.
  • Page 9 Indications / Contraindications • has metal foreign body in the tissue (implants, pacemaker) • has significant fluid retention in the body (for example, pleural effusion, ascites) • is unconscious or not fully responsive • is a baby or infant • has damp clothes or wet dressings Do not apply shortwave diathermy if there are open wounds, hemorrhage, ischemic tissue, tuberculous joints, or •...

  • Page 10: Side Effects

    Side Effects Side effects Treatment with the ThermoPro can occasionally cause temporary local reddening of the skin. Page 3...

  • Page 11: Application Information

    Caution X-ray or other diathermy equipment) can interfere with the operation of the device. Please maintain a safe distance of several meters. ThermoPro is not suitable for use in areas having an explosive, flammable or Caution combustive environment. During use, the device should be positioned to allow more direct access to the...
  • Page 12 Application Information Cautions and Precautions When cleaning the device, never submerge in water or other liquids Precaution Inspect and cleanse the skin prior to application. Following treatment, check the Precaution skin for evidence of irritation or burns, and if present, treat as appropriate. If the patient has, or complains of, skin irritation following treatment, shorten the treatment time on the next treatment session or use an alternative type of therapy or drum inductive applicator placement...

  • Page 13: Warning Notices

    The radiation issuing from the applicator should not be directed onto electronic devices in the immediate vicinity or onto the ThermoPro itself. The devices can be impaired or permanently damaged. The function of other appliances connected to the patient may be affected by the operation of shortwave therapy equipment.
  • Page 14 Warning Notices Use in wet areas is not permitted: non-compliance may lead to considerable damage and endanger both the patient and the operator. Patients should not come into contact with conductive parts that are earthed or have a high capacitance to earth and may represent unwanted pathways for high-frequency current.
  • Page 15 Warning Notices Non-ionizing radiation is generated in the device! Internal burns can occur with the incorrect application of shortwave diathermy due to excessive intensity or excessive exposure time! Do not apply shortwave diathermy over the carotid sinus nerves, (located in the anterior neck triangle), including, stellate ganglion, vagus nerve, or laryngeal or pharyngeal muscle! Particular care should be taken for patients...
  • Page 16 Warning Notices All equipment and accessories should be kept out of the reach of children or unqualified persons! Caution should be used when applying thermal shortwave over areas of body which lack normal sensation. Absent or diminished sensation should be avoided or, if unavoidable, treated with caution.

  • Page 17: Thermopro - In Brief

    Intended Use ThermoPro is a shortwave diathermy device for use in applying therapeutic deep heat for selected medical conditions by applying electromagnetic energy in the radio frequency band of 27.12 MHz and that is intended to...

  • Page 18: Assembling The Device

    Assembling the Device Note: Make sure that the power switch on the device is set to "0". Assembling Install the 4 mounting brackets including castors (1) on the bottom of the unit. mounting bracket Assembling Slide the supporting arm (4) into the connection for the supporting arm (2). supporting arm Assembling Bolt the applicator cable (4.1) to the cable connection of the applicator cable...

  • Page 19: Settings

    Settings Note: Changes to the basic settings can only be made in the start-up screen. Start-up screen After switching on the device and performing the self-test, the start-up screen opens. Note: Activating the "Start" (2) button will immediately switch to the application screen.
  • Page 20 Settings (1) Start Settings 1. Start menu: Individual selection options for start settings. 2. Start screen: Choice of two start screens. The selection is made in the corresponding row. (2) Language Select the language. The selection is made in the corresponding row. (3) Audio/graphics 1.

  • Page 21: Operation Instructions

    Operation Instructions 8.1 Performing Treatment Note: All buttons, menus and sub-menus can be activated directly on the screen by touching with your finger. Start program Touching the “Start” button in the start-up screen opens the application screen. Positioning of the Position the patient on a therapy table or a chair.

  • Page 22: Display And Buttons

    Operating Instructions 8.2 Display and Buttons Description of the display elements and buttons (1) / (2) Pressing the arrow key (1) increases the power. Arrow keys Pressing the arrow key (2) reduces the power. Power 0 – 10 W in increments of 5. 10 –...
  • Page 23 Operating Instructions 8.2 Display and Buttons (4) Mode Displays the selected operating mode. When the window is activated, the parameter window for selecting continuous and pulsed operating modes opens. Selecting the desired mode of operation is performed in the corresponding field.
  • Page 24 Operating Instructions 8.2 Display and Buttons (6) Time Displays the therapy time. Can be adjusted from 0 - 30 minutes. The treatment time is reduced by one-second intervals. (7)/(8) Touching the arrow key (7) increases the time in 1-minute increments. Time arrow keys Touching the arrow key (8) reduces the time in 1-minute increments.

  • Page 25: Body Area

    Operating Instructions 8.3 Body area Body area menu Pressing the Body area button opens the "Body area" menu. Selecting area The body area can be selected by pressing the blue circle. Therapy screen After selecting a body area the therapy screen opens: The output power is always set to 0.

  • Page 26: Favorites And Memory Lists - Selecting Programs, Editing Lists

    Operating Instructions 8.4 Favorites and Memory lists – Selecting Programs, Editing Lists The parameters of the pre-defined programs can be individually modified and saved. Saving and naming Activating the "Save" button opens the field for entering the program name. programs Enter the program name via the keyboard.
  • Page 27 Operating Instructions 8.4 Favorites and Memory lists – Selecting Programs, Editing Lists Individually stored programs are listed in the favourites list. These can be 1. retrieved for therapy, 2. edited (moved position and deleted). Note: The steps to retrieve and edit the favorites/memory list are identical; so only the steps for retrieving and editing the favourites list are described.
  • Page 28 Operating Instructions 8.4 Favorites and Memory lists – Selecting Programs, Editing Lists Editing favourites Activating the button (1) returns you to the program. Activating the button (2) moves the program to the top. Activating the button (3) moves the program down. Activating the button (4) deletes the program.

  • Page 29: Technical Information

    Technical Information Power supply 100 – 240 VAC, 50/60 Hz 220 VAC, 60 Hz Power input Max. 700 W Mains fuse Circuit breaker in the mains switch Protection class Applied part Type BF The front side of the applicator is defined as applied part. Applicator Coil field method Output frequency...

  • Page 30: Cleaning Disinfection

    Cleaning Disinfection - Before starting any maintenance and cleaning measures the device must always be turned off at the main switch and unplugged. - Make sure that when cleaning and disinfecting the labels of the device (such as warnings, labels of control devices, identification plate) are not damaged. - Make sure that during cleaning and disinfection no liquids penetrate the device.

  • Page 31: Ce-Mark

    CE-mark The product bears the CE-mark According to the EC directive 93/42/EEC on medical devices. Page 24...

  • Page 32: Scope Of Delivery Accessories

    Scope of Delivery Accessories Scope of Delivery ThermoPro base unit Applicator including applicator cable Supporting arm Mounting bracket with castors incl. locking device Cable clip Power cable User manual Assembly instructions Accessories Art.Nr. 95523110 Applicator including applicator cable 91525010 Supporting arm 93521010 Mounting bracket with castors incl.

  • Page 33: Device Combinations

    Device Combinations For ThermoPro no combination devices are provided by the manufacturer. Anyone who, contrary to these guidelines, combines devices and operates a medical system in this way does so at their own risk. Page 26...

  • Page 34: Safety And Maintenance

    Safety and Maintenance ThermoPro is manufactured according to the safety regulations of DIN EN 60601-1. This device has an expected service life of 10 years. As the device manufacturer, Zimmer MedizinSysteme can support the safety and reliability of this device through its service life if, the user shall perform a periodic maintenance at least every four weeks to •...

  • Page 35: Function Test

    Function Test ThermoPro performs a self-test after it is switched on, which checks all the internal components. An error message will appear when a fault occurs. An extended function test as described below can also be performed. This test should be performed monthly or if there are any doubts about the functionality of the device.

  • Page 36: Error Messages Troubleshooting Disposal

    Error Messages Troubleshooting Disposal Device malfunction No response to power switch/display remains dark Possible cause Network Switch Troubleshooting Check that the power cord is properly plugged into the power outlet and the plug is firmly inserted into the socket of the device. Check the power cord for damage.
  • Page 37 Disposal The device must be returned to the factory in its original packaging. It must be disposed of only by Zimmer MedizinSysteme. In foreign (European) countries, please refer to the national regulations for disposal. Contact your distributor, if necessary.

  • Page 38: Emc Manufacturer's Declaration

    Portable and mobile high-frequency communications equipment (e.g. mobile phones, cell phones) can affect medical electrical equipment. ThermoPro may only be operated with the original power cable indicated in the list delivered with the appliance. Operating the device with a different power cable can result in increased emissions or decreased interference resistance of the device! Guidance and manufacturer's declaration –...
  • Page 39 Guidance and manufacturer’s declaration – Electromagnetic immunity The ThermoPro device is suitable for use in the specified electromagnetic environment. The purchaser or user of the ThermoPro device should assure that it is used in an electromagnetic environment as described below:...
  • Page 40 EMC Manufacturer's Declaration Key features of the ThermoPro are: emission of RF energy and trouble-free operation of all functions. Continuous operation is not required for the intended application. Guidance and manufacturer’s declaration – Electromagnetic immunity The Thermo device is intended for use in the electromagnetic environment specified below. The customer or the user of the...
  • Page 41 Recommended separation distances between portable and mobile RF communications equipment and the Thermo device The ThermoPro device is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the ThermoPro device can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitter) and the ThermoPro device as recommended below, according to the maximum output power of the communications equipment.
