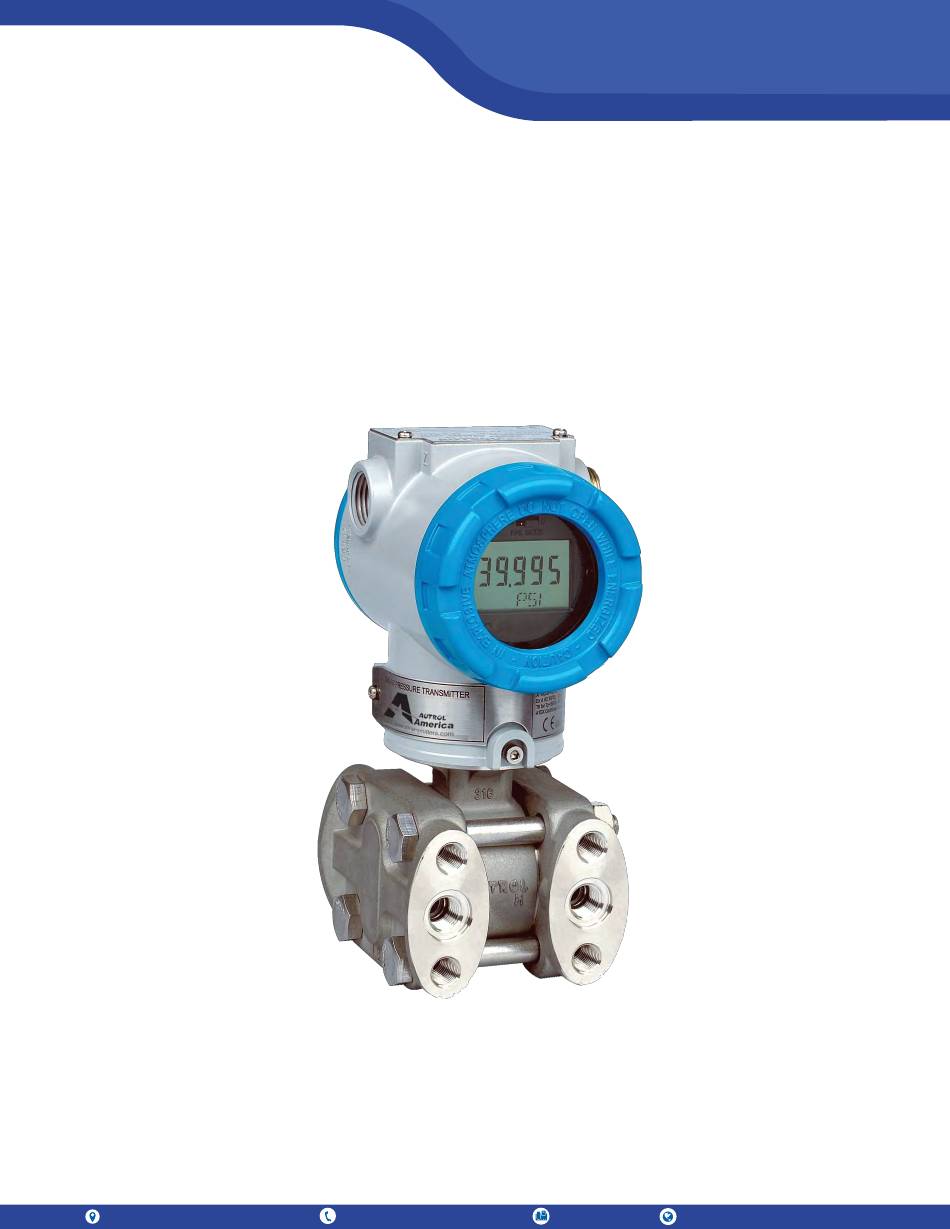

- Page 1 Quick Start Guide APT 3100 Series Smart Pressure Transmitter 796 Tek Drive, Crystal Lake, IL 60014 USA www.autroltransmitter.com +1 847-857-6062 | +1 847-779-5000 +1 847-655-6062...
-
Page 2: Before You Begin
Quick Start Guide Quick Start Guide 1. Before You Begin • Before installation check the model, speci cations, and installation location for the transmitter. Install using proper engineering practice. • Mount transmitter securely and stabilize any impulse piping. • Follow the published pressure and temperature limits for ordered transmitter and options. •... -
Page 3: Exploded View
4. Exploded View APT 3100 APT 3100 MP O-Ring Sensor Module Process O-ring Standard Flange Flange Bolt Flange Plug Drain/Vent Valve Flange Adapter APT 3200 Nameplate Span and Zero Adjustments Electronics Housing Terminal Board Terminal Block Main Board Digital Indicator Cover O-ring Cover Housing Rotation Set Screw... - Page 4 Quick Start Guide Quick Start Guide 5. Functional Block/Sensor Part Diagram APT 3100 4 to 20 mA Sensor Part MCU Part AD Conversion Microprocessor Input Sensor value Engineering Units EEPROM Re-range (Zero-span) Sensor Timing HART Zero Point Adjustment DA Trimming HART Protocol with Host Sensor Damping/Filtering...
-
Page 5: Lcd Screen
6. LCD Screen The 5 digit LCD screen shows: • Up to 5 digits of measured value • Error code • Units (Normal and Engineering) • Menu and Menu Option • Indication of being in Normal or Engineering mode • Indication of output being Linear or Square Root •... - Page 6 FAVE 7. Fail-Mode AUTROL® Smart Pressure Transmitters automatically perform real time self-diagnostic routines and display any error codes on the local LCD (M1 option if ordered) that can be used for troubleshooting. In addition to this, the self-diagnostic routines are also designed to drive transmitter current output outside of the normal saturation values in case a fault mode is detected.
- Page 7 Level 4-20 mA Saturation 4-20 mA Alarm ≤ 3.75 mA Low/Down 3.9 mA ≥ 21.75 mA High/Up 20.8 mA Jumper Status on LCD and DIP Switch (2) on CPU Model DIP Switch (2)setting on CPU Model Selected Fail Mode CPU Module LCD Module CPU Module Down...
-
Page 8: Connection Diagram
Quick Start Guide Quick Start Guide 8 . Power Supply Load Limitations 11.9-45 Volts DC is recommended for powering the transmitter. The external power supply ripple noise should not be higher than 2%. When calculating loop resistance please include resistance of all devices added in the loop. For intrinsic safety applications when using an Intrinsic Safety Barrier, please also in-clude the resistance of the barrier into the max loop... - Page 9 For Low Voltage Transmitters 1-5V Output Connection DC Power DC Power Input Power Supply Connection and Hang Jack Connection DC Power Minimum operating input of 9V (with no loading), recommended 12V (48V maximum). For 3100F (Pulse Out/ Flow Transmitters) Pulse Output DC Power Input Power Supply DC Power...
-
Page 10: Housing Rotation
Quick Start Guide Quick Start Guide 10 . Pulse Output Hook Up Pulse Speci cation • Scaled Pulse: A single pulse is output for a speci ed ow amount Relay or Impulse • Pulse Width: 10ms, 50ms, 100ms selectable Counter •... - Page 11 13 . Grounding Please provide for proper grounding (earth ground) at designated points (external or internal). 14 . Vent/Drain Plugs Optional with F1 or F2 Code Standard with Bleed 15 . Fully Functioning Push Buttons To access the magnetic push buttons loosen one of the screws holding down the nameplate on the top of the transmitter.
- Page 12 Quick Start Guide Quick Start Guide 16 . Re-Ranging and Applying External PV Press Zero (5 sec) • When display shows “–ZR–” re-lease the button • Apply PV corresponding to de-sired LRV (4mA) setting • Press Zero again. Display will show –Z or –ZE if error occurs. To adjust SPAN press SPAN button (5 sec) •...
- Page 13 19 . Fully Functioning Push Buttons For Version 7.x and Higher *Continued on next page APT 3100...
-
Page 14: Sub Menus
Quick Start Guide Quick Start Guide 20 . Sub Menus Numeric Entry Sub Menu Alpha - Numeric Entry Sub Menu 796 Tek Drive, Crystal Lake, IL 60014 USA www.autroltransmitter.com +1 847-857-6062 | +1 847-779-5000 +1 847-655-6062... - Page 15 Quick Start Guide 796 Tek Drive Crystal Lake, IL 60014 Tel: +1 847-857-6062, +1 847-779-5000 Fax: +1 847-655-6062 Email: info@autroltransmitters.com www.autroltransmitters.com APT 3100...
