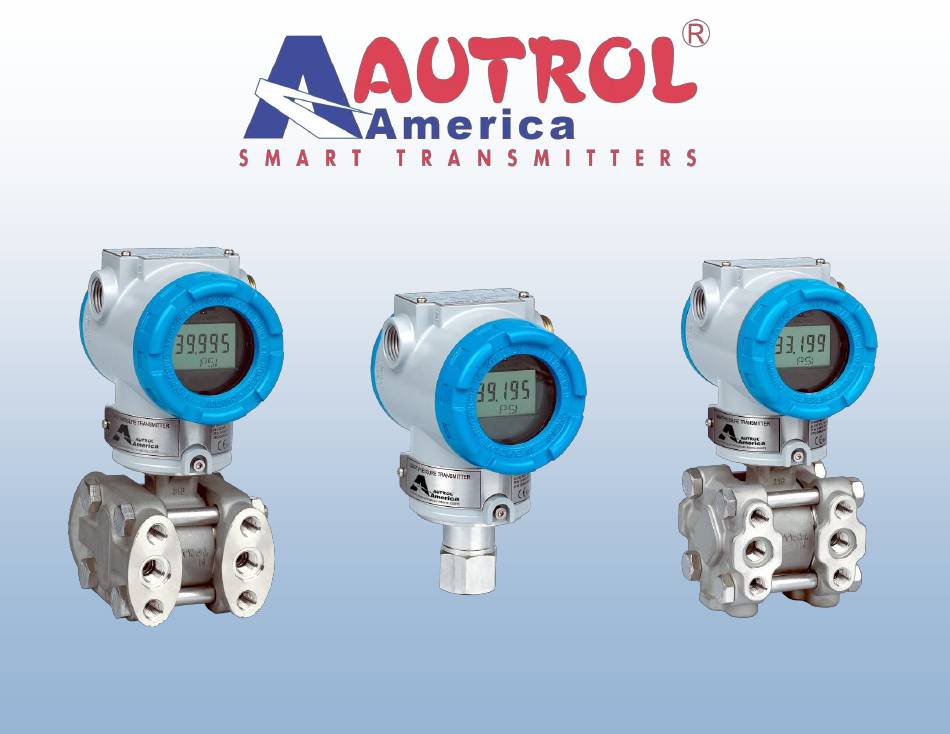

- Page 1 Start Guide APT 3000 Series © Autrol Corporation of America...
- Page 2 Additional instructional videos outlining programming and configuration functionalities can also be found on www.autroltransmitters.com. First time users are encouraged to make use of these support resources made available at no cost online. For additional technical support or advanced troubleshooting please contact your nearest Autrol office or call 1-847-779-5000.
-
Page 3: Getting Started
Getting Started Before installation check the model, specifications, and installation location for the transmitter. Install using proper engineering practice. Mount transmitter securely and stabilize any impulse piping. Follow the published pressure and temperature limits for ordered transmitter and options. ... - Page 4 Functional Block/Sensor Part Diagram APT 3100 APT 3200...
- Page 5 APT 3100 Dimensional Drawing APT 3100 Exploded View...
- Page 6 APT 3100 MP Dimensional Drawing APT 3100 MP Exploded View...
- Page 7 APT 3200 Dimensional Drawing APT 3200 Exploded View...
-
Page 8: Lcd Screen
LCD Screen LCD Screen Rotation Unscrewing the two screws on either side of the LCD The 5 digit LCD screen shows: The 5 digit LCD screen shows: screen allows for the screen to be rotated 90° clock- Up to 5 digits of measured value Up to 5 digits of measured value wise or counterclockwise. - Page 9 LCD Screen Display Error Codes...
- Page 10 Fail-Mode Fail Mode Selection Jumper *For Blind units using DIP AUTROL® Smart Pressure Transmitters automatically perform real time self-diagnostic routines and Switch on LCD Module switch on MCU board . display any error codes on the local LCD (M1 option if ordered) that can be used for troubleshooting.
- Page 11 Power Supply Load Limitations 11.9-45 Volts DC is recommended for powering the transmitter. The external power supply ripple noise should not be higher than 2%. When calculating loop resistance please include resistance of all devices added in the loop. For intrinsic safety applications when using an Intrinsic Safety Barrier, please also in- clude the resistance of the barrier into the max loop resistance calculations.
-
Page 12: Connection Diagram
Connection Diagram Connection Diagram of Signal, Power and HTT for Standard Model Transmitters For Low Voltage Transmitters 1-5V Output Connection DC Power Input Power Supply Connection 1. HHT (HART Communicator) or PC Configurator may be connected at and Hang Jack Connection any terminal point in the signal loop 2. - Page 13 Connection Diagram Pulse Output Hook Up For 3100F (Pulse Out/ Flow Transmitters) Pulse Output Pulse Specification Relay or Impulse Scaled Pulse: A single pulse is output for a Counter specified flow amount Pulse Width: 10ms, 50ms, 100ms se- lectable DC Power Duty Cycle: 49 Pulse/Second maximum...
-
Page 14: Housing Rotation
Housing Rotation Lock Front/Rear Covers Unscrewing the housing rotation screws in the front Allen Screw provided on each side of Front and Rear Cover allows for locking the and back of the transmitter allow the housing to be covers for tamper proofing. rotated 90°... - Page 15 Grounding Vent/Drain Plugs Please provide for proper grounding (earth ground) at designated points (external or internal). Please provide for proper grounding (earth ground) at designated points (external or internal). Optional with F1 or F2 Code Standard with Bleed...
- Page 16 Re-Ranging and Applying External PV Fully Functioning Push Buttons To access the magnetic push buttons loosen one of the screws holding down the nameplate on the top of To access the magnetic push buttons loosen one of the screws holding down the nameplate on the top of ...
- Page 17 Local Push Button Menu (Ver7.x and Higher) Local Push Button Menu (Ver7.x and Higher) Menu Tree for Version 6.x and Lower Menu Functions of the push buttons are controlled by the firmware version of the transmitter. Please check the specific firmware version listed on the neck tag of the transmitter (under LCD screen), as this may limit the available features.
- Page 18 Fully Functioning Push Buttons Fully Functioning Push Buttons *Continued on next page Version 7.x and Higher...
- Page 19 *Continued on next page Version 7.x and Higher...
- Page 20 *Continued on next page Version 7.x and Higher...
- Page 21 Version 7.x and Higher...
- Page 22 Sub Menus Numeric Entry Sub Menu Alpha - Numeric Entry Sub Menu Version 7.x and Higher...
