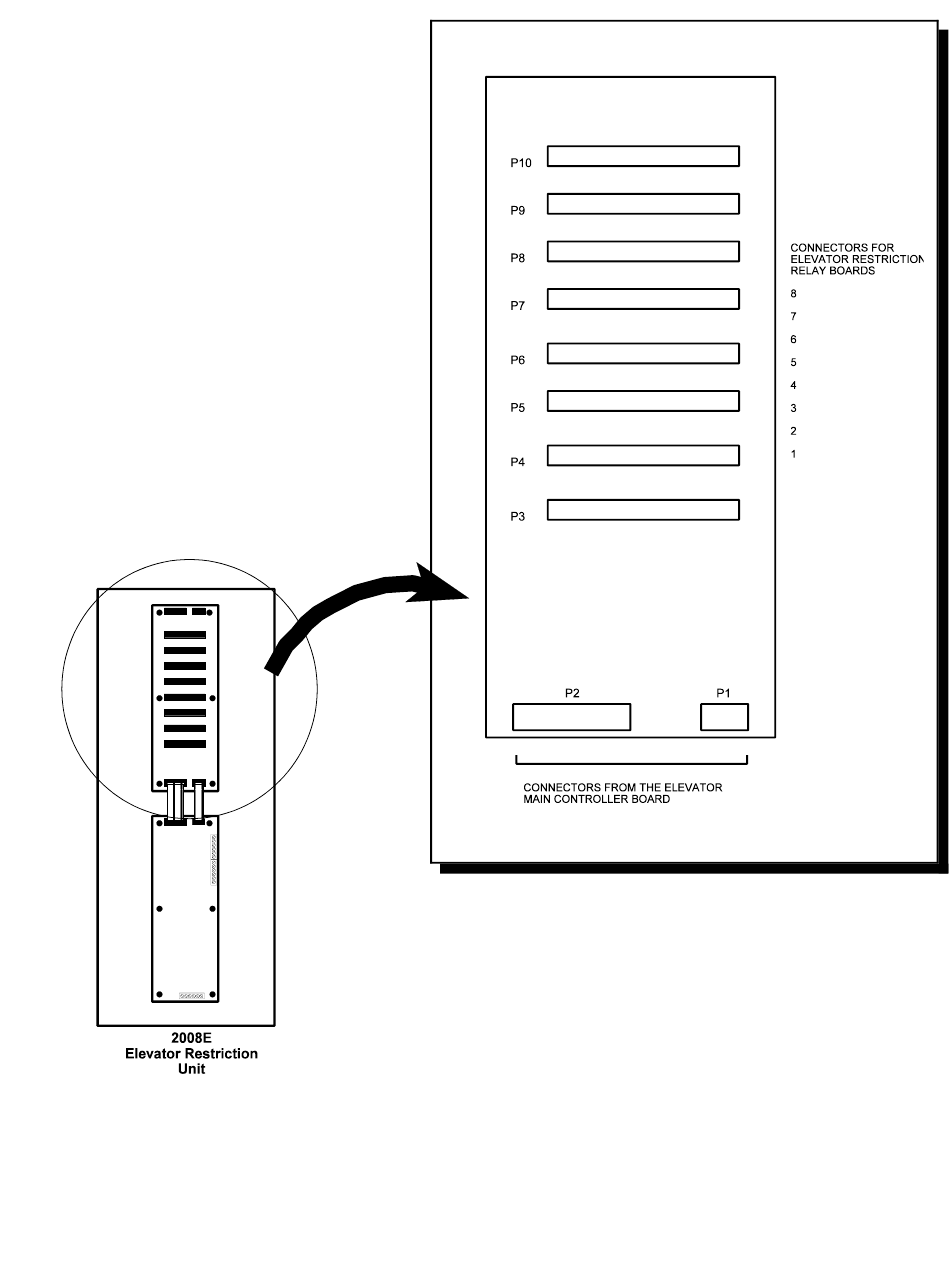

The 2008E Elevator Restriction Unit Backplane
Board has ribbon cables to connect to the
Elevator Main Controller Board and 2012E Relay
Board sockets. There can only be one Backplane
Board per 2008E Unit.
P1 & P2
Expansion from the Elevator
Restriction Main Controller
Board.
P3 to 10
Connectors for the Elevator
Restriction 2012E Relay Boards
(maximum eight relay boards per
backplane).
Page 41
