2008E ELEVATOR RESTRICTION UNIT WIRING

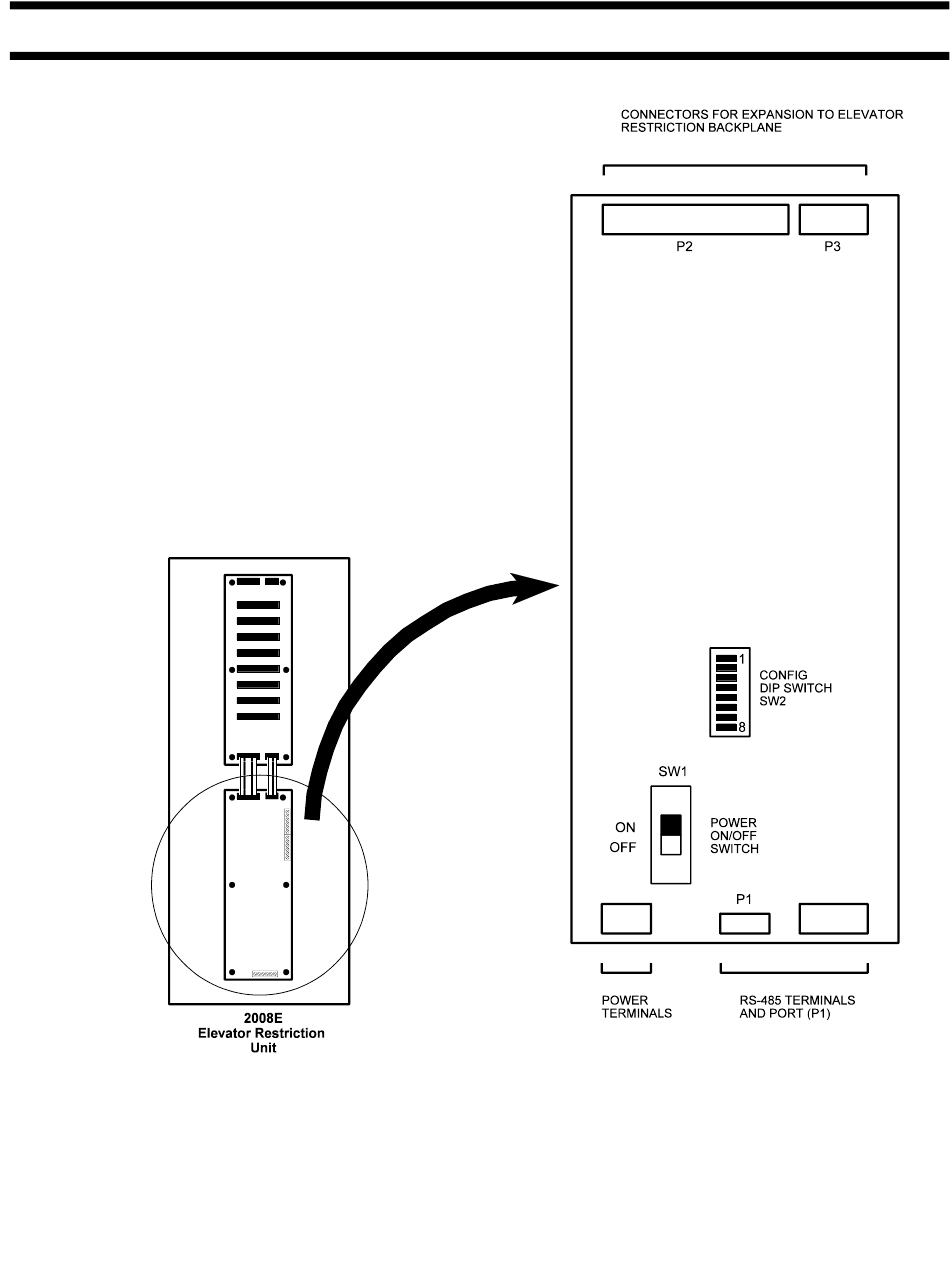

The 2008E Elevator Restriction Unit Controller Board has
both ribbon cable sockets for connection to the Backplane
Board.
P1 RS-485 Port for connection to an RS-
485IMA Interface Module.
P2 & P3 Expansion to the Elevator Restriction
Backplane.
SW1 Turns the Unit's Power on and off for
servicing, or to re-start the unit.
SW2 To set the Unit's ID.
(see Elevator Restriction Unit Configuration
)
Page 39
