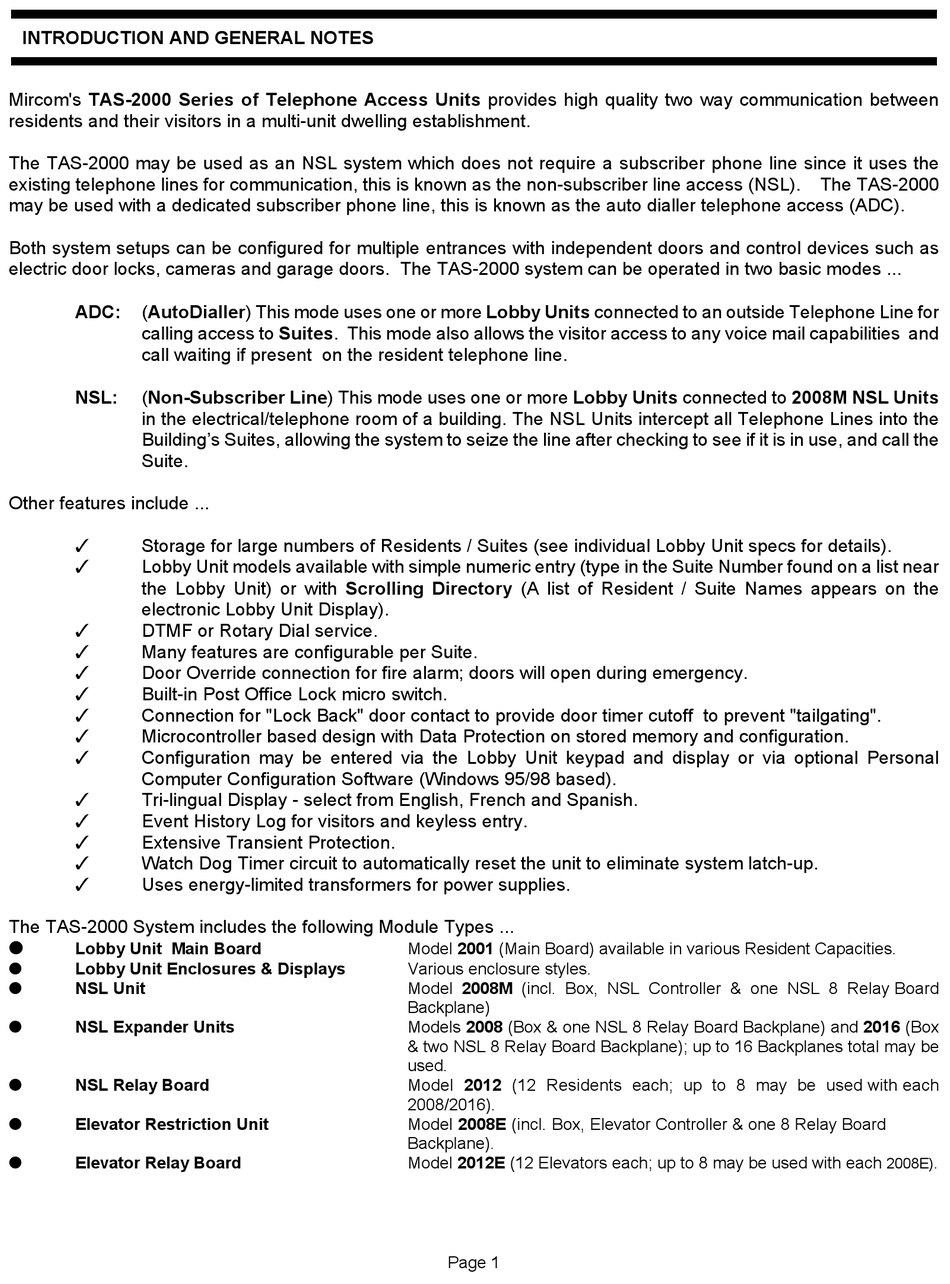

INTRODUCTION AND GENERAL NOTES

Mircom's TAS-2000 Series of Telephone Access Units provides high quality two way communication between
residents and their visitors in a multi-unit dwelling establishment.
The TAS-2000 may be used as an NSL system which does not require a subscriber phone line since it uses the
existing telephone lines for communication, this is known as the non-subscriber line access (NSL). The TAS-2000
may be used with a dedicated subscriber phone line, this is known as the auto dialler telephone access (ADC).
Both system setups can be configured for multiple entrances with independent doors and control devices such as
electric door locks, cameras and garage doors. The TAS-2000 system can be operated in two basic modes ...
ADC: (AutoDialler) This mode uses one or more Lobby Units connected to an outside Telephone Line for
calling access to Suites. This mode also allows the visitor access to any voice mail capabilities and
call waiting if present on the resident telephone line.
NSL: (Non-Subscriber Line) This mode uses one or more Lobby Units connected to 2008M NSL Units
in the electrical/telephone room of a building. The NSL Units intercept all Telephone Lines into the
Building's Suites, allowing the system to seize the line after checking to see if it is in use, and call the
Suite.
Other features include ...
Storage for large numbers of Residents / Suites (see individual Lobby Unit specs for details).
T
Lobby Unit models available with simple numeric entry (type in the Suite Number found on a list near
T
the Lobby Unit) or with Scrolling Directory (A list of Resident / Suite Names appears on the
electronic Lobby Unit Display).
DTMF or Rotary Dial service.
T
Many features are configurable per Suite.
T
Door Override connection for fire alarm; doors will open during emergency.
T
Built-in Post Office Lock micro switch.
T
Connection for "Lock Back" door contact to provide door timer cutoff to prevent "tailgating".
T
Microcontroller based design with Data Protection on stored memory and configuration.
T
Configuration may be entered via the Lobby Unit keypad and display or via optional Personal
T
Computer Configuration Software (Windows 95/98 based).
Tri-lingual Display - select from English, French and Spanish.
T
Event History Log for visitors and keyless entry.
T
Extensive Transient Protection.
T
Watch Dog Timer circuit to automatically reset the unit to eliminate system latch-up.
T
Uses energy-limited transformers for power supplies.
T
The TAS-2000 System includes the following Module Types ...
 Lobby Unit Main Board
Lobby Unit Enclosures & Displays

NSL Unit

NSL Expander Units

NSL Relay Board

Elevator Restriction Unit

Elevator Relay Board

Model 2001 (Main Board) available in various Resident Capacities.
Various enclosure styles.
Model 2008M (incl. Box, NSL Controller & one NSL 8 Relay Board
Backplane)
Models 2008 (Box & one NSL 8 Relay Board Backplane) and 2016 (Box
& two NSL 8 Relay Board Backplane); up to 16 Backplanes total may be
used.
Model 2012 (12 Residents each; up to 8 may be used with each
2008/2016).
Model 2008E (incl. Box, Elevator Controller & one 8 Relay Board
Backplane).
Model 2012E (12 Elevators each; up to 8 may be used with each
Page 1
2008E).
