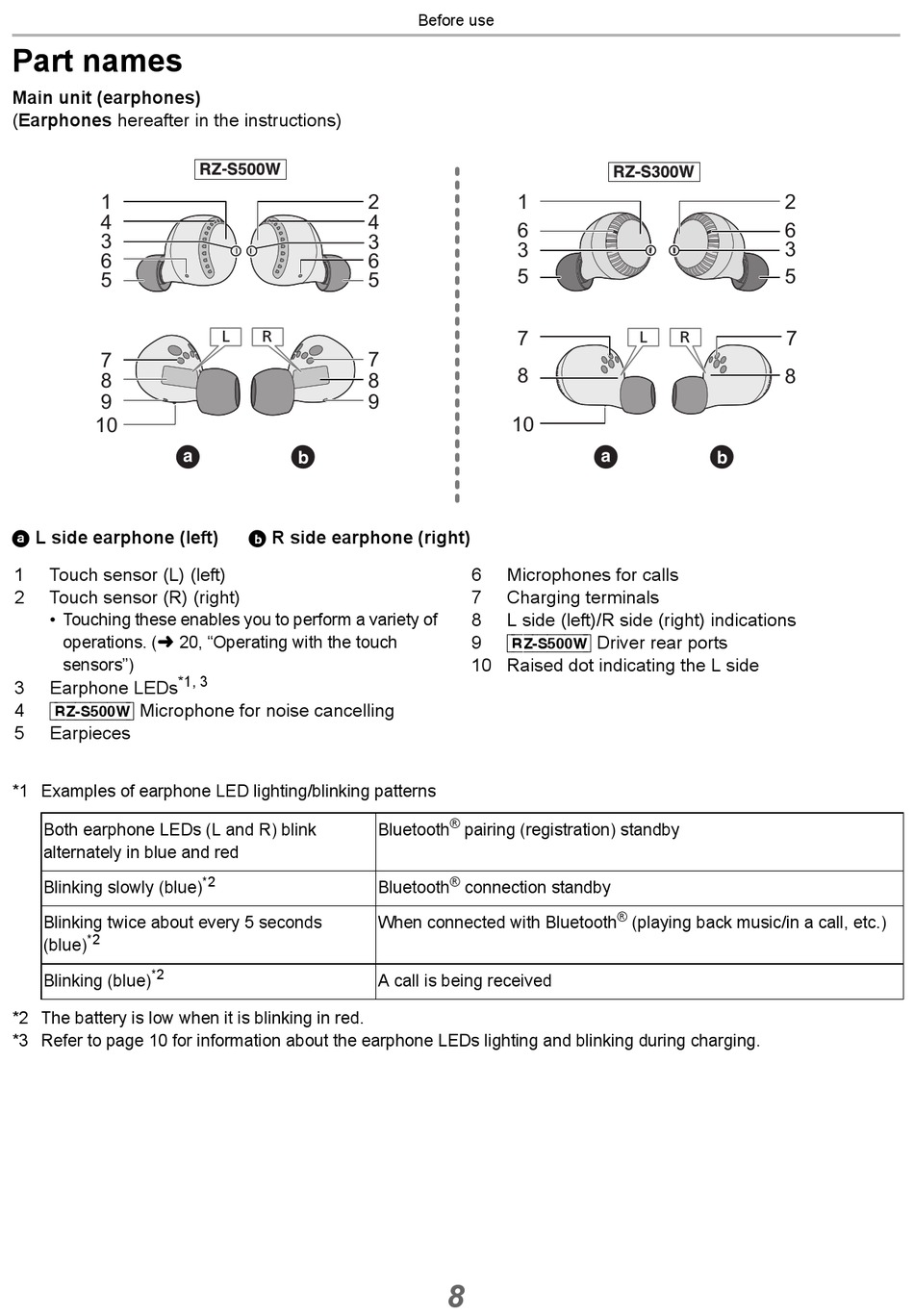

Part names

Main unit (earphones)
(Earphones hereafter in the instructions)
1
4
3
6
5
7
8
9
10

a L side earphone (left)
1 Touch sensor (L) (left)
2 Touch sensor (R) (right)
• Touching these enables you to perform a variety of
operations. ( l 20, "Operating with the touch
sensors")
*1, 3
3 Earphone LEDs
4 [RZ-S500W] Microphone for noise cancelling
5 Earpieces
*1 Examples of earphone LED lighting/blinking patterns
Both earphone LEDs (L and R) blink
alternately in blue and red
Blinking slowly (blue)
Blinking twice about every 5 seconds
*2
(blue)
*2
Blinking (blue)
*2 The battery is low when it is blinking in red.
*3 Refer to page 10 for information about the earphone LEDs lighting and blinking during charging.
2
4
3
6
5
L R
7
8
9

b R side earphone (right)
*2
Before use
1
6
3
5
7
8
10
6 Microphones for calls
7 Charging terminals
8 L side (left)/R side (right) indications
9 [RZ-S500W] Driver rear ports
10 Raised dot indicating the L side
®
Bluetooth pairing (registration) standby
®
Bluetooth connection standby
When connected with Bluetooth
A call is being received
8
L R
 
®
(playing back music/in a call, etc.)
2
6
3
5
7
8
