DigiMod 500 1000 1500 2000HV 1000NPS | SERVICE MANUAL
By means of the
DIGIMOD AMP AUX VOLTAGE
CABLE, connect a DC power supply and set the output voltage to ± 15Vdc.

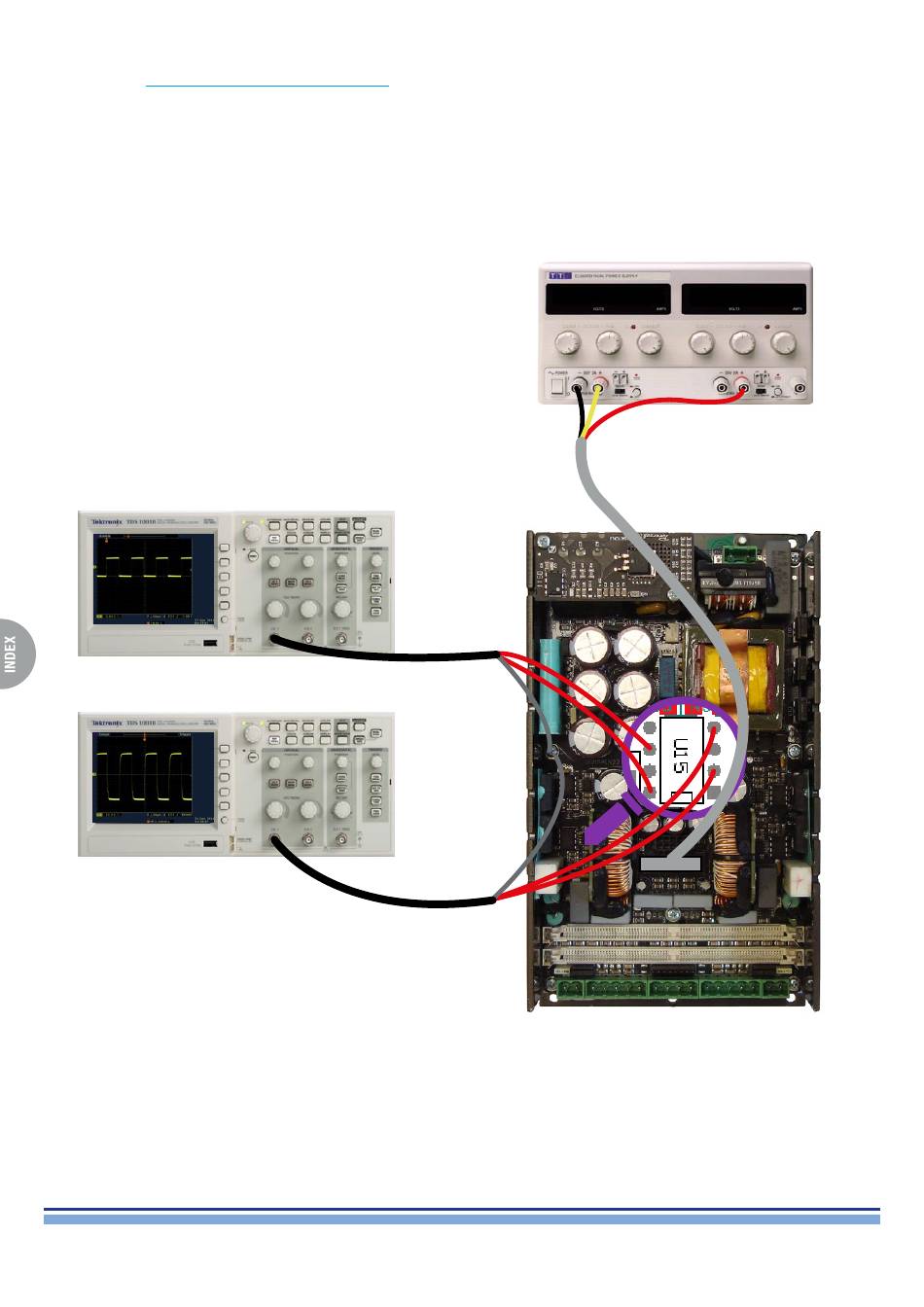

Check the shape of the waveforms by first probing on the 2, 4 pins of the U15 IC, then check the shape of the waveforms by probing
on pins 6, 8.
The waveforms should be shaped as portrayed in the figure below.
+15Vdc
-15Vdc
14
