7. DC Voltage Testing:

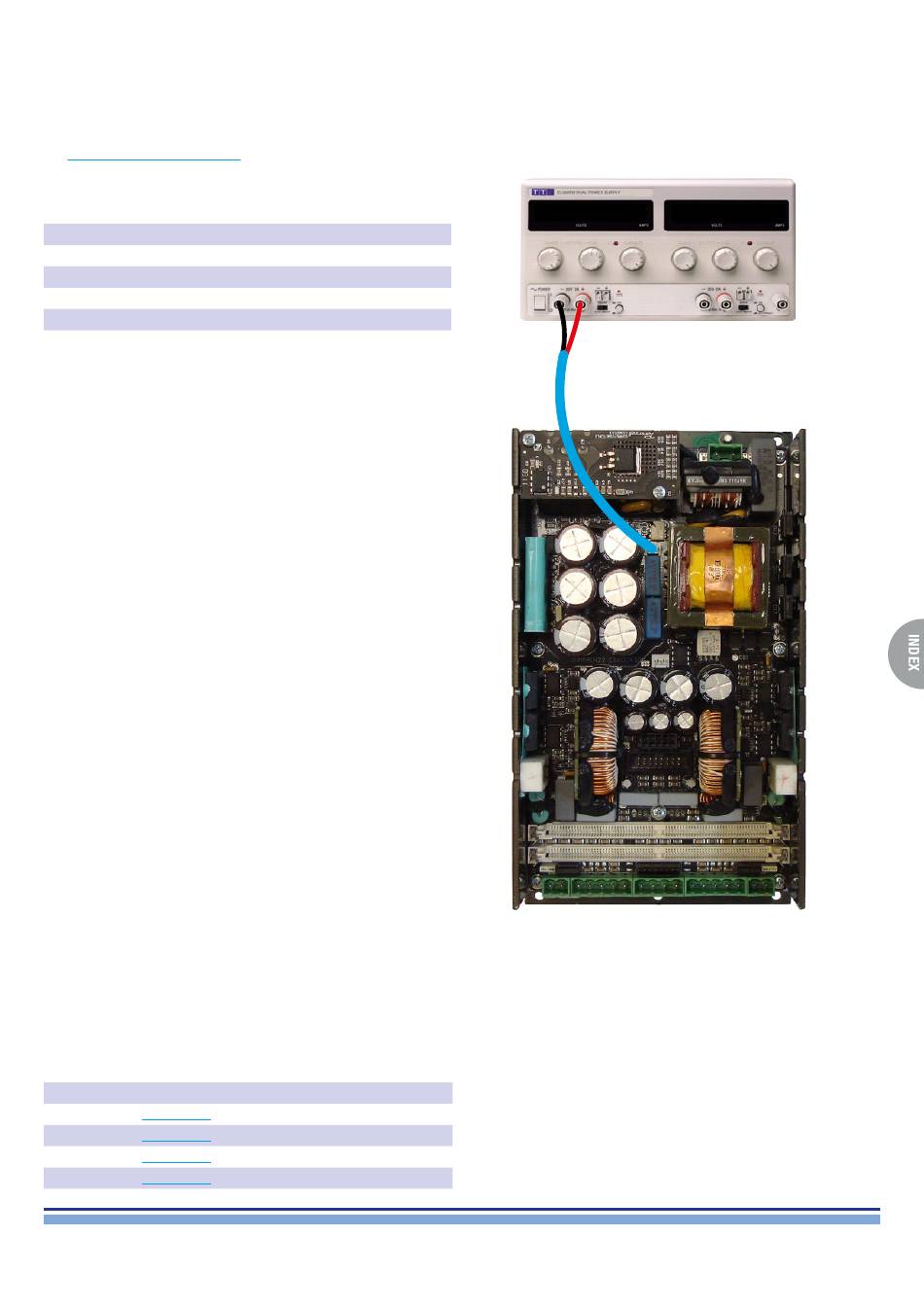

Connect a DC Power Supply to the CN4 connector by means of
the PSU AUX VOLTAGE CABLE. (Fig. 11)
Slowly increase the voltage to +18V, and verify the consumption, it
should be as stated in the following table.
Model
DigiMod 500
DigiMod 1000
DigiMod 1500
DigiMod 2000HV
In case of any faults in the aforementioned components, please refer
to the table below when ordering the Repair Kit.
Model Kit Number
DigiMod 500 KT000818.R
DigiMod 1000 KT000820.R
DigiMod 1500 KT000823.R
DigiMod 2000 KT000827.R
Consumption
20 mA ±10%
20 mA ±10%
20 mA ±10%
20 mA ±10%
Description
KIT DM500 PSU
KIT DM1000 PSU
KIT DM1500 PSU
KIT DM2000 PSU
DigiMod 500 1000 1500 2000HV 1000NPS | SERVICE MANUAL
18Vdc 20mA
(Fig. 11)
