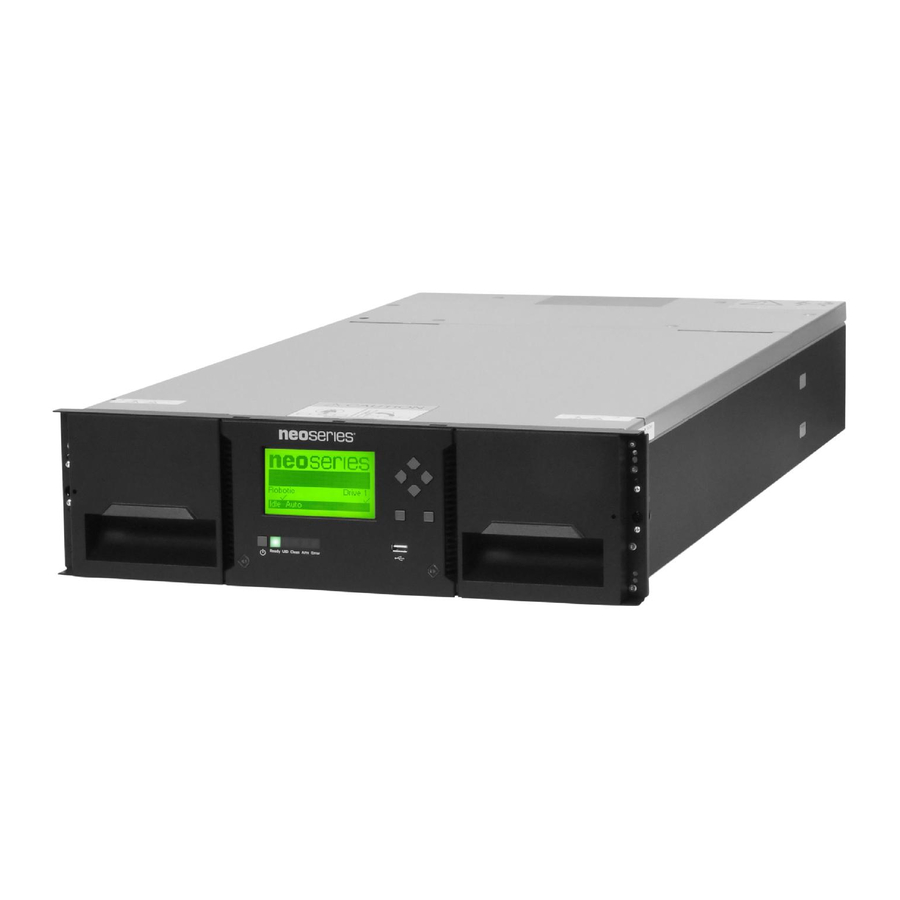

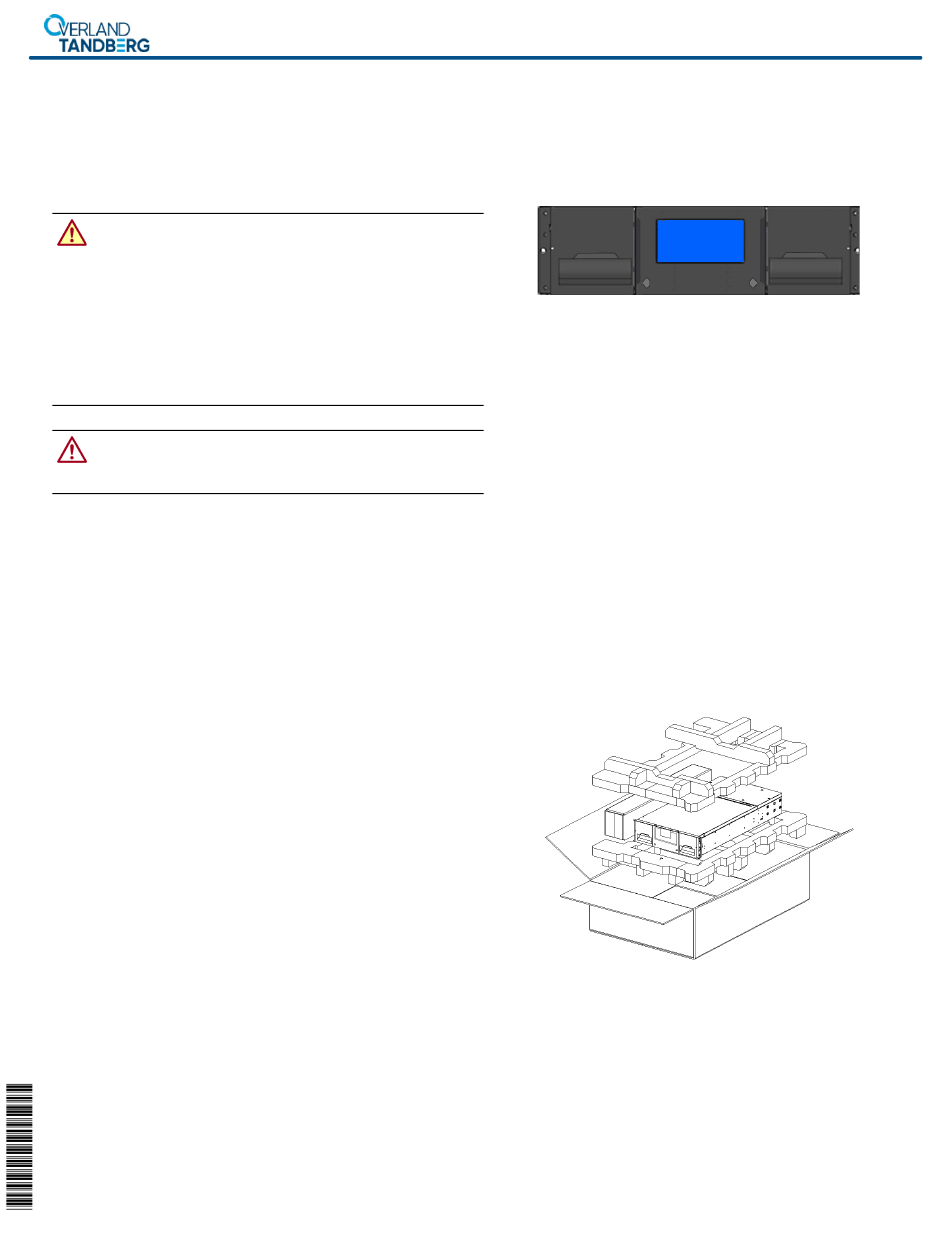

Spare Expansion Module Instructions
This document describes how to remove and replace a
Expansion Module in a NEOxl 40 3U Tape Library from
Overland-Tandberg.
WARNING:
To reduce the risk of electric shock or damage to
equipment, always remove any power cords while working with
the library.
WARNUNG:
Um das Risiko eines elektrischen Schlags oder
Schäden am Gerät zu vermeiden, ziehen Sie stets den
Netzstecker, bevor Sie an der Einheit arbeiten.
AVERTISSEMENT:
Pour réduire le risque de choc électrique
ou endommagement de l'équipement, retirez toujours les
cordons électriques en travaillant avec l'appareil.
CAUTION:
While working with the library, observe standard
Electrostatic Discharge (ESD) precautions to prevent damage
to micro-circuitry or static-sensitive devices.
Special Handling Notice
Each NEOxl 40 Expansion Module weighs more than 44 lbs
(20kg) without drives or tapes, and more than 77 lbs (35kg)
with three tape drives and 40 tapes.
Before moving or lifting the Expansion Module, remove all tape
drives and tapes to reduce the weight (see below).
Overview
To replace an existing Expansion Module, the steps include:
1. Remove the tape magazines and any tape drives.
2. Remove the old Expansion Module from the rack.
3. If necessary, transfer the top or bottom cover from the old
Expansion Module to the new one.
4. As needed, move power supplies, DC-DC board, and
controller from the old Expansion Module to the new one.
5. Install the new Expansion Module in the rack and align
the module with the library.
6. Reinstall tape magazines and drives into the new module.
7. Reconnect the cables and verify the installation.
You will need a small flat head or Torx screwdriver and a #2
Phillips screwdriver.
